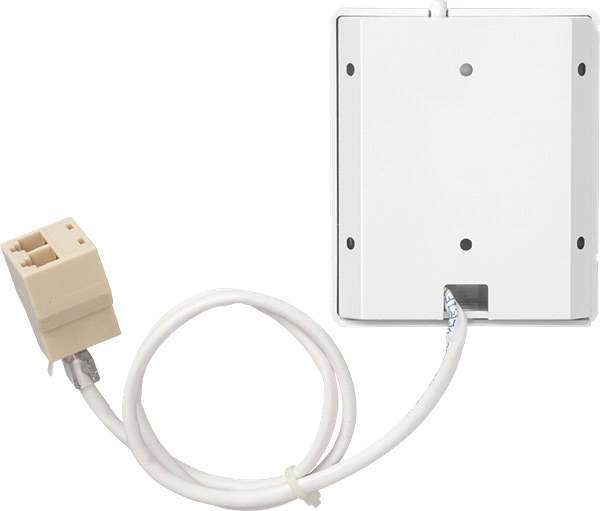

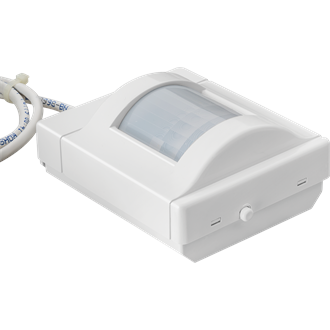

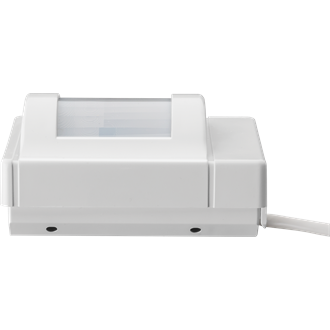

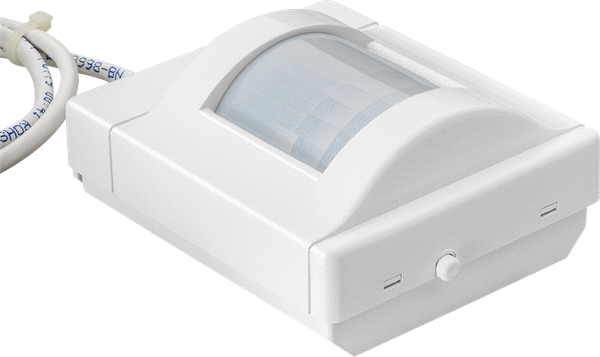

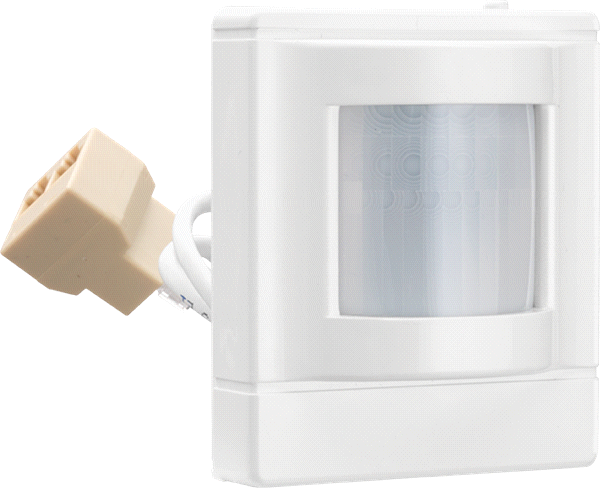

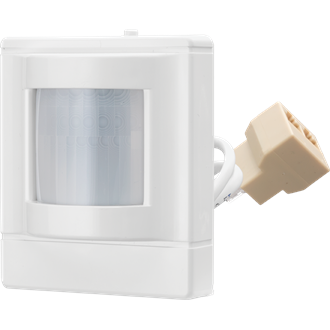

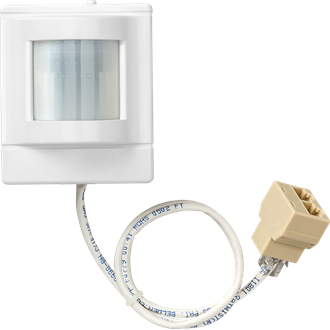

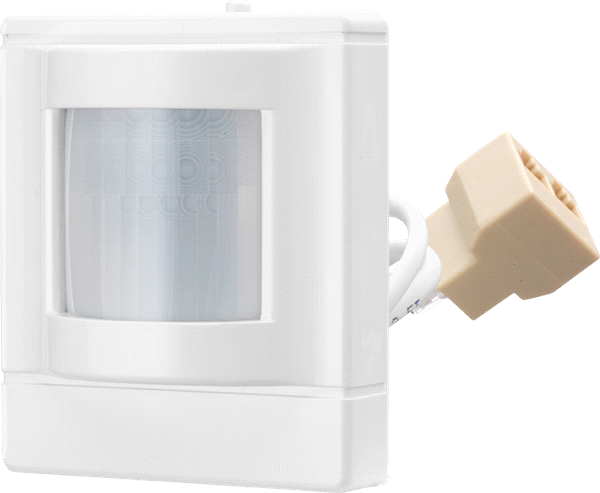

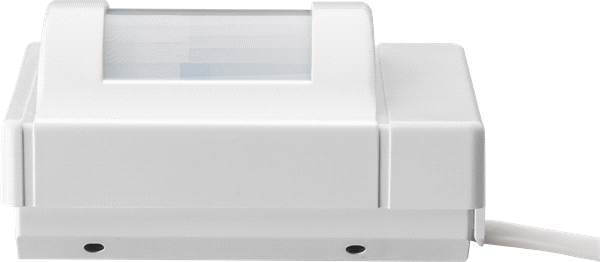

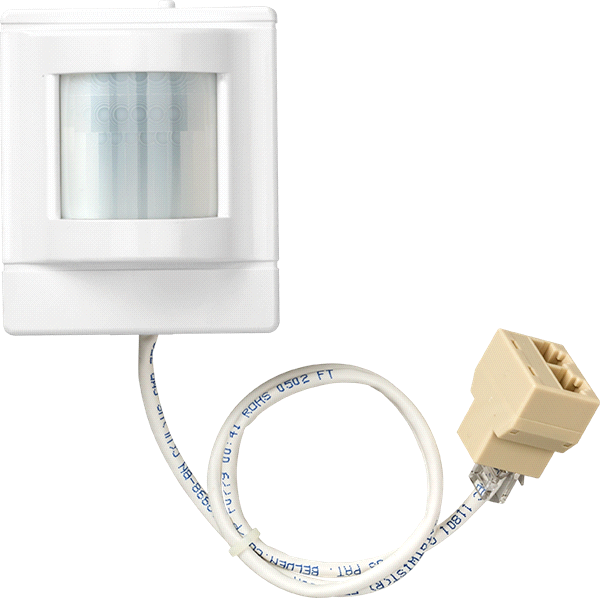

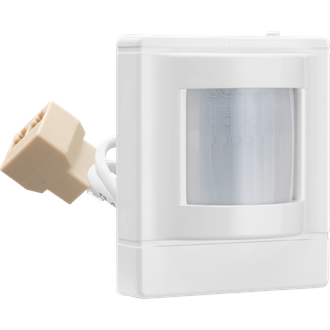

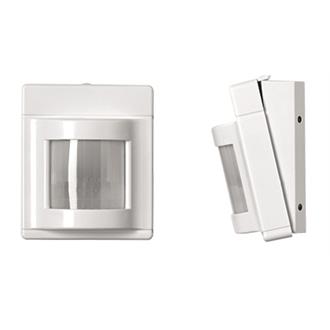

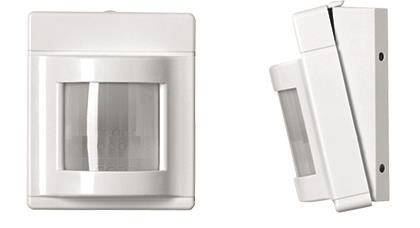

nHW 13

Hallway, Low Volt, PIR

The nLight nHW 13 Series occupancy sensor provides long narrow PIR detection for control of hallway lighting. Typically mounted at either end, these sensors detect occupants entering a hallway up to 130 ft away. Detection at this distance is for entrances at right angles to the beam pattern. Additionally, the nHW 13 may be used in combination with other nLight sensors to customize coverage for very long or irregularly shaped corridors. For example, an nCM 10 ceiling sensor may be in a entrance vestibule at one end of a hallway while the nHW 13 is at the other. The nHW 13 is best mounted at a 7 ft height.

PIR Occupancy Detection
Coverage up to 130 Linear Feet
Communicates w/ nLight Network
Remotely Configurable/Upgradeable
Push-Button Programmable
Programmable w/o removing cover
Adjustable Time Delay
100 Hr. Lamp Burn-in Timer Mode
Green LED Indicator

Specifications
Product overview and specifications
A+ Capable Yes
Application Type Education, Government, Healthcare, Hospitality, Manufacturing, Offices and Banks, Religious, Retail, Sports and Recreation, Warehouses
Brand Name nLight, Sensor Switch
Environment Indoor
Listings DLC Standard
Mounting Type Wall
Product Type Sensor
Series NHW
Spec Sheets
A summary of the performance and other technical characteristics of the product.
File Type Document Title View
nHW_13-Form_pdf View
Technical Files
Installation documents, building information models, etc.
File Type Document Title View
nhw13_dwg View
nhw13lt_dwg View
nhw13p_dwg View
nhw13plt_dwg View
nhw13-riser_dwg View
File Type Document Title View
IN-1_3_pdf View
nHW-13-Wiring_pdf View
