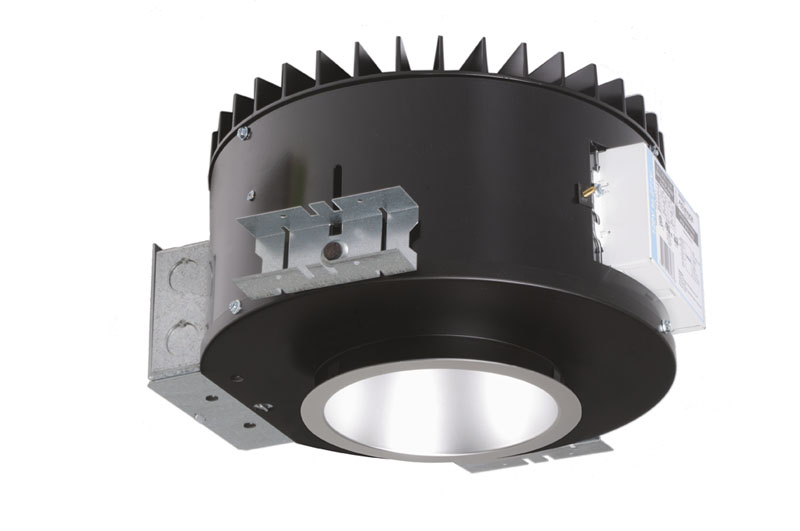

SD6 Housing

LED 6in Round Designer Series Housing

Indy™ Designer Series, SD6 6-inch round luminaires incorporate the very latest advancements in LED technology into a superior commercial downlight and wall washer. The advanced LED light engine produces uniform color with exceptional consistency from fixture-to-fixture. The unique, modular design permits easy light engine replacement for technology upgrades or color temperature changes. Producing up to 5,000 ultra-efficient lumens, these luminaires are among the highest performing luminaires available.

Specifications
Product overview and specifications
Aperture Size 6 IN
Brand Name Indy
Color Rendering Index 90, 80
Control Networkable Control
Correlated Color Temperature 2700 K, 4000 K, 3500 K, 3000 K
Environment Indoor
Light Source LED
Listings UL Wet Location, UL Damp Location, ROHS, ENERGY STAR®, cUL, Chicago Plenum
Lumen Output 5000 LM, 4000 LM, 3000 LM, 2000 LM, 1500 LM, 1100 LM
Product Type Housing
Series SD6
Shape Round
Voltage Rating 120, 120-277, 277, 347
Spec Sheets
A summary of the performance and other technical characteristics of the product.
File Type Document Title View
K13_1_1G5_pdf View
K13_1_3_01G5_pdf View
LED-DIM_pdf View
Technical Files
Installation documents, building information models, etc.
File Type Document Title View
065-1032_pdf View
065-740_pdf View
Resources
Download brochures, sell sheets, photometry files and other sales tools.
File Type Document Title View
Indy-Designer-Series-Gen-5-Brochure_pdf View
Product Configurator
Select a Series to create a catalog number
