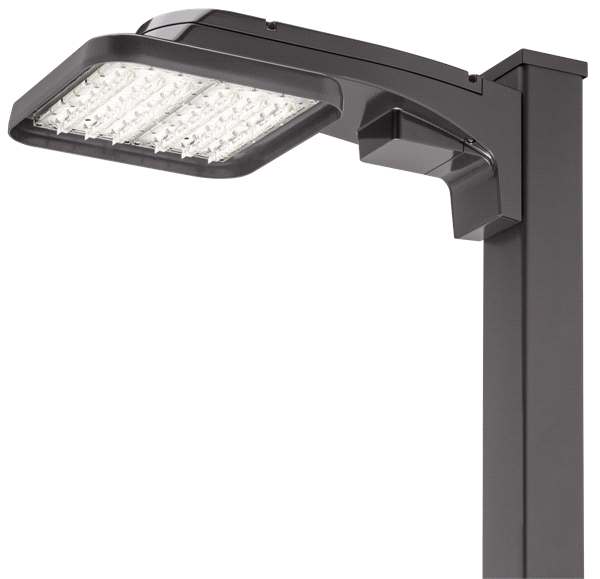

KAX1 Hero.png
KAX LED

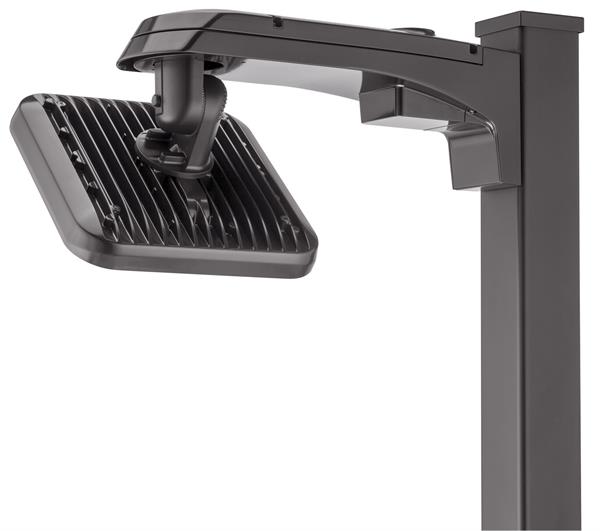

KAX1 knuckle tilted 90 degrees.jpg

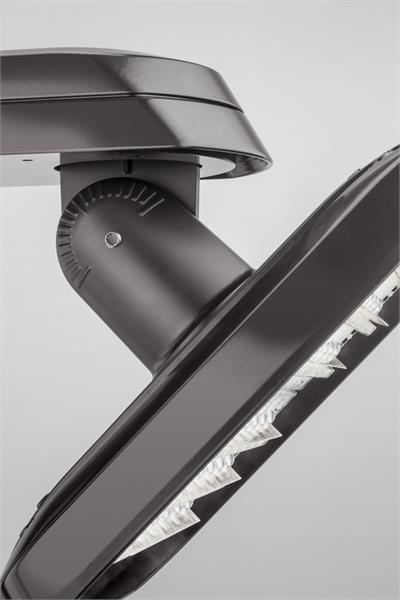

KAX1 knuckle highest angle.jpg

KAX1 Area Light

Area Luminaire LED Outdoor Size 1 Tilt Option Modular Design

By Lithonia Lighting

    DLC Standard
  • Overview
  • Specifications
The KAX LED family from Lithonia Lighting was designed with you in mind. Universal mounting comes standard so that installation can be completed in just a few steps, whether for a new construction or retrofit application. The optics are specifically designed to maximize light in the desired area and are particularly useful in small to medium sized parking lots or lots requiring higher illuminance levels such as restaurants, banks, service stations, corporate offices and strip malls. Optics can be aimed through the use of field-rotatable optics and optional tilt arm.

The KAX1 LED delivers up to 20,000 lumens which makes it ideal to replace up to 400W metal halide luminaires.

Read More
Read Less
Shape Rectangular
Light Source LED - Static
Lumens 6200 LM, 7200 LM, 8200 LM, 10,000 LM, 11,000 LM, 12,000 LM, 13,000 LM, 14,000 LM, 15,000 LM, 16,000 LM, 17,000 LM, 18,000 LM, 19,000 LM, 20,000 LM, 21,000 LM, 22,000 LM
CCT / LED Color 3000 K, 4000 K, 5000 K
CRI 70
Product Type Area Light
Compliance Listing DLC Standard, Nighttime Friendly
Environmental Listing IP66
Regulatory Listing CSA
Dimming Protocol 0-10V
Voltage Rating 120, 208, 240, 277, 347, 480, MVOLT
Color Black, Bronze, Gray, Green, Silver, White
Mounting Type Pole Mount
Series KAX1

Read More Read Less
