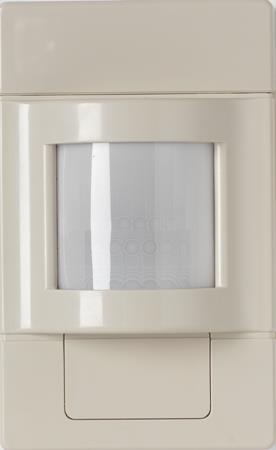

WVR Series

Wide View Corner Mount, Line Voltage Sensors

By SensorSwitch

    CA Title 24/JA8Buy America(n) Option Available
  • Overview
  • Specifications
The WVR Series sensors are a cost effective answer to retrofitting classrooms with inaccessible ceilings. Additionally, these self contained line voltage sensors do not require neutral, meaning the sensor can wire directly off local switches! Typical retrofits utilize wiremold coming out of a local switch up to the sensor's mounting location. In new construction, an electrical junction box can be located in the wall with the sensor wired to interrupt the feeds to the switches. The WVR Series sensors use Passive Infrared (PIR) detection technology. For rooms with obstructions the WVR PDT 16 Series is recommended. For two pole applications, the see the WVR 16 2P and WVR PDT 16 2P Series.
Read More
Read Less
Control Device Type Occupancy Sensor
Mounting Type Surface
Product Type Sensor
Color Ivory, White
Finish Gloss
Voltage Rating 347
Compliance Listing BAA, CA Title 24, ROHS
Regulatory Listing cUL, UL
Series WVR
Application Type Education, Government, Healthcare, Hospitality, House of Worship, Manufacturing, Offices & Banks, Retail, Sports and Recreation, Warehouses

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET WVR 16 WVR 16 Line Voltage, Wide View Corner/Wall Mount Occupancy Sensor Spec Sheet. View
    SPEC SHEET WVR 16_BAA.pdf WVR 16 BAA Line Voltage, Wide View Corner/Wall Mount Occupancy Sensor Spec Sheet. 1/10/2022 View
    SPEC SHEET WVR PDT 16 WVR PDT 16 Line Voltage, Wide View Dual Technology Corner/Wall Mount Occupancy Sensor Spec Sheet. View
  • Photometry & Revit (BIM)

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions IC16-001.pdf HWR 13 & LWS(H) Occupancy Sensor Programming/Instruction Sheet. View
  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Sell Sheet SensorSwitch BAA Flyer SensorSwitchâ„¢ Buy America(n) (BAA) product flyer 1/4/2023 View
