For streets, walkways, parking lots and surrounding areas.

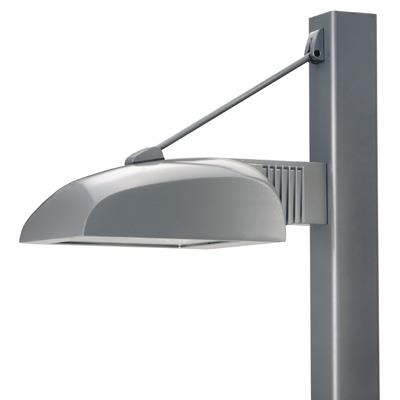

Housing: Die-cast single-piece aluminum with nominal 1/8" wall thickness. Integral arm provides easy installation to pole or wall. Housing completely sealed against moisture or environmental contaminants.
Door Assembly: Die-cast door frame, impact-resistant, tempered, glass lens, 3/16" thick, fully sealed with one-piece tubular silicone gasket. Tool-less entry and closure via spring-loaded die-cast latches.
Finish: Standard finish is dark bronze (DDB) corrosion-resistant polyester powder finish. Other architectural colors available.
Anodized segmented reflectors for superior uniformity and control. Reflectors attach with tool-less fasteners and are rotatable and interchangeable.
Friendly™ - Aeris™ die-cast housing, dedicated optical platform,
aesthetically pleasing tension rod assembly, 2 housing sizes, flat lens, 400W max.
House-side shield available in SR2, SR3 and SR4W.
150W and below utilize a high reactance, high power factor. 175W and above use a constant-wattage autotransformer ballast. Compact fluorescent uses an electronic high frequency ballast. Ballasts mounted on removable power tray with tool-less latch and have positive locking disconnect plugs. Ballasts are copper wound and 100% factory tested.
Socket: Porcelain, medium-base socket for AST1, mogul-base socket for AST2 , with copper alloy nickel-plated screw shell and center contact. Fluorescent is four-pin positive latching thermoplastic. UL Listed.
Suggested Replacement Products
Photometry & BIM
Request BIM Files
|Color||Beige, Black, Bronze, Gray, Green, Silver, White|
|Correlated Color Temperature||2000 K, 2100 K, 3500 K, 4000 K|
|Light Source||Compact Fluorescent, HID - High Pressure Sodium, HID - Metal Halide|
|Lumen Output||2700 LM, 5600 LM, 6000 LM, 9500 LM, 14,000 LM, 27,500 LM, 28,000 LM, 45,000 LM|
|Mounting Type||Not Applicable, Pole Mount|
|Product Type||Area Light|
|Voltage Rating||120, 208, 240, 277, 347, 480, MVOLT|
