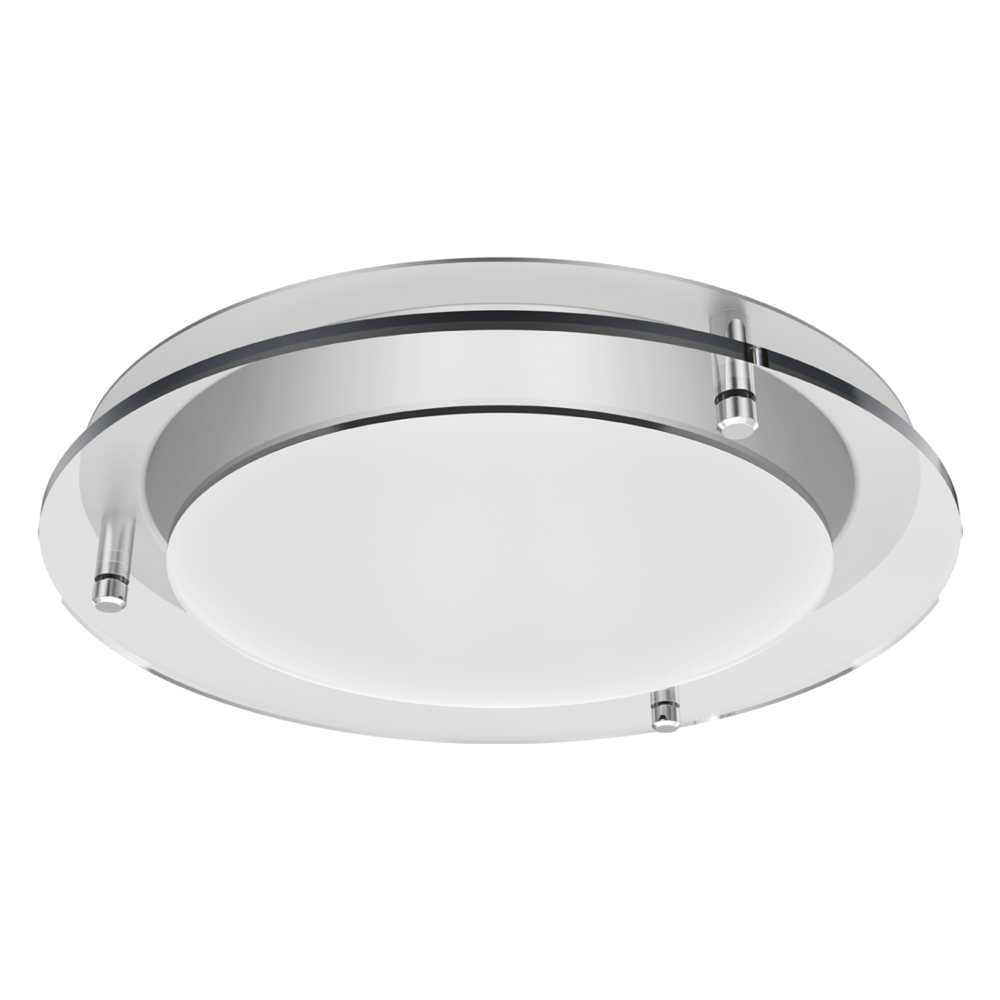

EVO® 8" Round Decorative
- Overview
- Specifications

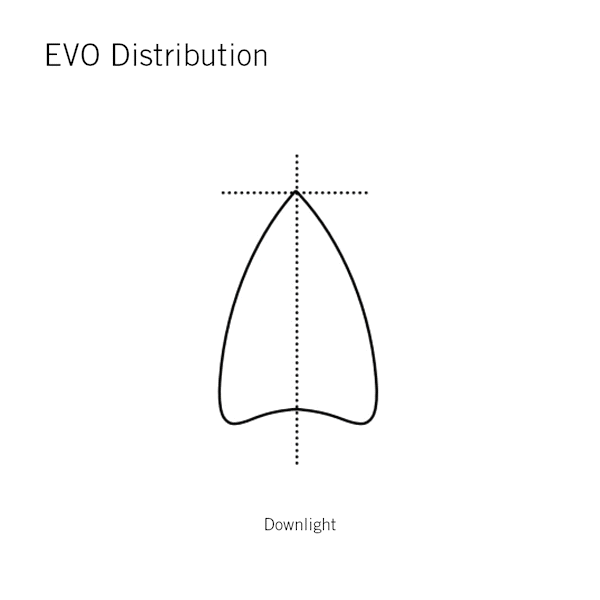

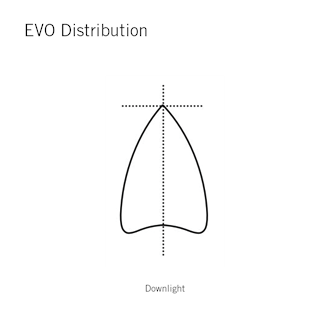

EVO® batwing distribution provides a uniform, wide angled general illumination on horizontal and vertical surfaces to create smooth edges and an even layer of light without hot spots or rings.
- Cutoff: 45°
- Functions: Open downlight
- Beam angles: Medium wide

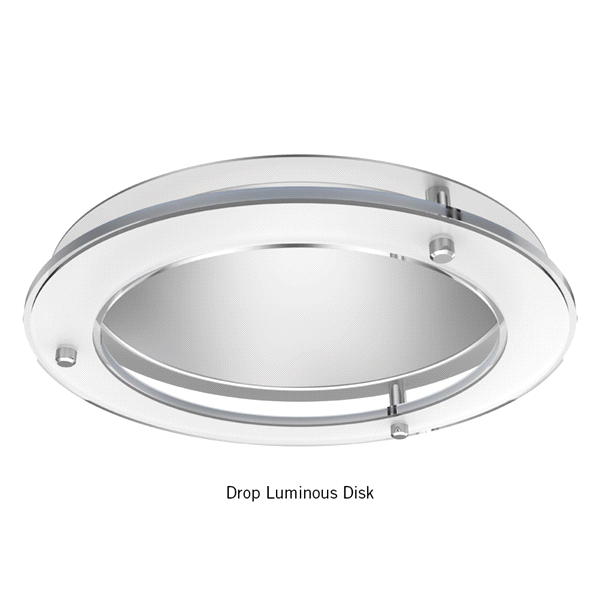

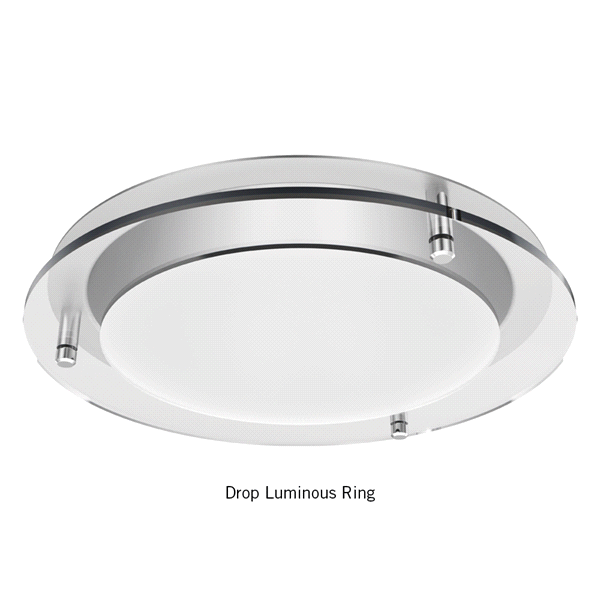

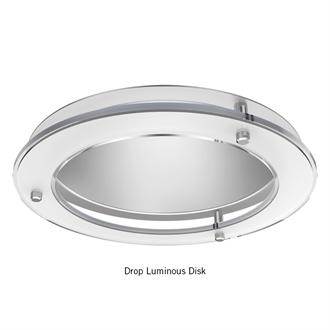

- Trim options: Drop luminous disk or drop luminous ring
Our high-performing downlights provide the quality of light needed to create multiple layers of light within a space.
- Bounding Ray™ technology eliminates flash for superior glare control
- Lumens: 2,000-3,000 LM
- Listings: CSA, Wet Location
- Driver capabilities: Up to 10 different driver options from 0-10v to DMX
- Controls: nLight® wired and wireless lighting controls
- Emergency Battery Backup
For wherever you specify downlights, we offer an ample array of installation options, trims, sizes, and colors allowing for a complete custom design.
- Reflector finishes: Semi-specular, matte diffuse, specular
- Ceiling types: Metal, wood, drywall, suspended grid ceilings
| Aperture Size | 8 IN |
| Shape | Round |
| Light Source | LED - Static |
| Lumens | 2000 LM, 2500 LM, 3000 LM |
| CCT / LED Color | 2700 K, 3000 K, 3500 K, 4000 K |
| CRI | 85, 90 |
| Product Type | Downlight |
| Compliance Listing | BAA |
| Environmental Listing | Wet Location |
| Regulatory Listing | CSA |
| Dimming Protocol | 0-10V, DALI, Digital, DMX, Forward Phase |
| Voltage Rating | 120, 277, 347 |
| Trim Style | Decorative |
| Color | Black, Clear, Gold, Pewter, Wheat, White |
| Mounting Type | Recessed |
| Special Applications | Decorative, Education, Government, Hospitality, House of Worship, Offices & Banks, Residential, Retail |
| Function | Downlight |
| Product Series | EVO |
| Series | EVO8DLR, EVO8DLD |
