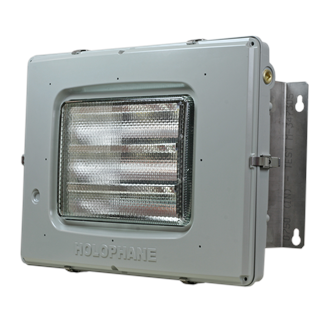

Lighting systems intended for tunnels must include a robust mechanical design and materials capable of withstanding the challenges of a harsh environment and vibration over time. The TunnelPass LED tunnel light family excels at this while also providing the best lighting performance and controls solutions in the industry. With two models to choose from, you now have a reliable state-of-the-art tunnel lighting solution available to you for virtually any tunnel or underpass application.
VITAL STATISTICS
- LED tunnel light to replace 70-1,000W HPS
- Lumen packages from 6,000 to 58,000 lumens
- 20kV/10kA “Extreme” surge protection
- AS, AH and IAH voltages
- 3000K, 4000K and 5000K CCT and 70 CRI
- L70 LED and driver life greater than 100,000 hours
- 3G rated construction stands up to vibration
- IP66 design with up to 50° C testing
- UL and CUL listed
- Listed on the DLC® QPL
KEY BENEFITS
- Energy and maintenance savings of up to 50% over HPS can be expected
- Borosilicate prismatic glass refractor for durability, permanence and visual comfort
- Multiple lighting distributions including ceiling counterbeam, long and narrow and wall mount crossbeam, as well as a special underpass distribution in the TNLEDMED only
- Control options available with integral NYX HEMERA control modules
- 3000K, 4000K and 5000K CCT and 70 CRI provide visual clarity and comfort
- L70 LED and driver life greater than 100,000 hours
- Adjustable tilt mounting bracket (up to 45 degrees) for application flexibility
- Industry-leading control options include integral NYX HEMERA control modules
- Removable door and pre-wired three-stage terminal block to simplify installation and maintenance
- Through-wire raceway option for installations requiring continuous straight wiring installation
- Nylon isolation washers to mitigate mounting corrosion

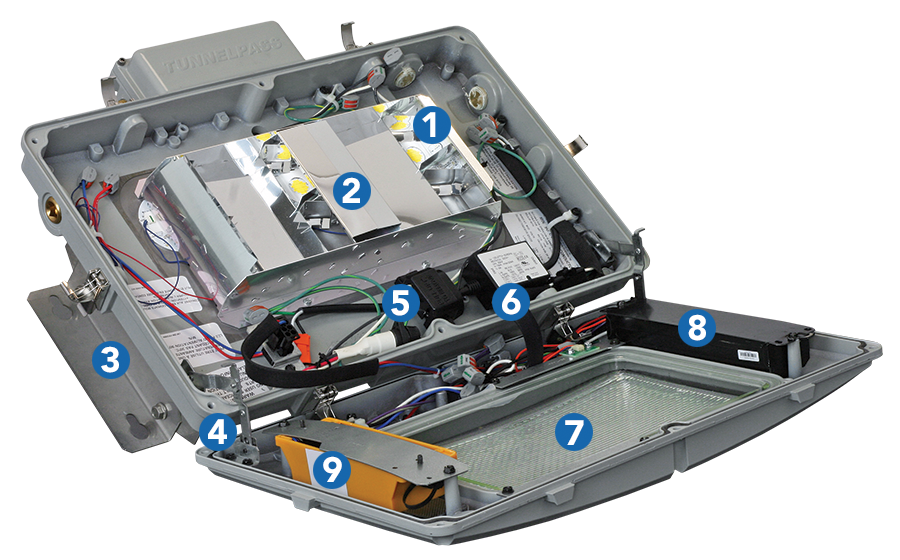

Product Features
- Modular high density LED engine for high lumens per watt and low energy costs
- High-performance segmented reflector system
- Adjustable-tilt mounting bracket preset at factory
- Hinged removable door with stainless steel latches
- Three-stage terminal block
- 20kV/10kA surge protection
- Durable Borosilicate glass refractor
- Up to 3 drivers
- Integral control options include NYX HEMERA modules

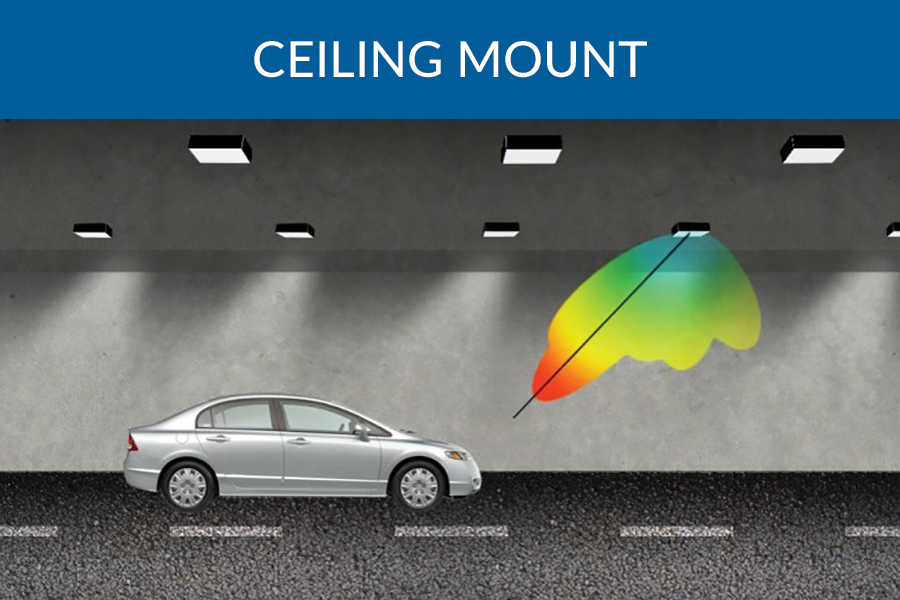

Ceiling mount counterbeam (CCB)
Recommended for divided tunnels where majority of lumens is directed towards oncoming drivers to maximize roadway luminance while controlling disability glare.
Recommended for divided tunnels where majority of lumens is directed towards oncoming drivers to maximize roadway luminance while controlling disability glare.

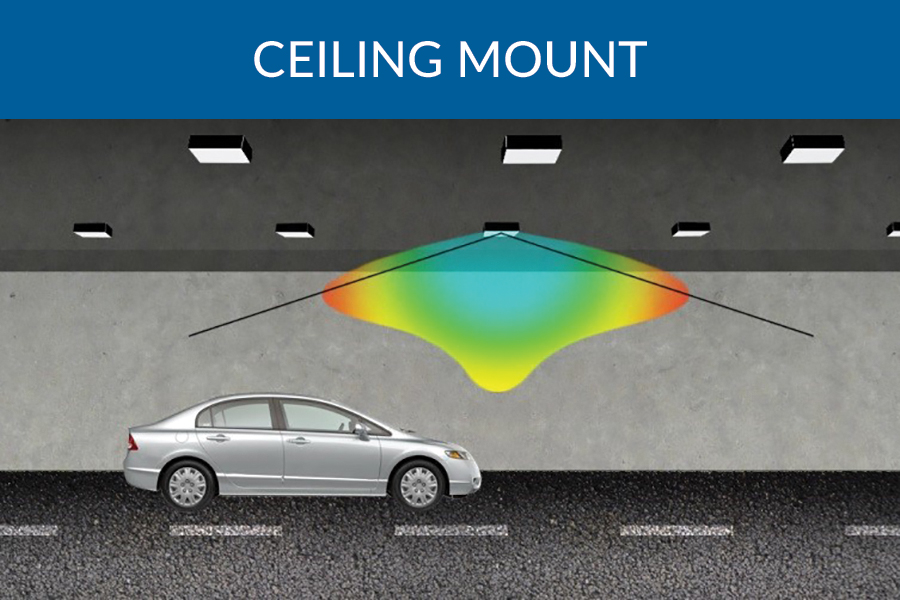

Ceiling mount long and narrow (CLN)
Recommended for undivided tunnels where equal lumens are with and against traffic flow.
Recommended for undivided tunnels where equal lumens are with and against traffic flow.
Wall mount crossbeam (WCR)
Recommended for undivided tunnels where equal lumens are with and against traffic flow.
Wall mount underpass (UDP)
Recommended for underpass applications where illuminance is required IES type 4 distribution.
Recommended for undivided tunnels where equal lumens are with and against traffic flow.
Wall mount underpass (UDP)
Recommended for underpass applications where illuminance is required IES type 4 distribution.
