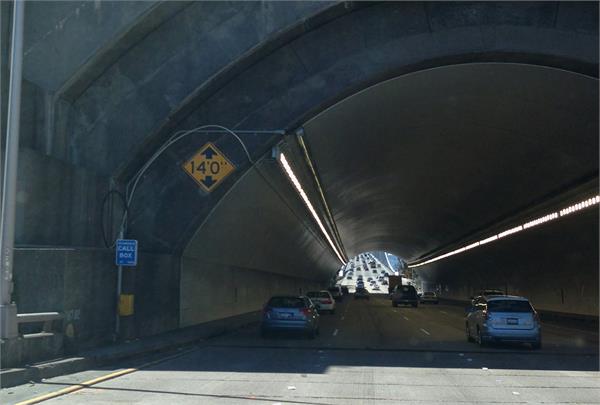

bay bridge 8 26 13 008 H.jpg

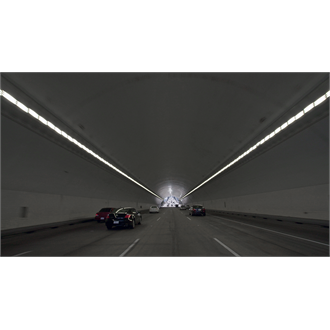

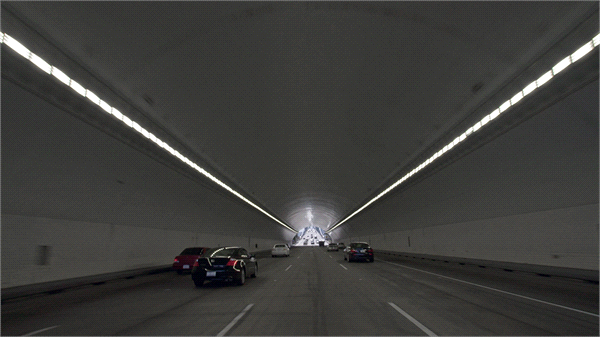

HLP_TunnelPassLED - Bay Bridge Tunnel 10.png
EDITED IMG_7035.jpg

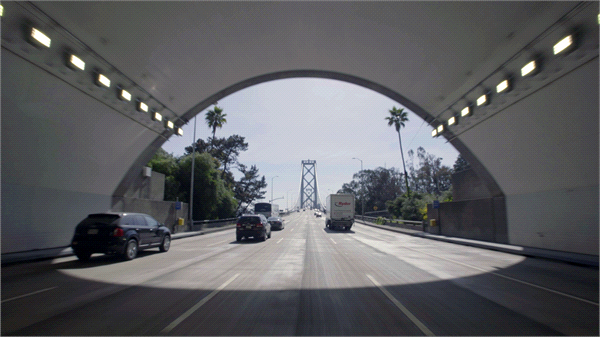

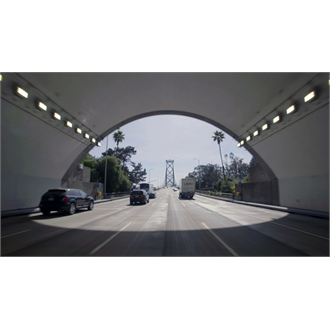

HLP_TunnelPassLED - Bay Bridge Tunnel 12.png

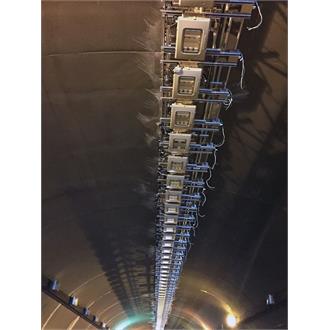

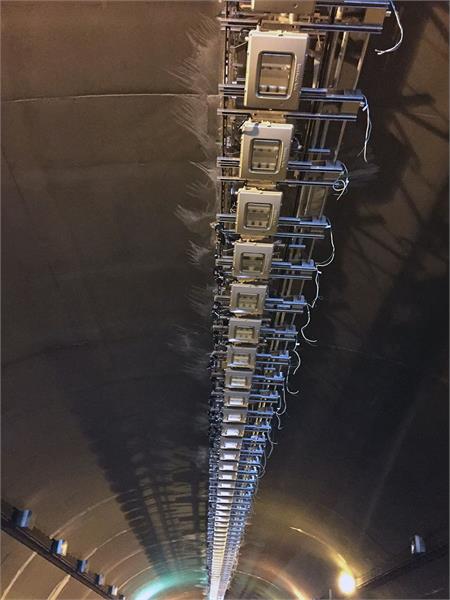

Queen Creek Tunnel 114_Installation_After.JPG

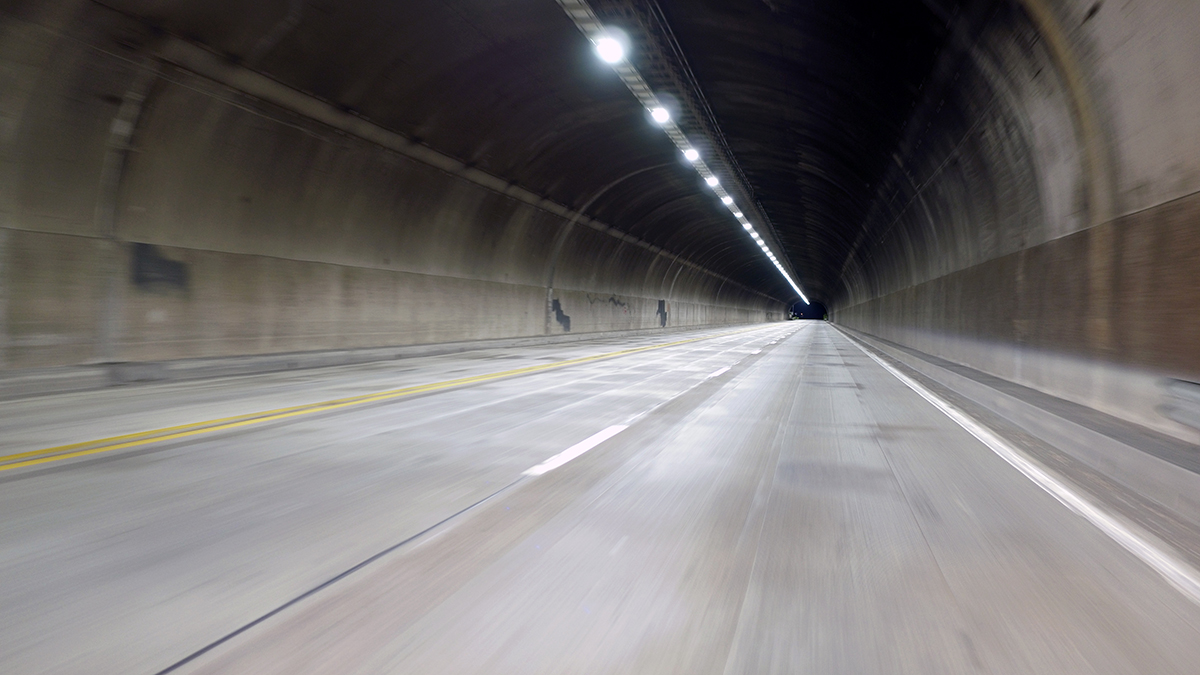

TunnelPass LED

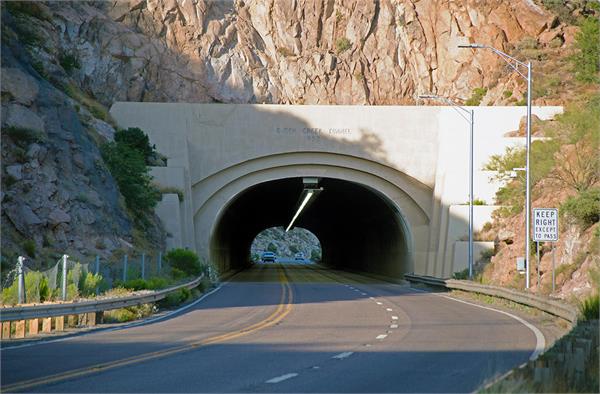

Arizona Tunnel light

TNLED2 Tunnel

TunnelPass LED™ Large Tunnel Light

By Holophane

    DLC StandardBuy America(n) Option Available
  • Overview
  • Specifications

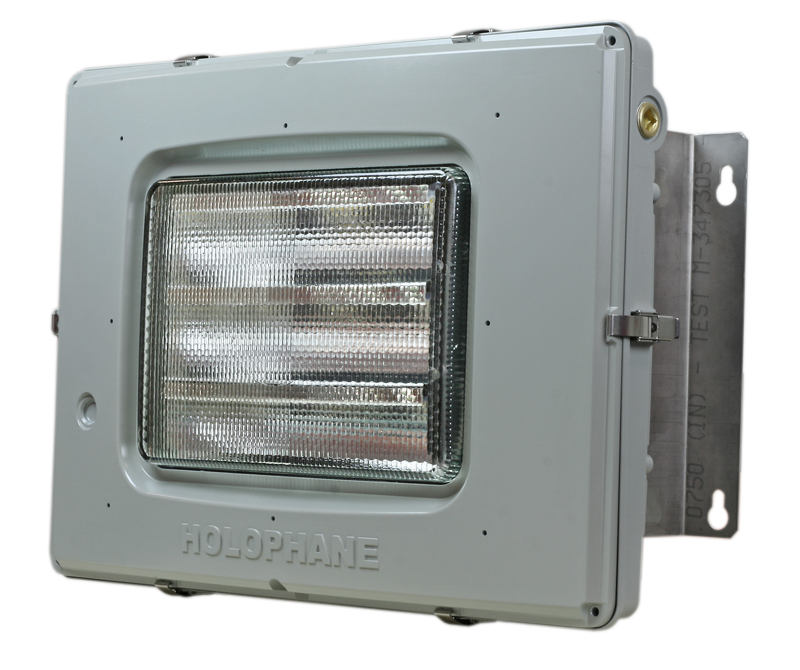

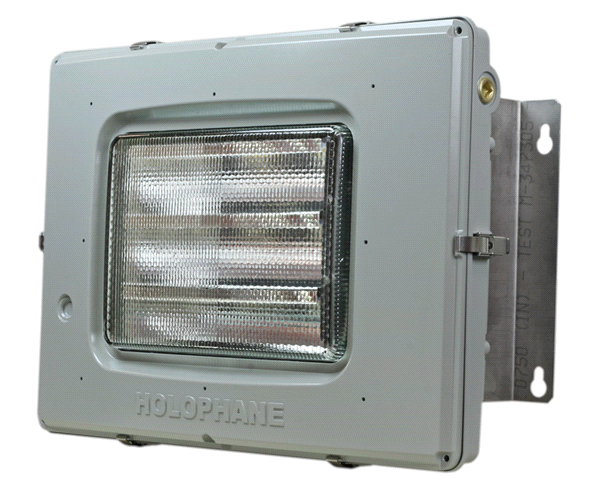

The TunnelPass LED™ is suitable for use in all tunnel and underpass areas for roadway and railroad applications. TNLED2 utilizes robust design with an IP66 rating, low copper 360 alloy castings, 3G vibration rating, and a paint finish designed to meet a 5000 hour salt fog rating. Features borosilicate prismatic glass lens for durability, permanence, and glare control and multiple lighting distributions to include ceiling counterbeam, long and narrow, and wall mount crossbeam. Universal design of TNLED2 can be applied to either wall or ceiling mount underpass or tunnel lighting applications with lumen packages to replace up to 1,000 watt HPS. The product ships complete with mounting brackets attached to aid in the installation of the product by one installer. Differentiating features include a removable power door to simplify and expedite installation, maintenance or future upgrades. Available with integral Nyx Hemera control module. DALI drivers also available. Consult with your Holophane sales rep to define details.
Read More
Read Less
Light Source LED - Static
Lumens 24,000 LM, 25,000 LM, 26,000 LM, 27,000 LM, 28,000 LM, 29,000 LM, 30,000 LM, 31,000 LM, 32,000 LM, 33,000 LM, 34,000 LM, 35,000 LM, 36,000 LM, 37,000 LM, 38,000 LM, 39,000 LM, 40,000 LM, 41,000 LM, 42,000 LM, 43,000 LM, 44,000 LM, 45,000 LM, 46,000 LM, 47,000 LM, 48,000 LM, 50,000 LM, 52,000 LM, 53,000 LM, 54,000 LM, 55,000 LM, 56,000 LM, 57,000 LM, 58,000 LM, 59,000 LM, 60,000 LM
CCT / LED Color 3000 K, 4000 K, 5000 K
CRI 70
Compliance Listing BAA, DLC Standard
Environmental Listing IP66, Wet Location
Regulatory Listing C-UL-US
Product Type Tunnel Light
Dimming Protocol 0-10V
Voltage Rating 120-277, 277-480, 347/480, HVOLT, MVOLT, XVOLT
Mounting Type Surface
Primary Material Aluminum
Architectural Style Traditional
Series TNLED2

Read More Read Less
