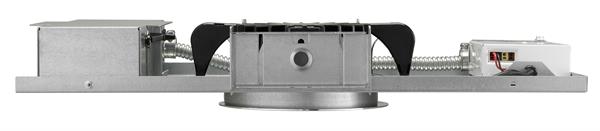

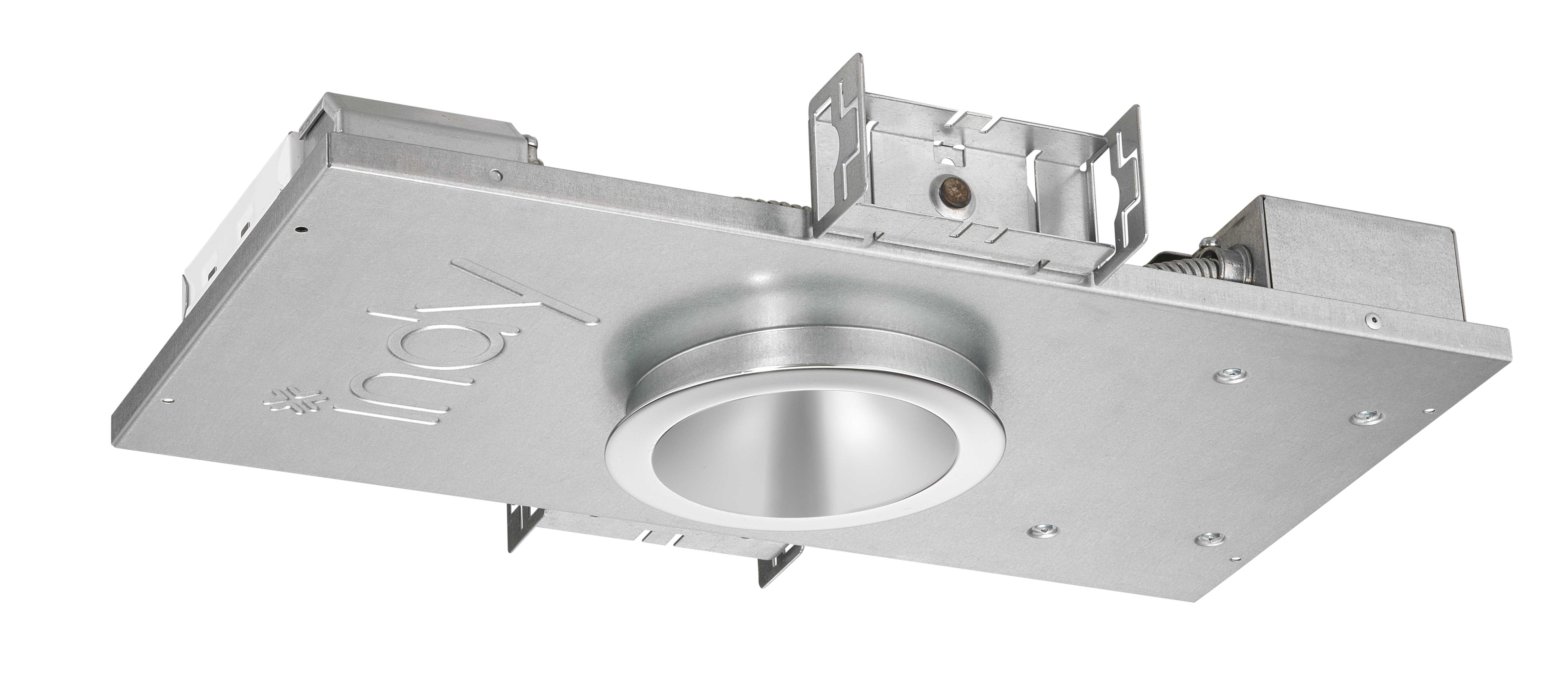

LLP4 Housing

LED 4in Round New Construction L-Series Low Profile

By Indy

    Buy America(n)
  • Overview
  • Specifications
Indy™ LLP4 low profile recessed LED luminaires are ideal for use in ceilings with shallow plenum (as little as 2” clearance) or obstructions. While these 4-inch, new-construction LED downlights and wall washers are small in stature, they provide uncompromised quality and performance on par with traditional L-Series fixtures. Optional innovative features include patented hyperbolic reflectors. The LLP4 is part of the latest generation of Indy™ L-Series, offering a fully coordinated family of commercial-grade luminaires.
Read More
Read Less
Size 4 IN
Shape Round
Light Source LED - Static
Lumens 800 LM, 1300 LM, 1500 LM, 1700 LM, 2300 LM, 2800 LM, 3300 LM, 4000 LM, 4500 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
CRI 80, 90, 97
Product Type Housing
Compliance Listing BAA, Chicago Plenum, ROHS
Environmental Listing Damp Location, Wet Location
Dimming Protocol 0-10V, DALI, Forward Phase, Forward Phase 2W, Reverse Phase
Fixture Wattage 10.1, 10.3, 10.6, 10.7, 10.9, 11, 11.1, 11.2, 11.4, 11.6, 11.7, 11.8, 11.9, 12, 12.1, 12.3, 12.5, 12.7, 12.8, 12.9, 13, 13.1, 14, 14.1, 14.4, 14.5, 14.6, 14.7, 15, 15.2, 15.3, 15.4, 15.5, 15.6, 15.8, 15.9, 16, 16.1, 16.2, 16.3, 16.4, 16.5, 16.6, 16.9, 17, 17.1, 17.2, 17.3, 17.4, 17.5, 17.6, 17.9, 18, 18.1, 18.2, 18.4, 18.5, 18.8, 18.9, 19, 19.3, 19.5, 19.6, 29.8, 30, 19.7, 19.9, 20.1, 20.4, 20.8, 21, 21.1, 21.5, 21.6, 21.8, 22, 22.1, 22.2, 22.4, 22.6, 23.1, 23.7, 23.9, 24, 24.5, 24.6, 25, 25.3, 25.4, 25.5, 25.6, 25.7, 25.8, 25.9, 26.1, 26.2, 40, 40.1, 40.3, 40.4, 40.9, 41, 41.1, 41.2, 41.3, 41.8, 42, 42.4, 42.5, 42.7, 42.8, 43.1, 43.5, 43.6, 43.8, 43.9, 44.1, 44.4, 44.5, 44.7, 6.02, 6.61, 6.63, 7.12, 7.19, 7.43, 7.6, 7.64, 7.73, 8, 8.12, 8.2, 8.42, 8.49, 9.18, 9.38, 9.43, 9.52, 9.59, 9.64, 38.3, 38.4, 38.5, 38.6, 38.7, 39, 31.1, 31.4, 31.6, 31.7, 31.8, 32, 32.2, 32.4, 32.5, 32.7, 32.8, 33.1, 33.3, 33.4, 33.5, 33.6, 34, 34.2, 34.3, 34.4, 34.6, 34.8, 34.9, 35, 35.1, 35.3, 35.5, 35.6, 35.7, 35.9, 36.1, 36.2, 36.4, 36.5, 36.6, 36.8, 37, 37.1, 37.4, 37.5, 37.6, 37.7, 38, 38.1, 9.93, 9.96, 9.99, 39.1, 39.2, 39.3, 39.4, 39.6, 39.7, 39.9, 30.1, 30.2, 30.4, 30.5, 30.7, 30.8, 31, 27.8, 28, 28.2, 28.3, 28.7, 28.9, 26.3, 26.5, 26.6, 26.9, 27.2, 27.4, 27.5, 29, 29.1, 29.3, 29.7, 13.4, 13.6, 13.7, 13.9
Voltage Rating 120, 120-277, 277, 347
Trim Style Cone, Corner Wallwash, Double Wallwash, Hyperbolic, Open, Single Wallwash
Color Black, Bronze, Clear, Gold, Pewter, Wheat, White
Mounting Type Recessed
Series LLP4

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET LLP4-LLPRM4.pdf LLP4 and LLPRM4 Series - 4" New Construction and Remodel Low Profile Downlight 2/24/2022 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Spectral Data Sheets

  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Dimming Compatibility LED-DIM.pdf LED Dimmer Compatibility Sheet 9/5/2019 View
    Installation Instructions 065-1196.pdf Flangeless Adapters 12/5/2019 View
    Installation Instructions 065-1324.pdf LLP4 Series - 4" Low Profile New Construction Housing Mechanical 8/26/2021 View
    Installation Instructions 065-1333.pdf LLP4 Series - 4" Low Profile Trim 11/23/2020 View
    Wiring Diagram 065-1326.pdf LLP4 and LLPRM4 Series - EZ10/EZ1/EZB Driver Wiring Diagrams 8/23/2021 View
    Wiring Diagram 065-1327.pdf LLP4 and LLPRM4 Series - EDAB Driver Wiring Diagrams View
    Wiring Diagram 065-1328.pdf LLP4 and LLPRM4 Series - ZT/GZ1 Driver Wiring Diagrams 8/23/2021 View
    Wiring Diagram 065-1329.pdf LLP4 and LLPRM4 Series - FD Driver Wiring Diagrams View
    Wiring Diagram 065-1330.pdf LLP4 and LLPRM4 Series - ECOD Driver Wiring Diagrams View
    Wiring Diagram 065-1331.pdf LLP4 and LLPRM4 Series - FDL Driver Wiring Diagrams 8/23/2021 View
  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures Indy L-Series Gen 4 Brochure.pdf Indy L-Series Gen 4 Brochure 6/4/2021 View
