LSX BTP

Fixture End Mount Sensor

By SensorSwitch

  • Overview
  • Specifications

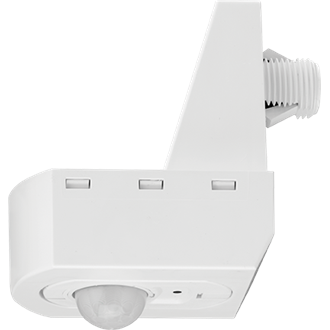

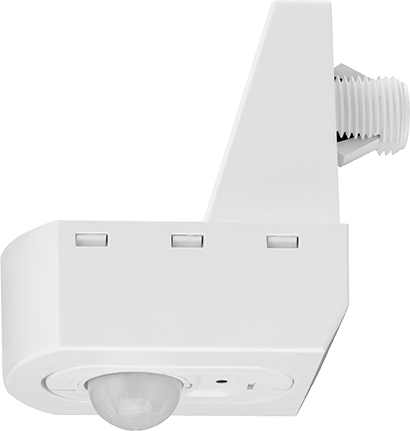

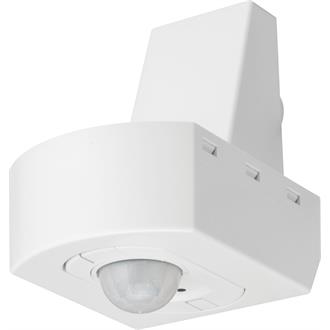

The LSX BTP fixture mounted occupancy sensor with dimming photocell is ideal for indoor standalone industrial lighting control applications. The versatile LSX sensor is optimized to perform at a variety of mounting heights typical of industrial applications.

The LSX sensor offers reliable performance and an innovative end-mount design with an integrated bracket that installs easily into most fixtures with a standard 1/2” knockout. Easy to install and configure, the SensorSwitch VLP mobile app allows you to change settings using Bluetooth® communication (up to 100 ft. range).

The NEW flashlight wakeup feature makes programming individual or small groups of fixtures easier than ever! This new feature allows you to use the VLP Mobile App to program small groups of fixtures before or after batch programming is completed. Simply use a flashlight to wake up the LSX BTP sensors on selected fixtures, then update their settings in the VLP Mobile App. Watch the demo video to learn more!

It is designed in combination with eldoLED® or similar LED drivers with 0-10 VDC, 12-24 VDC auxiliary power and standby mode. eldoLED drivers deliver smooth and flicker-safe deep dimming performance with signature Hybrid HydraDrive™ technology - providing you the flexibility needed for your lighting projects.

Compatible Luminaires:
  • JCBL LED High Bay from Lithonia Lighting®
  • Phuzion™ PHG LED High Bay from Holophane®

For more information and resources on the VLP mobile app, please visit the SensorSwitch VLP webpage.
Read More
Read Less
Control Device Type Daylight Sensor
Mounting Type Fixture Attached
Control Protocol 0-10V
Product Type Sensor
Color White
Finish Gloss
Environmental Listing High Humidity
Series LSX
Application Type Education, Government, Healthcare, Hospitality, House of Worship, Manufacturing, Offices & Banks, Residential, Retail, Sports and Recreation
  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET LSX-BTP.pdf LSX-BTP Low Voltage, Fixture Mounted Indoor Highbay PIR Occupancy & Dimming Sensor Spec Sheet. 8/16/2022 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

  • Spectral Data Sheets

  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions LSX BTP-instruction-sheet 091922.pdf LSX BTP-instruction-sheet 9/28/2022 View
    Technical Bulletins HALEON BTP Default Settings.pdf HALEON BTP Default Settings.pdf 9/28/2022 View
    Technical Bulletins SensorSwitch VLP Mobile App Bluetooth User Guide SensorSwitch VLP Mobile App Bluetooth User Guide 10/13/2021 View
  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    FAQ SensorSwitch VLP Mobile App FAQ SensorSwitch VLP Mobile App FAQ 10/13/2021 View
    Product Presentation LSX BTP Sensor Customer Presentation LSX BTP Sensor Customer Presentation: Holophane 3/16/2022 View
    Product Presentation LSX BTP Sensor Customer Presentation LSX BTP Sensor Customer Presentation: C&I 3/16/2022 View
