rIO

Fixture embedded nLight AIR network interface

By nLight

    DLC Standard
  • Overview
  • Specifications

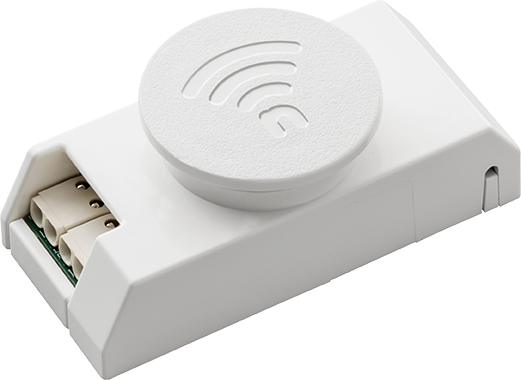

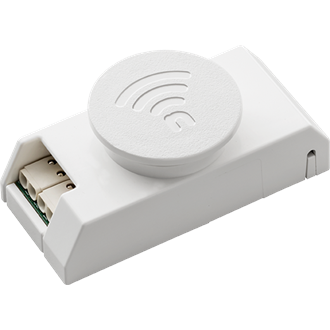

The fixture embedded nLight® AIR network interface called the rIO is a low voltage wireless device providing individual fixture control and digital dimming capabilities within Acuity Brands® LED luminaires with eldoLED® brand drivers. This smart device results in the luminaire being “nLight AIR-enabled” — making it both addressable as well as capable of digitally communicating with other nLight AIR wireless controls such as occupancy sensors, photocells, and wall switches. This allows for advanced operation and design flexibility ranging from stand-alone rooms to building and campus-wide networks.

As part of the nLight AIR wireless controls family, the rIO uses a 900MHz communication frequency that easily penetrates obstructions and its five-tier security architecture helps building owners and occupants rest easy.

To learn more about nLight AIR wireless controls please contact your local lighting representative or visit the nLight AIR systems page.


Features:

• nLight AIR network connectivity for individual fixture control

• Integrated from the factory. No onsite wiring required

• Robust five-tier security architecture delivers peace of mind for building owners, managers, and IT departments

• 90° or 180° integral antenna — no external antenna required

• Zoned version supports up to 50 devices in a group; networked version supports up to 128 devices in a group and can be associated with an nLight AIR adapter

• Easy integration with the nLight ECLYPSE® via nLight adapter for more advanced control strategies like time-based scheduling, demand response and to connect with BACnet™, cloud-based applications, and remote control capabilities

• CLAIRITY™+ mobile application makes configuration easy - no specialized tools or software to learn

• Powered from the eldoLED driver and compatible with eldoLED LEDCode drivers

Read More
Read Less
Control Device Type Fixture Embedded, Interface Device
Mounting Type Fixture Embedded
Networkable Control Networkable Control
Control Protocol 0-10V, Digital
Product Type System Interface
Voltage Low Voltage
Compliance Listing DLC Standard, ROHS
Regulatory Listing C-UL-US, UL
Series RIOZ, RIO
Application Type Education, Government, Healthcare, Hospitality, House of Worship, Offices & Banks, Retail, Retrofit
  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET rIO.pdf nLight AIR rIO Fixture-Embedded Network Interface Spec Sheet 7/27/2022 View
    SPEC SHEET Clairity Pro Mobile Application.pdf (Archived) Mobile App for nLight® AIR Startups 1/3/2020 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions IS-RIO-002.pdf nLight AIR rIO Installation Instructions 5/18/2021 View
    User Manual CLAIRITY PRO Quick Start Guide.pdf (Archived) CLAIRITY PRO Quick Start Guide 1/21/2020 View
