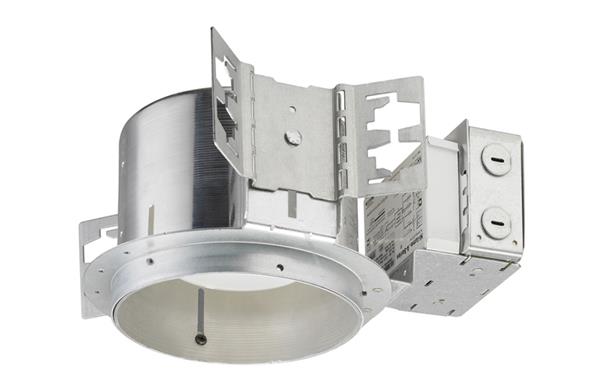

TC22LED 1400LM Housing

LED 6in Round Commercial New Construction Housing

By Juno

    Energy Star®
  • Overview
  • Specifications
Juno® 6-inch, TC22LED 1400LM commercial LED downlights are TC-rated for non-insulated ceilings or environments where insulation can be pulled back at least 3-inches from all sides of the housing. These advanced LED fixtures produce over 1,400-lumens of brilliant white light, making them ideal for high-ceiling commercial applications. At 20W input, they are ultra-efficient, offering light levels equivalent to 32W CFL while consuming 37% less energy. The shallow housing accommodates 2x6 construction and is offered with an extensive selection of cone, baffle, hyperbolic, lensed, and wall wash trims.
Read More
Read Less
Size 6 IN
Shape Round
Light Source LED - Static
CRI 90
Product Type Housing
Compliance Listing ENERGY STAR®
Environmental Listing Non-IC
Dimming Protocol 0-10V
Mounting Type Recessed
Voltage Rating 120-277
Fixture Wattage 27.8
Series TC22LED

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET G1_5_84.pdf Juno TC22LED (G4 14LM) Recessed Housing, Open Trims 9/15/2020 View
    SPEC SHEET G1_5_85.pdf Juno TC22LED (G4 14LM) Recessed Housing, Lensed Trims 9/15/2020 View
    SPEC SHEET G1_5_86.pdf Juno TC22LED (G4 14LM) Recessed Housing, Wall Wash Trims 8/6/2020 View
    SPEC SHEET G1_5_87.pdf Juno TC22LED (G4 14LM) Recessed Housing, Hyperbolic Trims 9/15/2020 View
    SPEC SHEET JUNOTCLED-DIM.pdf Juno 09LM and 14LM TC20LED and TC22LED Dimmer Compatibility View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions IC & TC P5142.pdf Juno IC and TC Recessed Housing Installation Instructions View
    Installation Instructions P4475.pdf TC LED Downlights with Universal Driver (MVOLT Option) Installation Instructions View
    Installation Instructions P4728.pdf TC LED Downlights with Lutron Hi-Lume® Driver (ECOD Option) 6/4/2019 View
    Installation Instructions P5889.pdf TC LED Downlights with Lutron Hi-Lume® Driver Installation Instructions View
  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1Enter the Zip Code or Select the State and Utility

    Step 2Ensure that the correct Product Category is selected if there is more than one option

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Sell Sheet Juno TC 1400 Lumen Downlights Sell Sheet.pdf TC 1400 Lumen Downlights Sell Sheet 8/25/2020 View
