IC22RLED 900LM WD Remodel Housing

WarmDim LED 6in Round Remodel Housing

by Juno

  • ENERGY STAR®

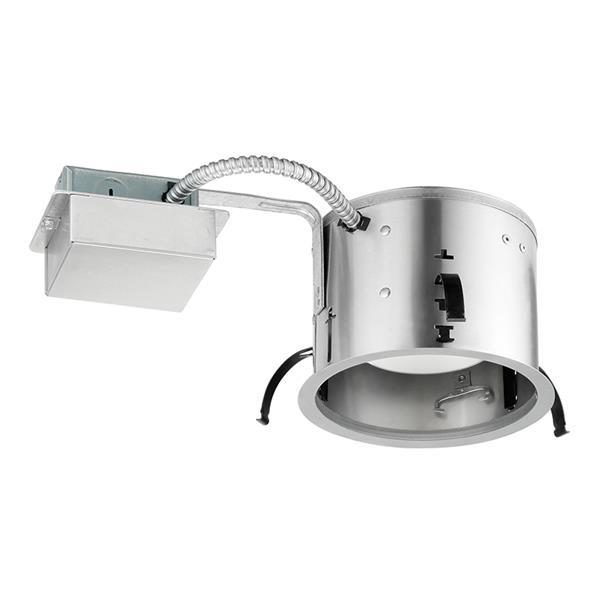

The Juno® 6-inch IC22RLED 900LM remodel downlight with patented WarmDim technology (Patent US 8,710,754) features an LED housing that’s compatible with many standard Juno trims. WarmDim warms LED color temperature while dimming to emulate the dimming performance of traditional incandescent light sources. The dedicated LED housing is IC-rated to be completely covered with insulation. When used with the supplied Air-Loc® Gasket (ALG) kit, the downlight stops infiltration and exfiltration of air, reducing heating and cooling costs.  without an extra gasket.
Exclusive Juno WarmDim LED technology warms color temperature during dimming to replicate the warm glow previously achieved only with incandescent dimming 3000K at full lumen output, 90 CRI minimum throughout dimming range; dimmable with most standard incandescent or electronic low-voltage dimmers ENERGY STAR® Qualified with select trims. See specification sheet for details. Over 900 lumens using only 18 watts LEDs rated for 50,000-hours at 70 percent lumen maintenance; no ultraviolet or infrared wavelengths, lead, or mercury Computer-optimized reflector design with high-reflectance finish and a high-transmission diffusing lens conceals LEDs and produces uniform aperture luminance Air-Loc housing when used with supplied ALG kit Remodel springs accommodate up to a 1-1/8-inch ceiling thickness Shallow housing allows for fit in 2 x 6 construction
  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Need Product Assistance?

  • Specifications

    Size 6 IN
    Brand Juno
    Color Rendering Index 90
    Correlated Color Temperature 3000 K
    Environment Indoor
    Light Source LED - Dynamic
    Regulatory Listing cUL, UL
    Lumen Output 900 LM
    Product Type Housing
    Series IC22RLED
    Shape Round
    Voltage Rating 120
