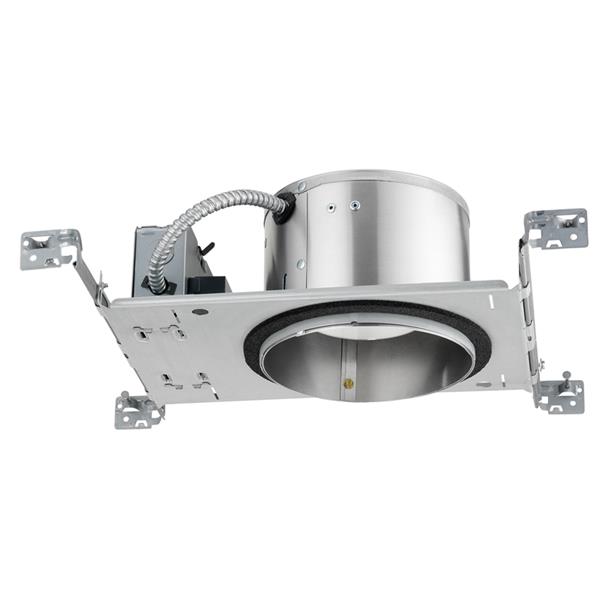

IC22LED 600LM WD Housing

WarmDim LED 6in Round New Construction Housing

By Juno

    WarmDim  Energy Star®  CA Title 24/JA8
  • Overview
  • Specifications
The Juno® 6-in IC22LED 600LM downlight with patented WarmDim technology (Patent US 8,710,754) features an LED housing that’s compatible with many standard Juno trims. WarmDim warms LED color temperature while dimming to emulate the dimming performance of traditional incandescent light sources. The dedicated LED housing is IC-rated to be completely covered with insulation, and the Air-Loc® sealed new construction housing stops infiltration and exfiltration of air, reducing heating and cooling costs without an extra gasket.
Read More
Read Less
Size 6 IN
Shape Round
Light Source LED - Dynamic
Dynamic Feature Warm Dimming
Lumens 600 LM, 900 LM, 1400 LM
CRI 90
Product Type Housing
Compliance Listing CA Title 24, ENERGY STAR®, JA8
Environmental Listing Damp Location, IC
Regulatory Listing cUL, UL
Dimming Protocol 0-10V, Forward Phase, Reverse Phase
Mounting Type Recessed
Voltage Rating 120, 120-277
Fixture Wattage 17.5
Series IC22LED

Read More Read Less
