Aculux 2 Inch Gen 2 Video

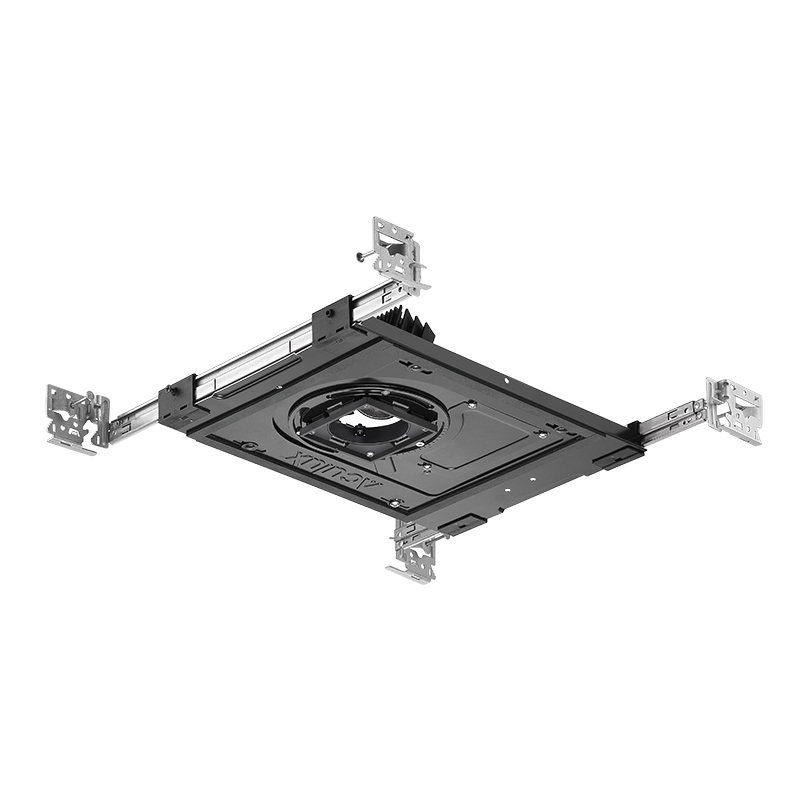

AX2SQ D New Construction Housing

Aculux® LED 2in Square New Construction Housing

by Aculux

  • ENERGY STAR®
  • Design2Ship Program
Aculux® 2-inch LED precision downlight and wall wash luminaire is discreet and aesthetically stunning, delivering up to 1,500 lumens of high precision downlighting. Its state-of-the-art LED technology offers superb color consistency within 2 step MacAdam ellipse. These luminaires perform as well as or better than conventional recessed fixtures two or three times their size. The efficient optical system provides superior beam control. Precision installation platform facilitates perfect fixture to fixture alignment.
  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Photometry & BIM

    Use %(percent) to separate search terms.<br >

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    • Request BIM Files

      Please be specific with your request and suggest adding a “need by date” if urgent request Note: your request will be routed to the BIM Design team. If escalation/questions is needed please email BIM@acuitybrands.com.
  • Specifications

    Size 2 IN
    Brand Aculux
    Color Rendering Index 80|90
    Control Networkable Control
    Correlated Color Temperature 2700 K|3000 K|3500 K|4000 K
    Environment Indoor|Outdoor
    Light Source LED - Static
    Listings ASTM Airtight|Chicago Plenum|cUL|ENERGY STAR®|IC|Non-IC|UL Damp Location|UL Wet Location
    Lumen Output 800 LM|1200 LM|1500 LM
    Maximum Wattage 17
    Product Type Housing
    Quick Ship Yes
    Series AX2SQ
    Shape Square
    Voltage Rating 120|MVOLT
