RES7 Sensor

nLight AIR Fixture Integrated Wireless Sensor

By nLight

    DLC Standard / PremiumCA Title 24/JA8
  • Overview
  • Specifications

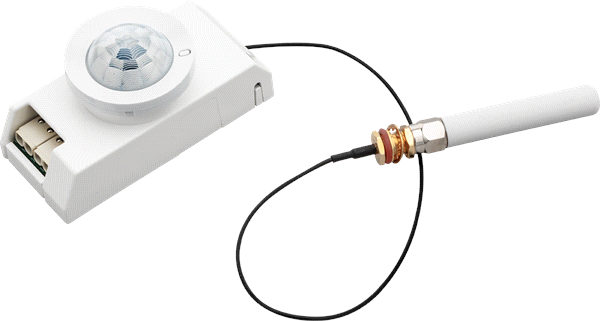

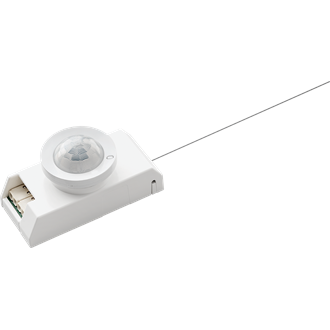

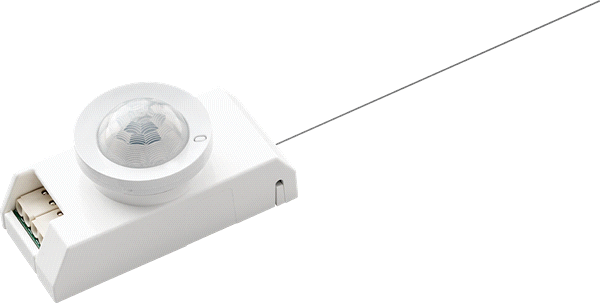

The nLight® AIR rES7 sensor is an in-fixture, low voltage, digital sensor providing embedded wireless lighting control, digital dimming, occupancy detection and daylight harvesting capabilities. The rES7 is designed for mounting heights of up to 20 ft in indoor luminaries. The rES7 sensor provides Passive Infrared (PIR) occupancy detection over a 15-20 ft (4.57 - 6.10 m) radial coverage pattern and photocell light level detection in one compact low profile design with optional Dual Technology, which adds Microphonics™ to PIR detection. The rES7 sensor is ideal for occupancy and daylighting control in suspended or recessed luminaires.

As part of the nLight AIR wireless controls family, the rES7 sensor uses a 900MHz communication frequency that easily penetrates obstructions and its five-tier security architecture helps building owners and occupants rest easy.

To learn more about nLight AIR wireless controls please contact your local lighting representative or visit the nLight AIR systems page.


Features:

•100% Digital PIR detection with optional Dual Technology featuring Microphonics

• Occupancy and photocell all in one, integrated from the factory. No onsite wiring required

• Robust five-tier security architecture delivers peace of mind for building owners, managers, and IT departments

• CLAIRITY™+ mobile application makes configuration easy - no specialized tools or software to learn

• Easy integration with the nLight ECLYPSE® via nLight adapter for more advanced control strategies like time-based scheduling, demand response and to connect with BACnet™, cloud-based applications, and remote control capabilities

Read More
Read Less
Control Device Type Daylight Sensor, Occupancy Sensor
Mounting Type Fixture Embedded
Networkable Control Networkable Control
Control Protocol 0-10V, Digital
Product Type Sensor
Color White
Finish Gloss
Voltage Low Voltage
Compliance Listing CA Title 24, DLC Standard, ROHS
Regulatory Listing C-UL-US, CSA, UL
Series RES7
Application Type Automotive & Parking, Education, Government, Healthcare, Hospitality, House of Worship, Offices & Banks, Retail

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET Clairity Pro Mobile Application.pdf Mobile App for nLight® AIR Startups 1/3/2020 View
    SPEC SHEET RES7.pdf nLight® AIR rES7 - Fixture embedded nLight® AIR smart sensor 5/5/2022 View
  • Photometry & Revit (BIM)

  • Spectral Data Sheets

  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions IS-RES7-002.pdf rES7 Installation Instructions 5/18/2021 View
    User Manual CLAIRITY PRO Quick Start Guide.pdf CLAIRITY PRO Quick Start Guide 1/21/2020 View
  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    FAQ nLight AIR FAQs FINAL.pdf nLight AIR FAQ View
    FAQ nLight Air Flyer_FINAL.pdf nLight AIR FAQ View
    Sell Sheet nLight Air Sell Sheet FINAL.pdf nLight AIR Sell Sheet View
