DSW Series

SWIVEL CONTROL - DSW SERIES

By Dark to Light

  • Overview
  • Specifications

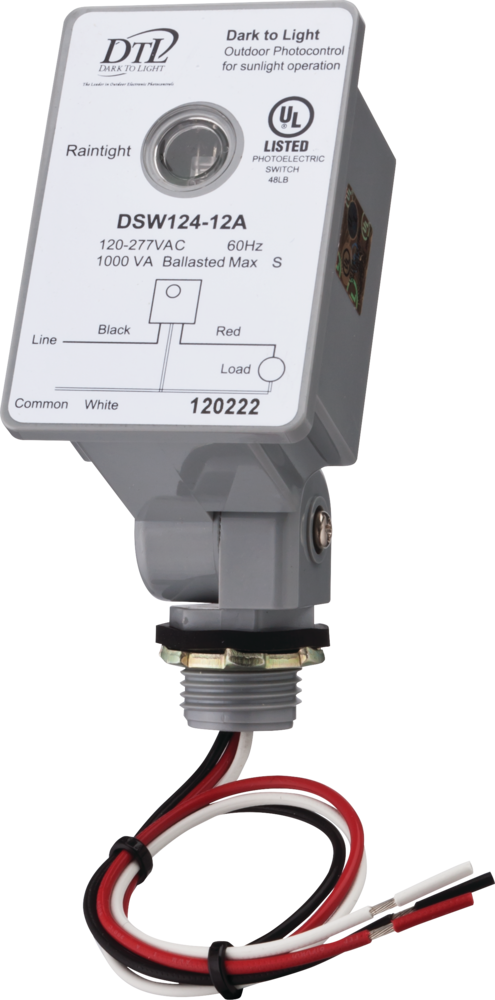

The DSW Series photocontrol mounts to wall-mounted luminaires and electrical boxes. It can swivel 360~176; around its base and 180~176; from front to back.
Design Details:
  • Filtered silicon light sensor
  • 190 Joule MOV surge protection
  • 1/2" straight pipe thread fits standard
  • 1/2" knock-out or threaded connector
  • 12", 200~186;C, 16 gauge wire leads
  • Swivel mechanism rotates 180~186; on a single axis for optimal orientation
  • Polycarbonate enclosure
  • Instant Turn-on, 5-10 second turn-off time delay
  • Six-year warranty

Operating Characteristics:
  • Voltages 120-277
Read More
Read Less
A+ Capable Yes
Control Device Type Photocell
Mounting Type Fixture Attached
Product Type Photo Control
Series DSW124
Application Type Automotive & Parking, Roadways, Bridges & Tunnels
