Product Image
DPN Series.png

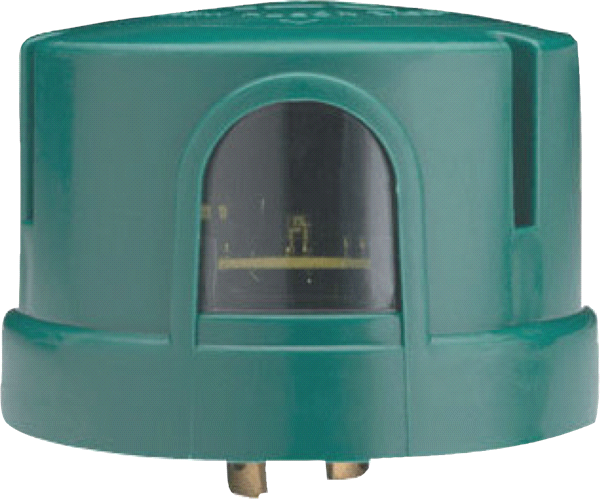

DPN Series

DPN Part-Night Series

By Dark to Light

  • Overview
  • Specifications
The DPN Series photocontrols were specifically designed to turn the light off halfway through the night to save energy and extend fixture life.
Design Details:
  • Turns on at dusk and off halfway through the night. Automatically self-adjusts to seasonal time changes, reducing maintenance
  • Filtered silicon photocell provides long-term, drift-free light sensing. The infrared blocking polymer filter gives human eye response
  • MOV surge protection
  • Reduces light pollution and light trespass concerns
  • Sealed relay rated for 5,000 operations at full load
  • 2-5 second off-only time delay is provided to avoid turn-off from extraneous light
  • Dielectric strength: 5000V per ANSI
  • Polypropylene cover, Neoprene gasket, brass legs, acrylic window base rated for 120°C
  • Six-year warranty

Operating Characteristics:
  • Turn on / off ratio: 1:1.5
  • Load rating: 1000W, 1800 VA ballast
  • Operating Temperature: -40 to +70°C ambient, up to 90° interface per ANSI
  • Power consumption: 0.8 watts
  • Not approved for LED fixtures
Read More
Read Less
A+ Capable Yes
Control Device Type Photocell
Mounting Type Fixture Attached
Product Type Photo Control
Series DPN124
Application Type Automotive & Parking, Roadways, Bridges & Tunnels
