Fresco™ DXT

Assemblies for High Performance DMX Networks

by Fresco

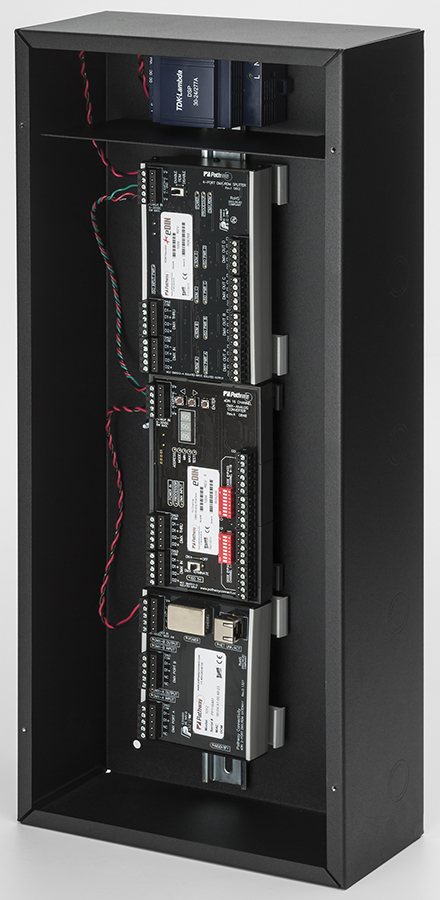

Fresco DXT modules and assemblies are designed for reliable control of DMX/RDM luminaires. Factory pre-wired within a NEMA 1 enclosure, DXT assemblies are meant for permanent installation.

Featuring conduit knock outs, screw-down terminal strips and diagnostic LEDs, the DXT Modules are factory installed and wired for easy installation in commercial applications. Compatibility with luminaires and controllers is assured because DXT modules are compliant to the latest revisions of the ANSI DMX/RDM standard as documented.

Select one, two or three DXT Modules for factory installation within an enclosure. Modules support data splitting, merging, isolating, 0-10V interfacing, etc. Mix and match modules as required for the project.


• Factory installed DMX512 control and interface modules
• 1, 2 or 3 modules may be installed as specified ( 4 module installation possible under certain provisions)
• Removable plug-on terminal strip connectors for all field wiring
• Direct pass-through connection for DMX/RDM
• Auto-terminating on the DMX/RDM outputs
• Black powder coated finish on the NEMA 1 enclosure
• Class 2 Power Supply 120/277V provided within each enclosure
• Ground lug provided with each enclosure

  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View Download
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View Download
  • Photometry & BIM

    • Request BIM Files

      Please be specific with your request and suggest adding a “need by date” if urgent request Note: your request will be routed to the BIM Design team. If escalation/questions is needed please email BIM@acuitybrands.com.
  • Specifications

    Application Type Education, Government, Healthcare, Hospitality, Offices & Banks, Religious, Retail
    Brand Fresco
    Control Networkable Control
    Environment Indoor
    Listings ETL, UL
    Product Type Panel
    Series DXT
