PWSA Pathway System Assemblies

Factory Built DIN Rail System Assemblies

By Pathway

  • Overview
  • Specifications

Our DIN devices offer the system integrator a flexible way of creating custom solutions to DMX control challenges.

Pathway offers a simple method of generating a single catalog number to order a customized DIN System Assembly. The same assembly is easily re-orderable for other installs requiring the same capabilities.

All custom DIN assemblies receive a UL safety certification.

We recommend using the Pathway System Assembly Tool, a free downloadable software tool that will allow you to select each DIN device and build the catalog number, with visual confirmation of the assembly layout.

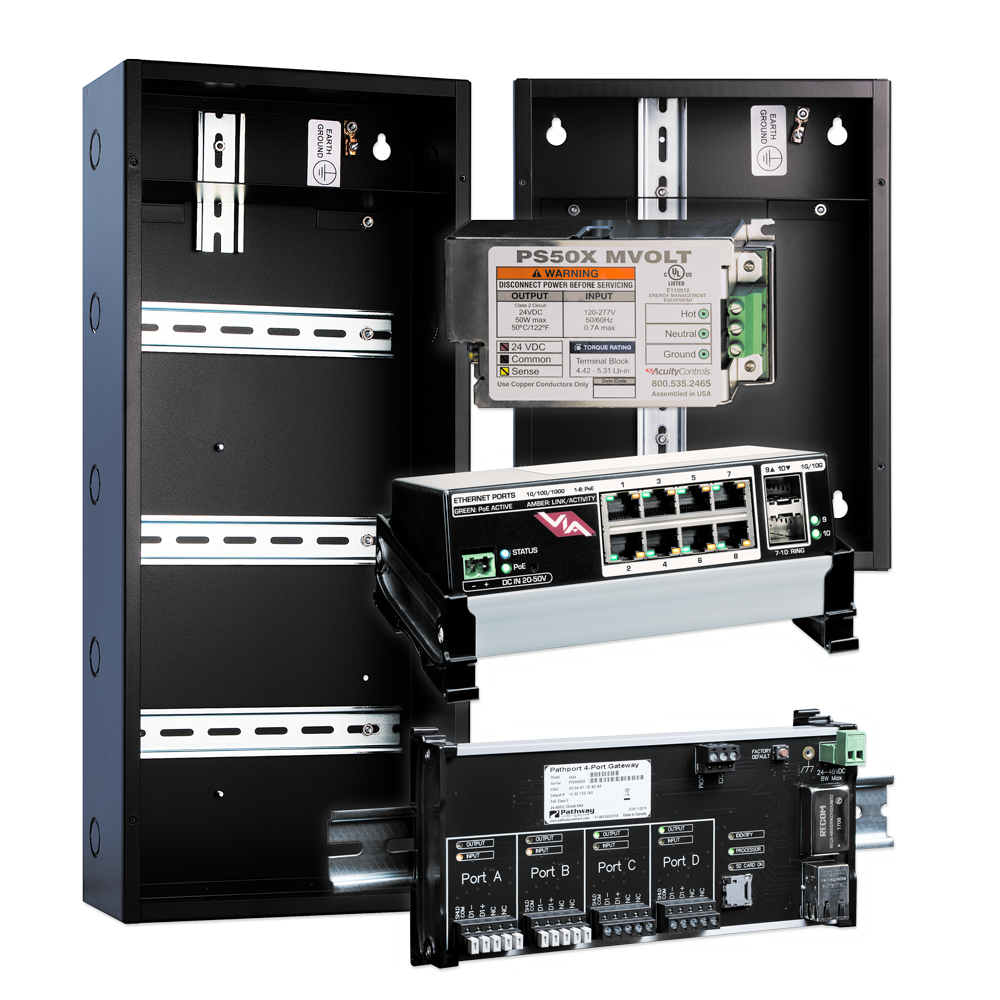

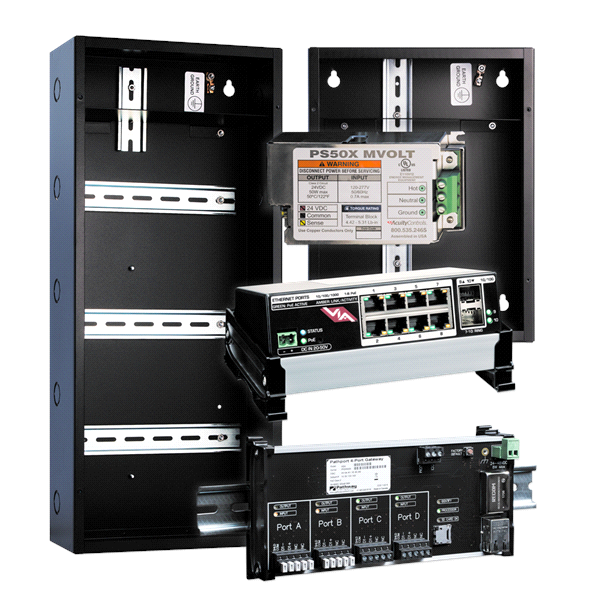

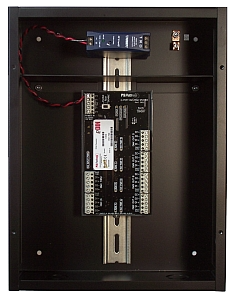

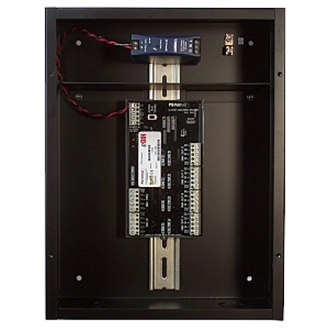

This is a factory assembled DIN Enclosure: see compatible control cards for full specifications.

Read More
Read Less
Control Device Type Interface Device
Mounting Location Wall
Mounting Type Surface
Product Type Panel
Networkable Control Yes
Voltage Rating 120-230, 120-277, 120/230
Receiving Protocol DMX, Dry Contact, Ethernet, RDM, RDMnet, sACN
Sending Protocol 0-10V, DMX, Dry Contact, Ethernet, RDM, RDMnet, sACN
Series PWSA
  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET Pathway-System Assembly-PWSA.pdf PWSA DIN System Assemblies Spec Sheet 9/9/2022 View
