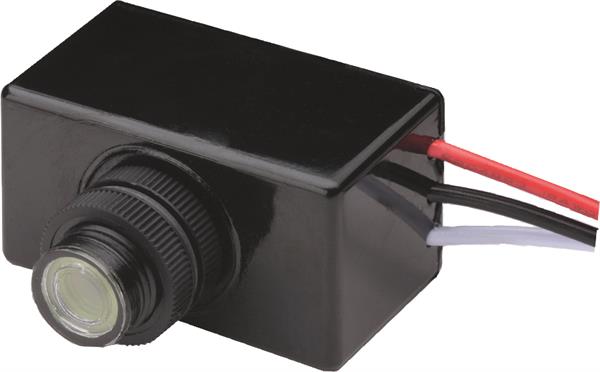

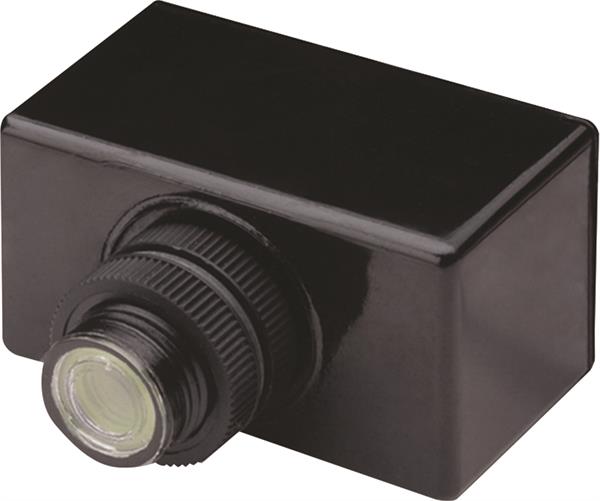

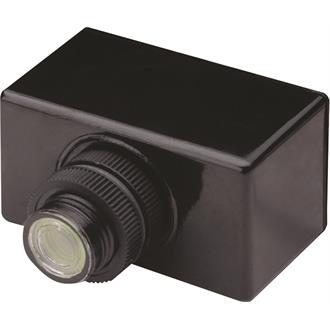

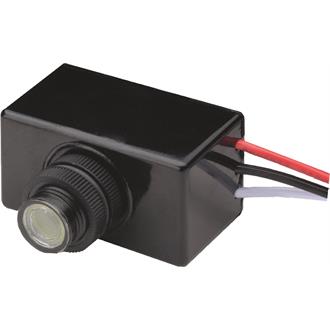

DBL Series

LED Long-Life Button Control

By Dark to Light

  • Overview
  • Specifications
The DBL series of photocontrols are LED long-life button style controls designed to be installed with lighting that does not use a NEMA receptacle.

Design Details:
  • Use for LED lighting fixtures that require dusk to dawn control
  • High inrush current fixtures
  • Designed to last as long as your LED lighting system, 20+ years
  • LED inrush protection with TRIAC assisted relay
  • Extreme surge protection of 564J/16kA (20kV/10kA class)
  • Long life capacitors
  • Full wave rectified power supply
  • Dual Zener diodes for long life
  • Four layer, FR4, 0.62” 2oz copper, thru hole plated circuit board
  • 12” 16AWG wire leads
  • Conformal coated printed circuit board
  • Black polycarbonate enclosure

Operating Characteristics:
  • 120-277VAC, 347VAC
Read More
Read Less
Control Device Type Photocell
Product Type Photo Control
Series DBL347, DBL127
