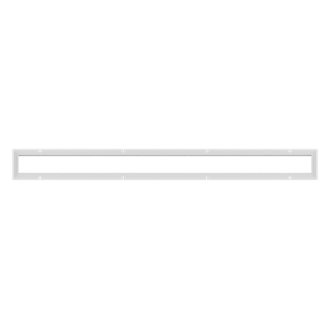

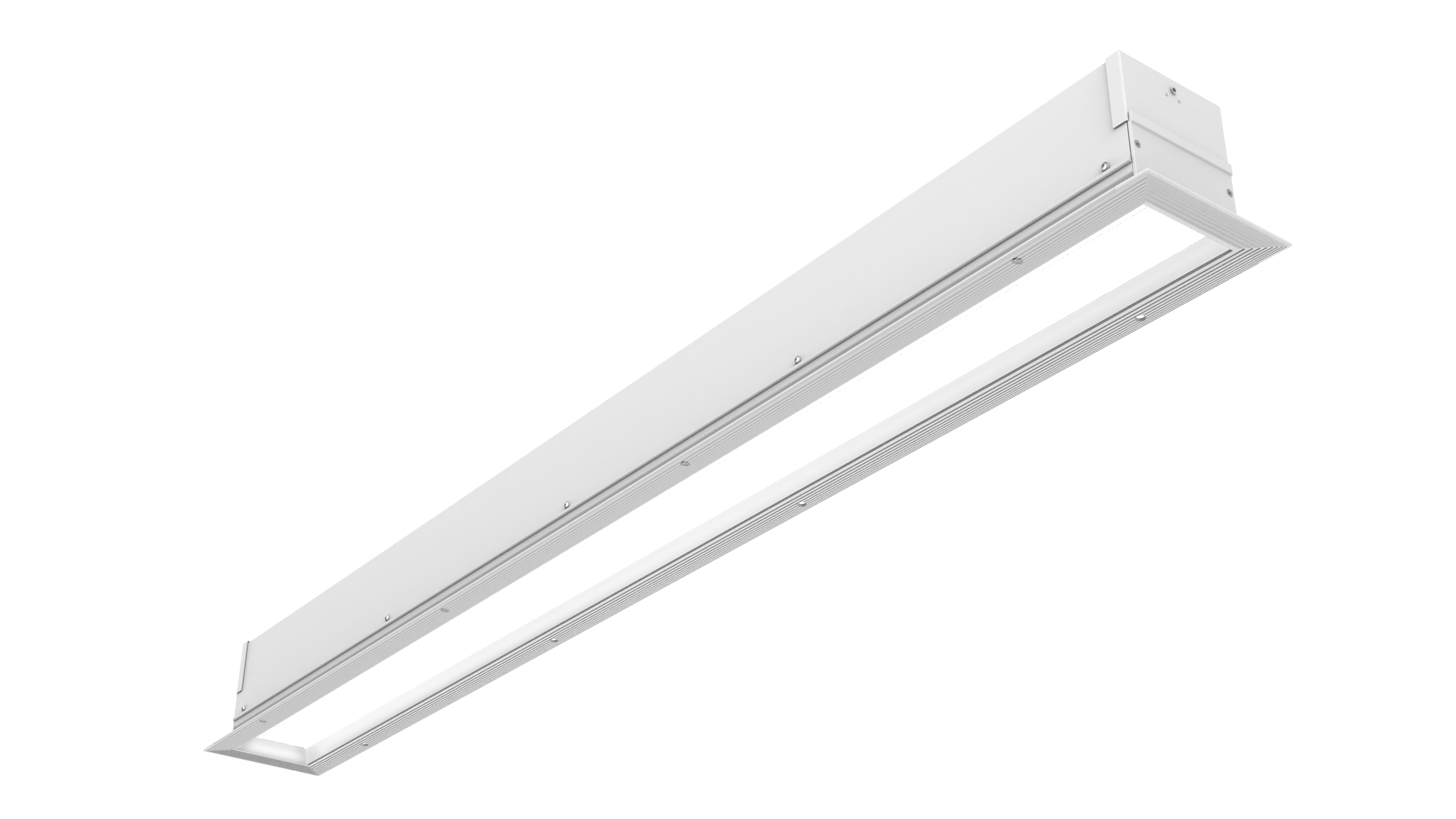

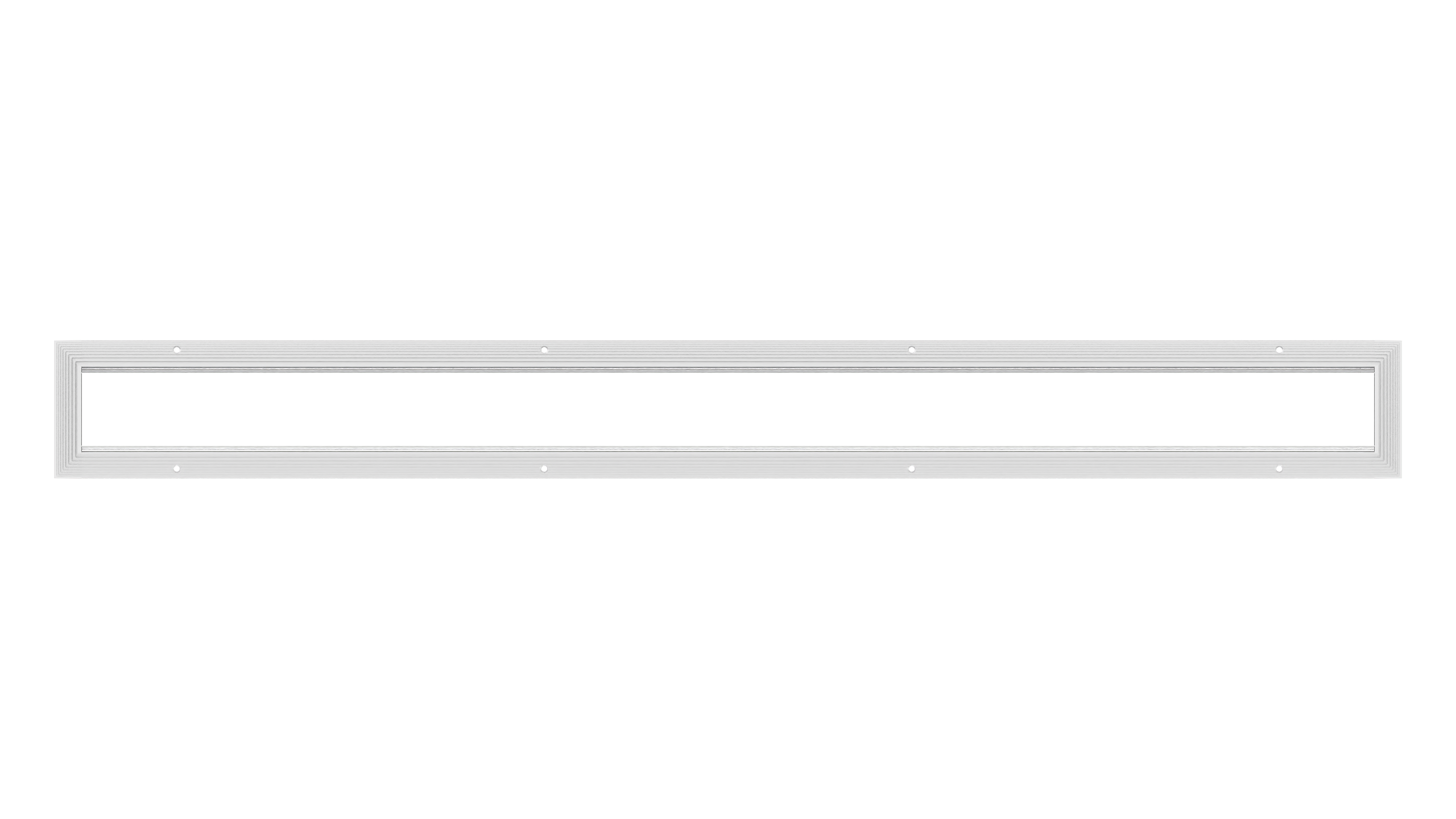

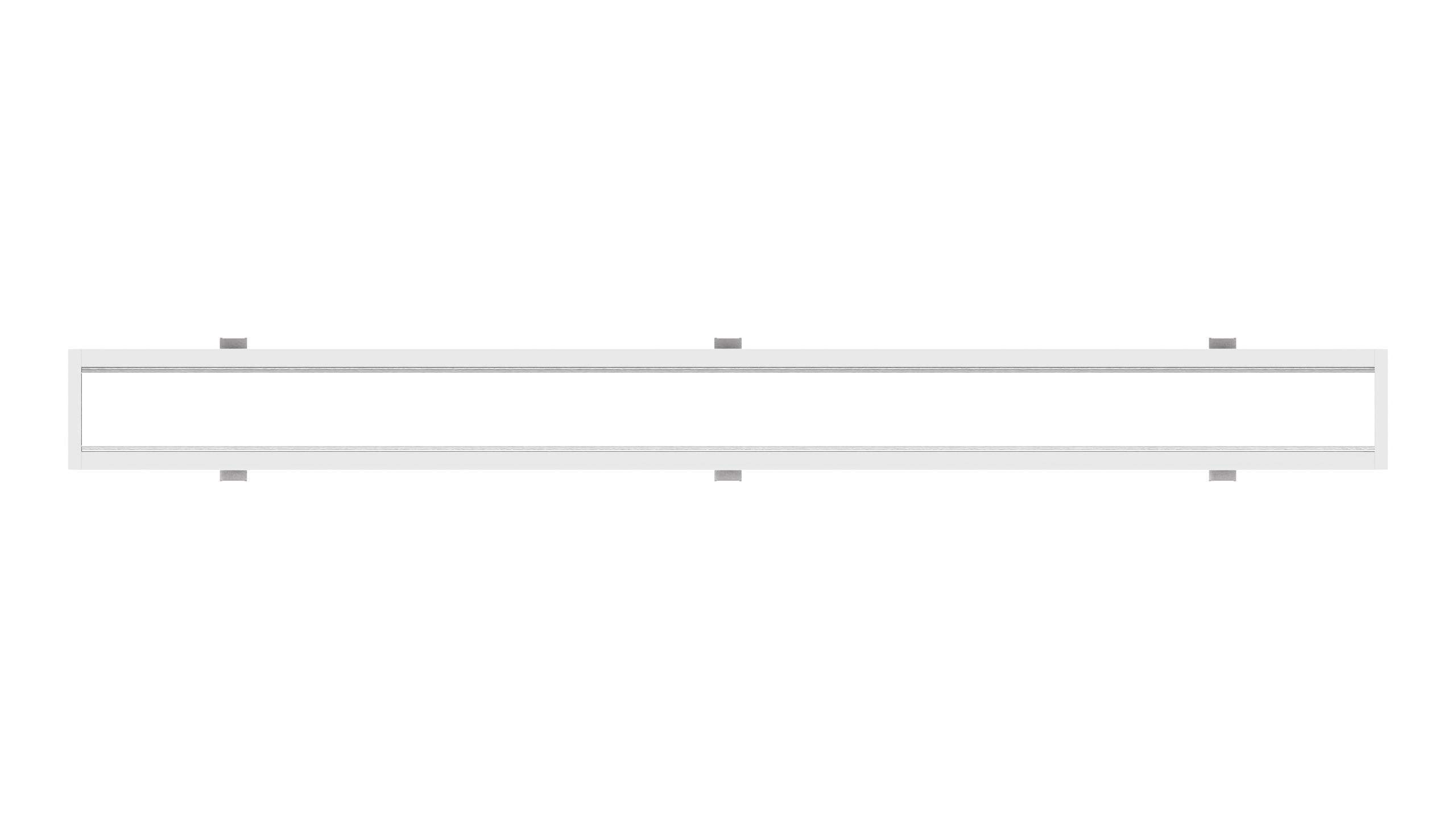

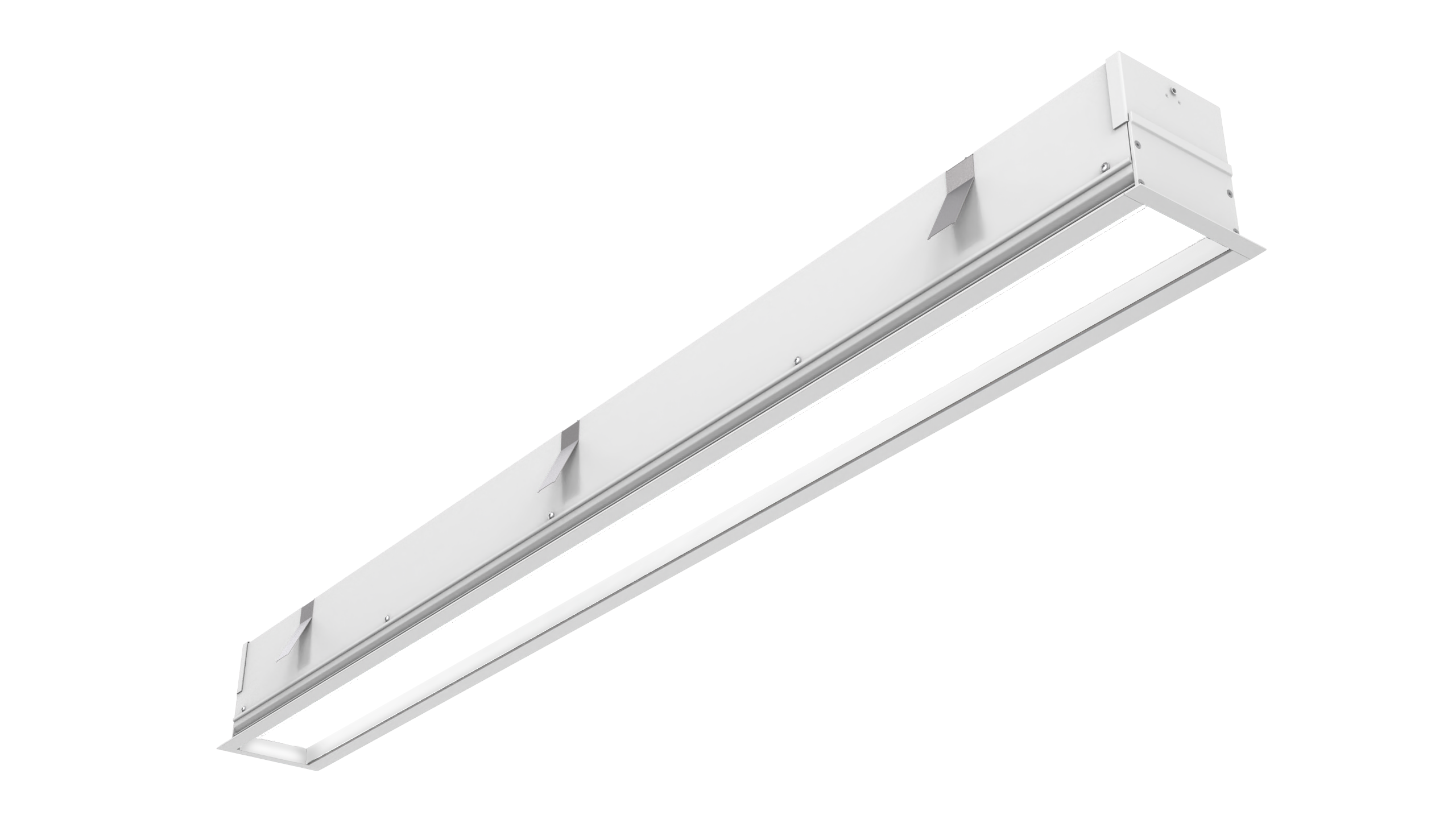

HPL Single Function in Static White

Recessed linear lighting with symmetric and asymmetric distribution

By Healthcare Lighting

    Buy America(n)
  • Overview
  • Specifications

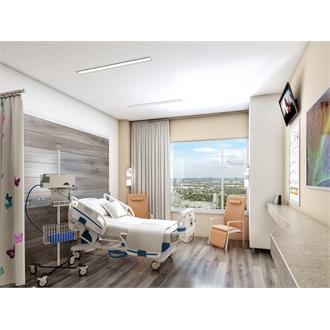

A recessed linear luminaire with asymmetric and symmetric distribution, HPL synergizes architectural form with multi-modal function. As a step away from bulky, headwall fixtures, HPL is a recessed linear fixture that delivers single and multi-modal functionality for patient rooms, healthcare hallways, common areas, and exam or procedure rooms.
2 ft., 3 ft., 4 ft., 6 ft., and 8 ft. lengths Up to 115 lumens per watt IP64 rating nLight® wired and wireless controls Grid, mud-in flangeless, and drywall flange mounting options.
Read More
Read Less
Size 2FT, 3FT, 4FT, 6FT, 8FT
Light Source LED - Static
Lumens 500 LM, 750 LM, 1000 LM, 1300 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
CRI 90, 95
Product Type Linear
Compliance Listing BAA, Declare
Environmental Listing IP64, MIL-STD-461G, NSF, Wet Location
Regulatory Listing cCSAus
Dimming Protocol 0-10V, DALI
Fixture Wattage 13.7, 15.9, 31.1, 31.2, 31.4, 31.5, 31.6, 31.8, 32.1, 32.2, 32.5, 32.9, 33.3, 38.1, 38.5, 38.9, 39.3, 41.3, 16.3, 16.4, 16.8, 17.8, 19.4, 21.1, 63, 64, 65, 76, 77, 78, 83, 84, 9.3, 9.4, 23.9, 24.3, 31, 52, 62, 21.5, 21.9, 22.1, 22.5, 22.8, 23.5, 41.7, 42.1, 42.2, 42.6, 44.2, 44.6, 47, 47.4, 47.7, 48.1, 51
Voltage Rating 120, 120-277, 277, 347
Mounting Type Recessed
Series HPL

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET HPL_STWH_SF.pdf Single Function Recessed Linear 12/7/2021 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Spectral Data Sheets

  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions HPL FLANGE (F) Installation Instructions.pdf HPL 2FT, 3FT, 4FT, 6FT & 8FT Recessed Linear Flange Mount 8/30/2021 View
    Installation Instructions HPL GRID (G) Installation Instructions.pdf HPL 2FT, 3FT, 4FT, 6FT & 8FT Recessed Linear Grid Mount 8/30/2021 View
    Installation Instructions HPL MUD IN (GB) Installation Instructions.pdf HPL 2FT, 3FT, 4FT, 6FT & 8FT Recessed Linear Flangeless Sheetrock Mud-In (GB) Mount 8/30/2021 View
  • Utility Rebate Search

  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Part Installation Instructions HPL REPLACEMENT (RK) Installation Instructions.pdf HPL Replacement Part Installation Instructions 8/30/2021 View
    Replacement Part Spec Sheet HPL Single Function Replacement Parts_LED_DRIVER_LENS_END PLATE.pdf HPL Single Function Static White Recessed Linear Replacement Parts 8/26/2021 View
