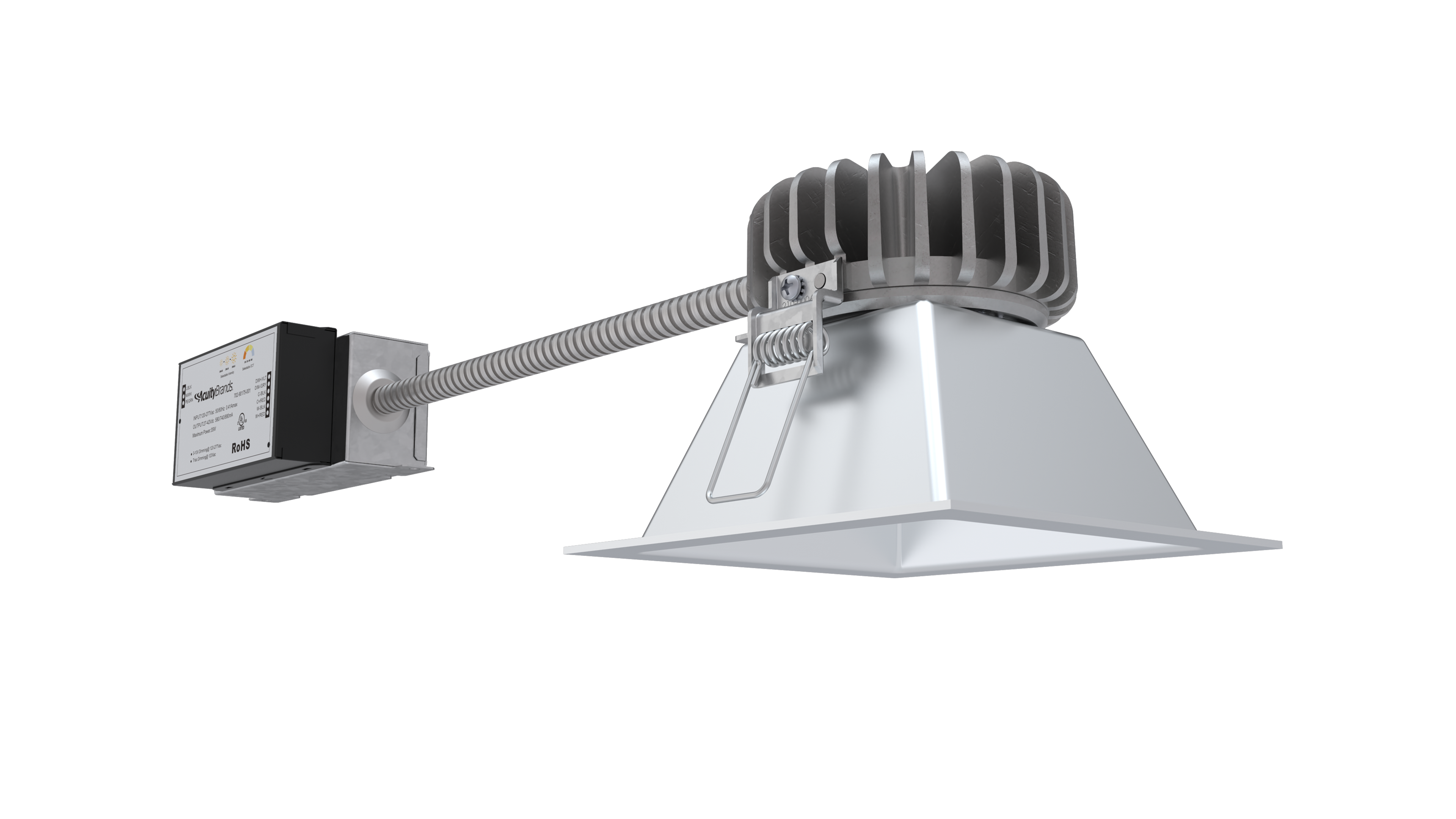

Product Image

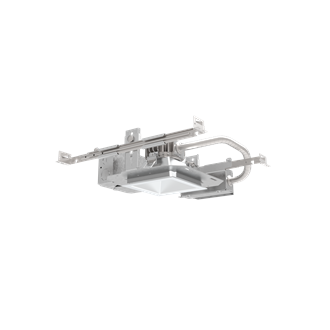

LBR4SQPF

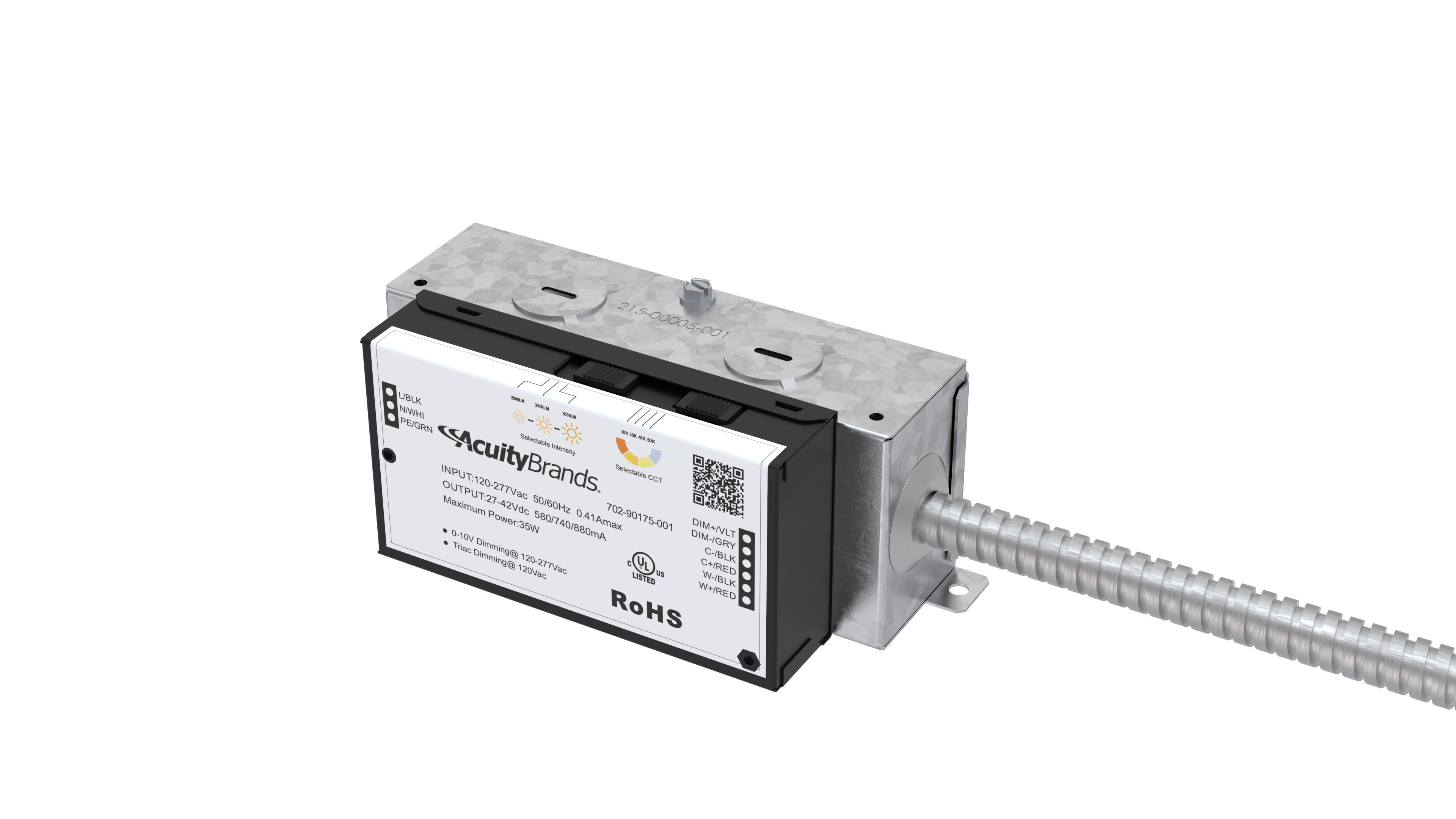

Driver Image.png
LBR Controls Image.JPG
LBR 4IN-SQ-BASE-WW.1537.png
LBR Application Image_08_resized.jpg
LBR Series Video
LBR Retrofit Installation Video
LBR New Construction Installation Video

LBR4 Square Series

LBR 4” Square Retrofit | Remodel | New Construction Downlight

By Lithonia Lighting

    Switchable LumensSwitchable CCTsEnergy Star®Low UGR
  • Overview
  • Specifications
LBR is everything you need in a downlight at an affordable price. Whether it’s the seamless install from-below design, abundant energy savings or maintaining glare-free aesthetics, LBR is the perfect solution for any renovation, remodel or new construction project. To top it off, LBR has a broad offering of aperture sizes, drivers, accessories, and switchable CCTs and lumens.


LBR4SQ is now available with SensorSwitch JOT!
  • Wireless, app-free solution to single room lighting control
  • Absolutely no 0-10V control wires and no mobile apps are needed to install and pair JOT enabled products
  • Lightning speed installation right out of the box all and pair JOT enabled products
Read More
Read Less
Size 4 IN
Shape Square
Light Source LED - Static
Dynamic Feature Switchable White
Lumens 500 LM, 750 LM, 1000 LM, 1500 LM, 2000 LM, 2500 LM, 3000 LM, Switchable
CCT / LED Color 3000 K, 3500 K, 4000 K, 5000 K, Variable
CRI 90
Product Type Retrofit Kit
Compliance Listing ENERGY STAR®, Low UGR
Environmental Listing ASTM Airtight, Damp Location, Wet Location
Regulatory Listing CSA, UL
Dimming Protocol 0-10V, DALI, Electronic Low Voltage, Triac
Fixture Wattage 10, 11.2, 11.6, 12.8, 13.4, 13.5, 14.2, 14.8, 15.5, 15.8, 16.4, 18, 18.8, 20.2, 21, 21.8, 24.1, 25, 25.5, 25.6, 27, 27.1, 28.6, 28.7, 29.5, 31, 31.7, 33.1, 34.7, 35.4, 37.5, 37.6, 39, 40, 40.5, 40.6, 41.5, 43, 46, 46.5, 47.5, 49, 51, 52, 53, 54, 6.8, 8, 8.2, 8.53, 9.75, 9.8
Voltage Rating 120-277, 347
Color Black, White
Mounting Type Recessed
Series LBR4SQ, LBR4SQWW

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET LBR4SQ.pdf LBR4 Square Retrofit Series 3/21/2023 View
    SPEC SHEET Lithonia-LBR4SQ NCH-Recessed-4in-Square-Downlight.pdf LBR4 Square New Construction 3/22/2023 View
    Design Select

    Need to Create a Submittal Spec Sheet? Take Me There

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Dimming Compatibility LBR-LDN-LDN Switchable Dimming Compatibility Dimming Compatibility Cheat Sheet 8/20/2020 View
    Installation Instructions 912-00125_C.1_LBR Installation Instructions.pdf LBR4, LBR4SQ, LBR6, LBR6SQ and LBR8 Round and Square LED Downlight 8/9/2022 View
    Installation Instructions 912-00158-001_B.1 Smash Plate.pdf LBR4, LBR4SQ, LBR6, LBR6SQ and LBR8 Round and Square Mounting Plate 8/24/2020 View
    Installation Instructions 912-00165-001_WL Gasket.pdf LBR4, LBR4SQ, LBR6, LBR6SQ and LBR8 Round and Square Replacement Wet Location "WL" Gasket Kit 8/24/2020 View
    Installation Instructions 912-00226-LBR _347_ Installation.pdf LBR4, LBR4SQ, LBR6, LBR6SQ and LBR8 Round and Square LED Downlight Supplemental for 347 Volt 8/9/2022 View

  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1: Enter the Zip Code or Select the State and Utility

    Step 2: Ensure that the correct Product Category is selected if there is more than one option


  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures Commercial Downlighting Product Brochure LBR and LDN Commercial Downlighting Product Portfolio Brochure 3/20/2023 View
    Brochures Commercial Downlighting School Application Guide LBR and LDN in Williams High School Application Guide 4/11/2023 View
    Sell Sheet Commercial Downlight Comparison Chart LBR and LDN Product Families Comparison Chart 8/18/2022 View
    Sell Sheet Lithonia Basic Retrofit Sell Sheet LBR Retrofit Sell Sheet 8/27/2021 View
    Sell Sheet LL_398514.29_LBR New Construction Sell Sheet_0721.pdf LBR New Construction Sell Sheet 8/26/2021 View
