Product Image

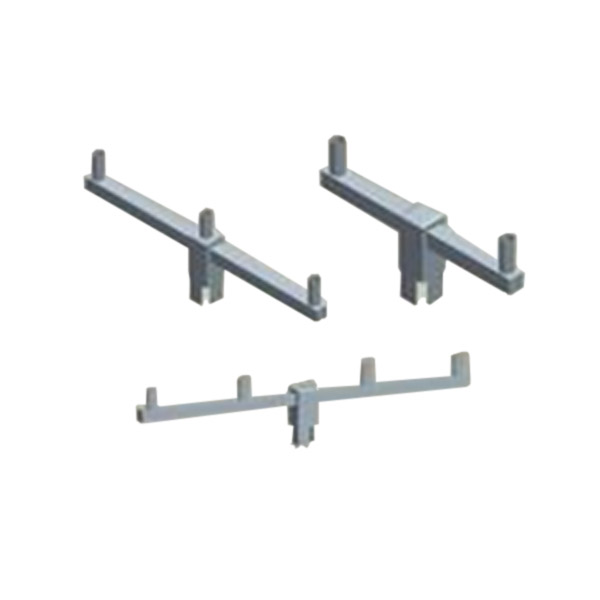

BR Vertical.jpg

BR Vertical Arms

Non-Decorative Arms and Brackets

By Holophane

  • Overview
  • Specifications
The BR Series offers a variety of Aluminum roundand square horizontal mount solutions for tenon mount and post-top lighting installations. View drawings below for additional information
Read More
Read Less
Product Type Arm
Mounting Type Post Top
Primary Material Aluminum
Architectural Style Utility
Series BR1078, BR1077, BR1076, BR1079, BR1082, BR1081, BR1080, BR1083, BR1084

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET BR1076.pdf Aluminum bullhorn 2 in line brkt (2@180),2-3.8IN ODX6IN long tenon for vert mt,hub 5INX.188 SSA Pole 12/23/2020 View
    SPEC SHEET BR1077.pdf Aluminum bullhorn 2 inline brkt (2@180),2-3.8IN ODX6IN long tenon for vert mt,hub 6INX.188 SSA Pole 12/23/2020 View
    SPEC SHEET BR1078.pdf Aluminum bullhorn 2 inline brkt (2@180),2-3.8IN ODX6IN long tenon for vert mt,hub 6INX.250 SSA Pole 12/23/2020 View
    SPEC SHEET BR1079.pdf Aluminum bullhorn 3 inline,2-3/8IN ODX6IN tall tenon,30.5IN space,for vert mt,hub 5INX.188 SSA Pole 12/23/2020 View
    SPEC SHEET BR1080.pdf Aluminum bullhorn 3 inline,2-3/8IN ODX6IN tall tenon,31IN space,for vert mt,hub 6INX.188 SSA Pole 12/23/2020 View
    SPEC SHEET BR1081.pdf Aluminum bullhorn 3 inline,2-3/8IN ODX6IN tall tenon,31IN space,for vert mt, hub 6INX.250 SSA Pole 12/23/2020 View
    SPEC SHEET BR1082.pdf Aluminum bullhorn 4 inline,2-3/8IN ODX6IN tall tenon,for vert mt fixture,hub 5INX.188 SSA Pole 12/23/2020 View
    SPEC SHEET BR1083.pdf Aluminum bullhorn 4 inline,2-3/8IN ODX6IN tall tenon,for vert mt fixture,hub 6INX.188 SSA Pole 12/23/2020 View
    SPEC SHEET BR1084.pdf Aluminum bullhorn 4 inline,2-3/8IN ODX6IN tall tenon,for vert mt fixture,hub 6INX.250 SSA Pole 12/23/2020 View

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

  • Guideline Specifications

    Document Type Document Title Description Updated View
    Guideline Specification Sheets Pole Arm Selection Guide.xlsx Arms & Brackets Selection Guide 1/12/2021
