Product Image

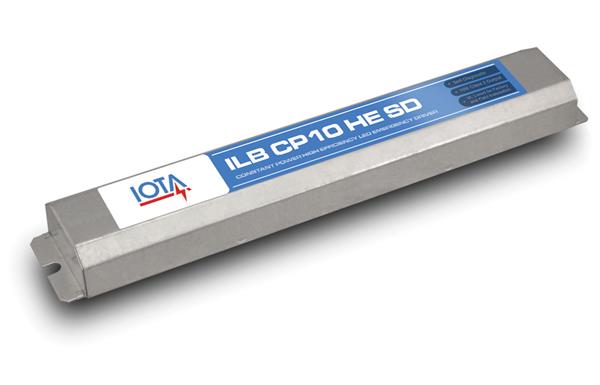

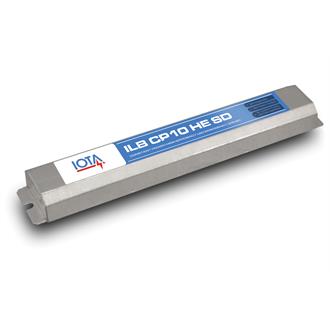

IOTA ILB CP10 HE SD
Video - IOTA Self Diagnostic Models
Video - ILB CP wiring

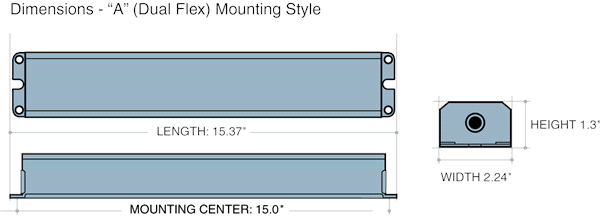

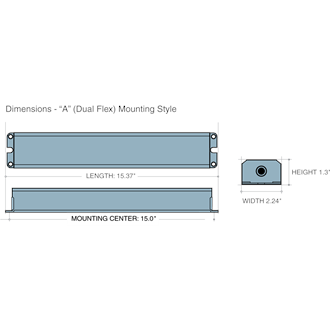

Dimensions - A Mounting Style - Length: 15.37in, Width: 2.24in, Height: 1.3in, Mounting Center: 15in

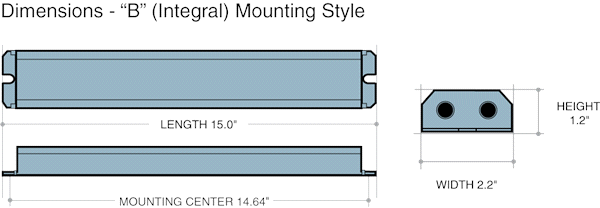

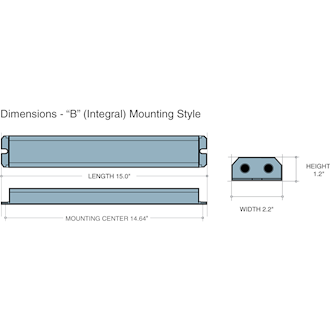

Dimensions - B Mounting Style - Length: 15in, Width: 2.2in, Height: 1.2in, Mounting Center: 14.64in

ILB CP10 HE SD Emergency Driver

10 Watt Constant Power, Self Diagnostic LED Emergency Driver

By IOTA

    CA Title 20
  • Overview
  • Specifications
The ILB CP10 HE SD from IOTA is a UL Listed LED emergency driver that allows the same LED fixture to be used for both normal and emergency operation. In the event of a power failure, the ILB CP10 HE SD switches to the emergency mode and operates the existing fixture for 90 minutes. The unit contains a battery, charger, and converter circuit in a single enclosure and is available in different mounting con-figurations for individual fixture requirements. The integrated self-diagnostic circuitry will automatically conduct monthly 30-second and annual 90-minute tests to verify proper emergency capability per Life Safety Code requirements. The ILB CP10 HE SD features high-efficiency performance and is certified in the CA Title 20 Appliance Efficiency Database.
LED Operation
  • 10 Watts Constant Power
  • 10-60 VDC Nominal Output
Product Advantages
  • Self Test / Self Diagnostics
  • Certified for CA Title 20
  • Auto-Sensing Class 2 Output
  • Constant Power Performance
  • Listed for Field or Factory Installation
Features
  • UL 924 Listed, UL Listed and Classified to FTBV
  • UL 1310 Certified, Output Class 2 Compliant
  • Five mounting configurations available
  • Long life high temperature recyclable Ni-Cad battery
  • Galvanized steel case
  • Includes dual-color TBTS test switch/charge indicator
  • For use with switched or unswitched fixtures
  • Expanded functionality allows tests to be manually initiated or canceled by local switching controls
  • Meets or exceeds all National Electric Code and Life Safety Code Emergency Lighting Requirements
  • Rated for use in Plenum, Damp Location, Recessed Type IC, and Enclosed and Gasketed Luminares
  • RoHS Compliant
  • Patented. Visit iotaengineering.com/patents for more details
Read More
Read Less
Product Type Emergency LED Driver
Voltage Rating 120-277
Frequency 50/60HZ
Load Voltage Rating 10-60 VDC
Output Power 10 Watts
Max. Operating Temp. 55
Min. Operating Temp. 0
Battery Run Time 90 min
Battery Chemistry Type NiCd
Battery Recharge Time 24 hours
Battery Activation Unit Connector
Life Safety Testing Self Diagnostics, Self Test
Regulatory Listing cUL, NFPA 101
Compliance Listing CA Title 20, ROHS
Environmental Listing Damp Location
Series ILB

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET Copy & Paste Specification Sample Specification for ILB CP10 HE SD models 7/16/2020
    SPEC SHEET ILB CP10 HE SD Specifications Specification Sheet for ILB CP10 HE SD Models 5/23/2023 View

  • Photometry & Revit (BIM)

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    3D Model ILB CP10 HE SD A STEP File - ILB CP10 HE SD A (Dual Flex) Mounting Style 7/15/2020
    3D Model ILB CP10 HE SD B STEP File - ILB CP10 HE SD B (Integral, No Flex) Mounting Style 7/15/2020
    3D Model ILB CP10 HE SD J STEP File - ILB CP10 HE SD J (Junction Box) Mounting Style 7/15/2020
    3D Model ILB CP10 HE SD TM STEP File - ILB CP10 HE SD TM (Top Mount) Mounting Style 7/15/2020
    Installation Instructions A (Dual Flex) Mounting Style HE SD A (Dual Flex) Mounting Style 9/24/2019 View
    Installation Instructions B (Integral) Mounting Style HE SD B (Integral) Mounting Style 9/24/2019 View
    Installation Instructions J (Junction Box) Mounting Style HE SD J (Junction Box) Mounting Style 9/24/2019 View
    Installation Instructions R (Reflector) Mounting Style HE SD R (Reflector) Mounting Style 9/24/2019 View
    Installation Instructions RJ (Reflector/Junction Box) Mounting Style HE SD RJ (Reflector/Junction Box) Mounting Style 9/24/2019 View
    Installation Instructions TM (Top Mount) Mounting Style HE SD TM (Top Mount) Mounting Style 9/24/2019 View
    Installation Instructions XB (Push-in-Terminals) Mounting Style HE SD XB (Push-in-Terminals) Mounting Style 12/27/2019 View
    Material Safety Data Sheet MSDS for nickel-cadmium drivers and ballasts Safety Data Sheet for Ni-Cad emergency battery component 5/12/2021 View
    Technical Bulletins Comprensión de la Potencia Constante Maximiza la seguridad en las salidas de emergencia utilizando potencia constante real (CP) 4/12/2021 View
    Technical Bulletins Self Diagnostic Status Codes Understanding and Troubleshooting IOTA Self Diagnostic Status Codes 5/27/2022 View
    Technical Bulletins The Need for Surge Protection IOTA emergency drivers feature enhanced designs for withstanding exposure to electrical surges. 4/5/2021 View
    Technical Bulletins Understanding Constant Power Understand the benefits of IOTA's patented Constant Power emergency LED driver design 2/11/2022 View
    Wiring Diagram Typical Installation DWG File - Typical Installation of ILB CP SD (Self Diagnostic) Models 6/26/2020
    Wiring Diagram Typical Installation PDF File - Typical Installation of ILB CP SD (Self Diagnostic) Models 6/26/2020 View

  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Application Guide Contractor Insider - Auto-Sense Learn how IOTA Auto-Sense simplifies selecting the proper emergency driver for LED luminaires. 2/8/2021 View
    Application Guide Contractor Insider - Emergency Lumen Output A quick guide on understanding how wattage correlates with emergency lumen output 9/15/2021 View
    Application Guide Contractor Insider - Remote Mounting Guidelines A Quick Reference for knowing remote mounting capabilities of emergency lighting solutions. 10/21/2021 View
    Application Guide ILB CP Lumen Reference Chart Quickly identify IOTA LED Emergency Drivers that meet your desired lumen levels 1/25/2022 View
    Application Guide Tabla de Referencia de Lumen de ILB CP Identifique rápidamente los drivers LED de emergencia de IOTA que cumplen con los niveles de lumen deseados 4/12/2021 View
    Brochures IOTA HE Products for California Title 20 IOTA Emergency Lighting Solutions Certified in the Title 20 Appliance Efficiency Database 7/21/2022 View
