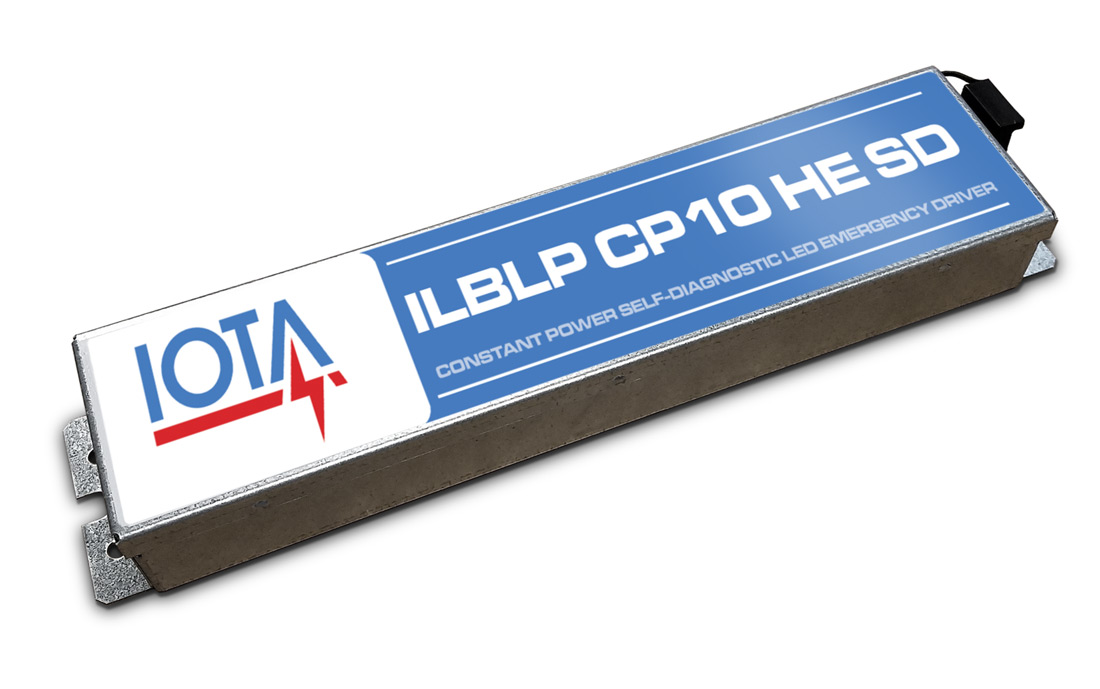

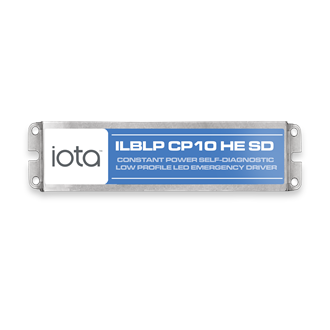

ILBLP CP10 HE SD Emergency LED Driver

10 Watt Constant Power Low Profile Emergency LED Driver with Self Diagnostics and High Efficiency Performance for CA Title 20

By IOTA

    CA Title 20
  • Overview
  • Specifications
The ILBLP CP10 HE SD from IOTA is a UL Listed LED emergency driver that allows the same LED fixture to be used for both normal and emergency operation. In the event of a power failure, the ILBLP CP10 HE SD switches power from the normal AC Driver and operates the fixture for 90 minutes in the emergency mode from the unit’s battery supply. The unit contains a battery, charger, and converter circuit and is available in flexed or non-flex mounting configurations for individual fixture requirements. Features lithium battery technology for significantly decreased form factor and includes automatic monthly and annual self-testing features as standard.
LED Operation
  • 10 Watts Constant Power
  • 15-55 VDC Nominal Output
Product Advantages
  • Constant Power Performance
    Constant wattage delivery maintaines illumination for the full emergency runtime with no degradation
  • Minimum Mounting Footprint
    Lithium battery and narrow enclosure design significantly decreases space requirements without sacrificing output performance
  • Self-Diagnostic / Self-Testing
    Monthly and annual self-testing feature satisfies the periodic testing requirements in accordance with NFPA 101 while the on-board diagnostics provides system readiness with visual indicators
  • Listed for Field or Factory Installation
    UL Listed for both field or factory installation in United States and Canada
Features
  • UL 924 Listed, UL Listed and Classified to FTBV
  • Auto-Sense 15-55VDC output is UL 1310 Certified, Output Class 2 Compliant
  • Galvanized steel case
  • Includes single-piece TBTS test switch and charge indicator accessory kit
  • For use with switched or unswitched fixtures
  • 5-year warranty
  • Meets or exceeds all NEC, IBC, and Life Safety Code Emergency Lighting Requirements
  • Certified for CA Title 20
  • Suitable for use in Plenum, Damp Location, and Recessed Type IC Luminaires
  • RoHS Compliant
Read More
Read Less
Product Type Emergency LED Driver
Voltage Rating 120-277
Frequency 50/60HZ
Load Voltage Rating 15-55 VDC
Output Power 10 Watts
Max. Operating Temp. 55
Min. Operating Temp. 0
Battery Run Time 90 min
Battery Chemistry Type Lithium Iron Phosphate
Battery Recharge Time 24 hours
Battery Activation AC Activate
Life Safety Testing Self Diagnostics, Self Test
Regulatory Listing C-UL-US, cUL
Compliance Listing CA Title 20, ROHS
Series ILBLP

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET Copy & Paste Specification Sample Specification for ILBLP CP10 HE SD models 7/16/2020
    SPEC SHEET ILBLP CP10 HE SD Specifications Specification Sheet for the ILBLP CP10 HE SD Emergency LED Driver 6/7/2021 View
  • Photometry & Revit (BIM)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    3D Model ILBLP CP10 HE SD A 3D STEP file of the ILBLP CP10 HE SD A 3/15/2021
    3D Model ILBLP CP10 HE SD B 3D STEP file of the ILBLP CP10 HE SD B 3/15/2021
    Installation Instructions "A" Mounting Style Installation Manual for ILBLP CP HE SD A Mounting Style Models 6/15/2020 View
    Installation Instructions "B" Mounting Style Installation Manual for ILBLP CP HE SD B Mounting Style Models 6/15/2020 View
    Material Safety Data Sheet MSDS - 16V-9.6V Lithium-ion Material Safety Data Sheet for 16V and 9.6V Lithium-ion batteries 1/7/2022 View
    Technical Bulletins Comprensión de la Potencia Constante Maximiza la seguridad en las salidas de emergencia utilizando potencia constante real (CP) 4/12/2021 View
    Technical Bulletins LP Designs with Advanced Lithium Technology How engineering diligence and careful handling helps improve reliability of IOTA ILBLP drivers 6/25/2020 View
    Technical Bulletins The Need for Surge Protection IOTA emergency drivers feature enhanced designs for withstanding exposure to electrical surges. 4/5/2021 View
    Technical Bulletins Understanding Constant Power Understand the benefits of IOTA's patented Constant Power emergency LED driver design 9/16/2020 View
    Wiring Diagram (English) Typical Installation DWG Format - Typical Installation with TBTS Test Accessory 11/29/2021
    Wiring Diagram (English) Typical Installation PDF Format - Typical Installation with TBTS Test Accessory 11/29/2021 View
    Wiring Diagram (French) Installation Typique DWG Format - Installation typique avec accessoire de test TBTS 6/15/2020
    Wiring Diagram (French) Installation Typique PDF Format - Installation typique avec accessoire de test TBTS 6/15/2020 View
  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Application Guide Contractor Insider - Emergency Lumen Output A quick guide on understanding how wattage correlates with emergency lumen output 9/15/2021 View
    Application Guide Contractor Insider - Remote Mounting Guidelines A Quick Reference for knowing remote mounting capabilities of emergency lighting solutions. 10/21/2021 View
    Application Guide ILB CP Lumen Reference Chart Quickly identify IOTA LED Emergency Drivers that meet your desired lumen levels 4/12/2021 View
    Application Guide Tabla de Referencia de Lumen de ILB CP Identifique rápidamente los drivers LED de emergencia de IOTA que cumplen con los niveles de lumen deseados 4/12/2021 View
    Brochures IOTA Tech Brief: What is AC Activate Understand the key benefits that AC Activate technology brings to the installation process. 11/5/2021 View
    Sell Sheet IOTA-Contractor-Insider_AC-Activate-Explained.pdf How IOTA AC Activate Saves Time and Money on the Jobsite 11/5/2021 View
