Product Image

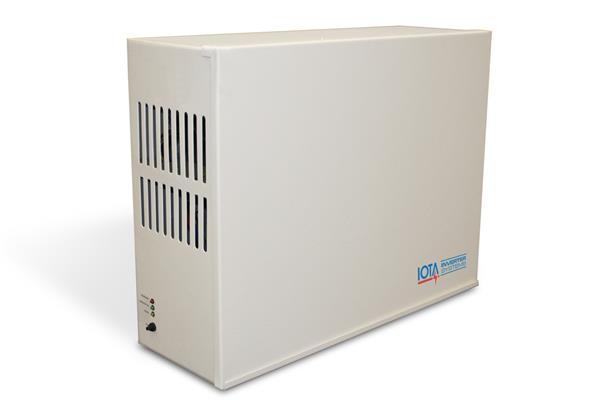

IOTA IIS 375 I
Dimensions - IIS 375 I - Length: 23in, Width: 8.2in, Height: 17.83in

IIS 375 I Emergency Inverter

375 Watt Emergency Inverter

By IOTA

  • Overview
  • Specifications
The IOTA IIS 375 I is a UL Listed stand-alone sine wave output inverter designed to provide power to designated emergency lighting fixtures. In a power loss situation, the IOTA IIS 375 I will supply 375W of power from the onboard battery supply. The IOTA IIS 375 I works in conjunction with fluorescent and incandescent lighting loads and will automatically run switched, normally-on, or normally-off designated emergency fixtures. The IIS 375 I is ideal for applications that utilize multiple lamp and fixture types.
Load Capability
  • 375 Watts
Compatible Load Types
  • Fluorescent
  • Incandescent
Features
  • Emergency lighting supplied from one convenient source
  • Pure sine wave output
  • Operates fixtures with dimmable ballasts and screw-base lamp types
  • Includes momentary contact test switch, yellow ready indicator, green inverter-on indicator, and red charging indicator
  • Variable-rate, temperature compensated charger
  • Valve Regulated Lead Acid (VRLA) battery provides long life and is maintenance free
  • Line voltage allows for remote mounting of emergency fixtures at distances up to 1000 feet
  • Resettable output circuit breaker provides protection against circuit overload
  • Low Battery Voltage Disconnect and Line Latch Protection
  • Allows for emergency operation of switched and unswitched fixtures
  • Meets or exceeds all NEC, IBC, and Life Safety Code Emergency Lighting Requirements
  • Durable 16-gauge steel housing design with white semi-gloss powerder-coat paint finish
Read More
Read Less
Product Type Emergency Inverter
Voltage Rating 120/277
Frequency 60HZ
Load Voltage Rating 120VAC, 277VAC
Output Power 375 Watts
Max. Operating Temp. 30
Min. Operating Temp. 20
Battery Run Time 90 min
Battery Chemistry Type Lead Acid
Life Safety Testing Manual Testing
Regulatory Listing UL
Compliance Listing ROHS
Series IIS

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET IIS 375 I Specifications Specification Sheet for IIS 375 I Models 3/23/2022 View

  • Photometry & Revit (BIM)

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

    Document Type Document Title Description Updated View
    BIM Models IIS 375 I.rfa IIS 375 I 12/16/2021

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions IIS 375 I DR Manual IIS 375 I DR (Dimming Relay) Model 2/22/2021 View
    Installation Instructions IIS 375 I Manual IIS 375 I (Standard) Model 2/22/2021 View
    Material Safety Data Sheet MSDS-HY_Sealed-Lead-Acid-Battery.pdf Safety Data Sheet for Sealed Lead Acid Battery component 5/13/2021 View
    Technical Bulletins IOTA Contractor Insider_Extending-Runtimes.pdf IOTA offers different ways to achieve extended runtimes for 120-minute emergency applications 7/23/2021 View
    Wiring Diagram (DWG) Dimming Relay (DR) Model DWG Format - Connections to an emergency load with a 0-10V dimming control 7/9/2020
    Wiring Diagram (DWG) Dimming Relay (DR) Models - Without Circuit Breaker DWG Format - Connections to an emergency load with a 0-10V dimming control (legacy models - no internal circuit breaker) 7/9/2020
    Wiring Diagram (DWG) Typical Installation DWG Format - Connections to an emergency load with an optional switched input 7/9/2020
    Wiring Diagram (DWG) Typical Installation - Without Circuit Breaker DWG Format - Connections to an emergency load with an optional switched input (legacy models - no internal circuit breaker) 7/9/2020
    Wiring Diagram (PDF) Dimming Relay (DR) Model PDF Format - Connections to an emergency load with a 0-10V dimming control 7/9/2020 View
    Wiring Diagram (PDF) Dimming Relay (DR) Model - Without Circuit Breaker PDF Format - Connections to an emergency load with a 0-10V dimming control (legacy models - no internal circuit breaker) 7/9/2020 View
    Wiring Diagram (PDF) Typical Installation PDF Format - Connections to an emergency load with an optional switched input 7/9/2020 View
    Wiring Diagram (PDF) Typical Installation - Without Circuit Breaker PDF Format - Connections to an emergency load with an optional switched input (legacy models - no internal circuit breaker) 7/9/2020 View

  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Application Guide Contractor Insider - Remote Mounting Guidelines A Quick Reference for knowing remote mounting capabilities of emergency lighting solutions. 10/21/2021 View
    Application Guide IIS Mini and Micro Inverter Remote Mounting Guidelines for remote mounting IOTA IIS mini and micro-inverter systems 1/4/2023 View
    Application Guide Tech App_Mini-Inverters and Outdoor Egress.pdf Understand How IIS Mini Inverters Solve Unique Outdoor Emergency Lighting Challenges 7/23/2021 View

  • Need Product Assistance? (e.g. How to Buy, Technical Support, Warranty)

    How to Buy

    The IOTA products are primarily sold through a network of agents and distributors across North America.

    •  Find an Agent or Distributor

    •  Request a Call

    Technical Support

    The IOTA technical team is dedicated to providing outstanding product support. Please click on the appropriate link below,
    or feel free to call us at 855.363.9527.

    •  FAQs

    •  Technical Library

    •  Email Us

    Warranty

    Please click on the appropriate link below to learn more about IOTA terms & conditions and product warranty options.

    •  IOTA Emergency Products with Batteries

    •  IOTA Emergency Control (ALCR) Devices

    •  IOTA DLS Battery Chargers and Power Converters

    •  IOTA Warranty Replacements & Stock Returns


Stocked

View Stocked Products

  • Stock-Sku-FeedbackIs the new stocked product detail helpful? Please tell us what you think, CLICK HERE.

    SKU data not available, please contact your local agent.

    Clear Filters

    {{getMinimumDisplayedIndex()}} - {{getMaximumDisplayedIndex()}} of {{filteredStockedProducts.length}} results

    {{icon.AltText}}
    Close Details View
    Product Details
    By IOTA
    exclamation-v2-YL
    Product information is not available at this time. Please try again later.
    Catalog #
    {{popupSku.details.SHORT_DESCRIPTION ? popupSku.details.SHORT_DESCRIPTION : 'N/A'}}
    Description
    {{popupSku.details.LONG_DESCRIPTION ? popupSku.details.LONG_DESCRIPTION : 'N/A'}}
    CI Code
    {{popupSku.details.CICODE ? popupSku.details.CICODE : 'N/A'}}
    Pallet Qty
    {{popupSku.details.PALLET_QUANTITY ? popupSku.details.PALLET_QUANTITY : 'N/A'}}
    Weight
    {{popupSku.details.WEIGHT ? popupSku.details.WEIGHT + ' (lbs)' : 'N/A'}}
    UPC
    {{popupSku.details.UPC ? popupSku.details.UPC : 'N/A'}}
    exclamation-v2-YL
    Your session has expired. Click on the login link to view stocked product information.
    Login/Register
    Agent Price Levels
    Name
    Price
    Commision
    {{priceResult.LABEL}} {{priceResult.NO_PRICE_MESSAGE}} ${{priceResult.UNIT_PRICE | number : 2}} {{priceResult.COMM_PCT}} %
    Distr. Price
    Clear
    Name
    Distr. Price
    {{priceResult.LABEL}} ${{priceResult.UNIT_PRICE | number : 2}}
    Price ${{popupSku.Price | number : 2}}
    {{popupSku.noQuotesMessage}}
    Read More
    Read Less
    Clear
    Name
    Distr. Price
    {{priceResult.LABEL}} ${{priceResult.UNIT_PRICE | number : 2}}
    Read More
    Read Less
    Available Inventory (Stocked)
    Qty.
    Est. Ship Date
    Location
    Qty. In Transit
    {{loc.QUANTITY > 0 ? loc.QUANTITY : 0}} {{loc.ESTIMATED_SHIP_DATE}} {{loc.LOCATION}} {{loc.IN_TRANSIT_QUANTITY}}
    Restocking date is unavailable at this time.
    Location Est. Restocking Qty & Date
    {{transitDetail.QUANTITY > 0 ? transitDetail.QUANTITY : 0}}{{transitDetail.ARRIVAL_DATE ? transitDetail.ARRIVAL_DATE : "Date Not Provided"}}
    Production Lead-Time
    Production lead-time is not available at this time.
    Mfg. Time
    Total Time
    Est. Ship Date
    Location
    {{loc.MfgLeadTime}} {{loc.TotalLeadTime}} {{loc.EstShipDate}} {{loc.Location}}
    (No Products Found)
    {{icon.AltText}}
    {{result.Title}}
    {{result.Title}}
    {{result.Description}}
    Quantity
    {{(result.Quantity > 0) ? result.Quantity : 0}} in {{result.Location.substring(result.Location.indexOf("(")+1, result.Location.indexOf(")"))}}
    Total at all DCs: {{result.EnterpriseAvailability}}
    Distr. Price
    ${{result.Price | number : 2}}
    Distr. Price
    Contact Acuity
    Distr. Price
    Contact Rep
    Distr. Price
    GET PRICE
    Distr. Price
    No pricing established

    No Locations Could Be Found.


    This catalog # is not available at any location at this time. Inventory is replenished daily, please check back or contact your local sales representative or agency further details.

    exclamation-v2-YL
    Your session has expired. Click on the login link to view stocked product information.
    Login/Register
    exclamation-v2-YL
    Product information is not available at this time. Please try again later.
    Important Notice Orders entered before noon will ship same day, and orders entered after noon will ship next day within your given timezone.
    Available Est. Ship Date Location In Transit
    {{loc.QUANTITY > 0 ? loc.QUANTITY : 0}} {{loc.ESTIMATED_SHIP_DATE}} {{loc.LOCATION}}     {{loc.IN_TRANSIT_QUANTITY}}
    Restocking date is unavailable at this time.
    Location Est. Restocking Qty & Date
    {{transitDetail.QUANTITY > 0 ? transitDetail.QUANTITY : 0}}{{transitDetail.ARRIVAL_DATE ? transitDetail.ARRIVAL_DATE : "Date Not Provided"}}
    Available
    {{loc.QUANTITY > 0 ? loc.QUANTITY : 0}}
    Est. Ship Date
    {{loc.ESTIMATED_SHIP_DATE}}
    Location
    {{loc.LOCATION}}
    In Transit
    {{loc.IN_TRANSIT_QUANTITY}}
    Restocking date is unavailable at this time.
    Location Est. Restocking Qty & Date
    {{transitDetail.QUANTITY > 0 ? transitDetail.QUANTITY : 0}}
    {{transitDetail.ARRIVAL_DATE ? transitDetail.ARRIVAL_DATE : "Date Not Provided"}}
Configurator

Build Cat. # / Submittal Spec Sheet

  • Start Configurating a Product

Compatible Products

  • Accessories
Close Quick View Modal
sr

View Product Availability

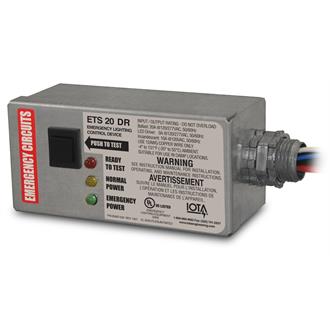

ETS DR Emergency Control Device
