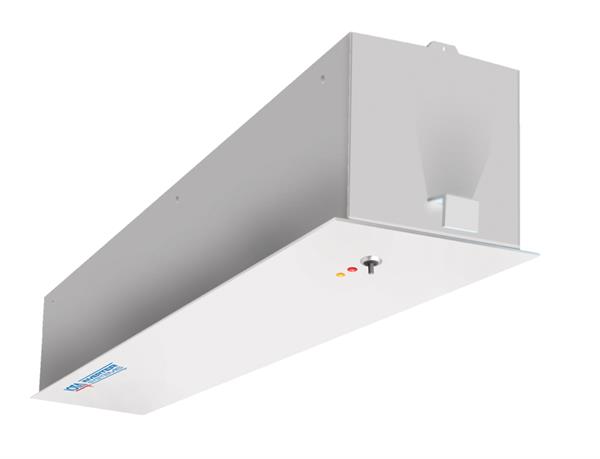

Product Image
IOTA IIS 125 CG
Dimensions - IIS 125 CG - Length: 23.75in, Width: 6.5in, Height: 7.625in, Mounting Brackets: 25.375in by 8in

IIS 125 CG Emergency Inverter

125 Watt Emergency Inverter for Ceiling Grid Mounting

By IOTA

  • Overview
  • Specifications
The IOTA IIS 125 CG is a UL Listed stand-alone modified sine wave output inverter designed to provide power to designated emergency lighting fixtures. In a power loss situation, the IOTA IIS 125 CG will supply 125W of power from the onboard battery supply. The IOTA IIS 125 CG works in conjunction with incandescent, LED, and fluorescent lamp and fixture types and will automatically run switched, normally-on, or normally-off designated emergency fixtures. The IIS 125 CG is ideal for applications requiring an emergency source for lighting arrangements that utilize multiple lamp and fixture types. The IIS 125 CG is designed for installation in the ceiling grid. The IIS-125-CG is not for use in air supply/air return ceilings
Load Capability
  • 125 Watts
Compatible Load Types
  • LED
  • Fluorescent
  • Incandescent
Features
  • Emergency lighting supplied from one convenient source
  • Grid ceiling mounting design
  • Includes momentary contact test switch, yellow ready indicator, green inverter-on indicator, and red charging indicator
  • Open Circuit Isolation protects unit when load is absent
  • Replaceable output fuse protection
  • Variable-rate, temperature-compensated charger
  • Valve Regulated Lead Acid (VRLA) battery provides long life and is maintenance free
  • Line voltage allows for remote mounting of emergency fixtures at distances up to 1000 feet
  • Low Battery Voltage Disconnect and Line Latch Protection
  • Allows for emergency operation of switched or unswitched fixtures
  • Meets or exceeds all NEC, IBC, and Life Safety Code Emergency Lighting Requirements
  • Durable 18-gauge steel housing design with white semi-gloss powder-coat paint finish
Read More
Read Less
Product Type Emergency Inverter
Voltage Rating 120/277
Frequency 60HZ
Load Voltage Rating 120VAC, 277VAC
Output Power 125 Watts
Max. Operating Temp. 30
Min. Operating Temp. 20
Battery Run Time 90 min
Battery Chemistry Type Lead Acid
Life Safety Testing Manual Testing
Regulatory Listing C-UL-US
Compliance Listing ROHS
Series IIS

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET Spec Sheet - IIS 125 CG Ceiling Grid Inverter Spec Sheet for IIS 125 CG Ceiling Grid Inverter 6/16/2021 View

  • Photometry & Revit (BIM)

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

    Document Type Document Title Description Updated View
    BIM Models IIS 125 CG.rfa IIS 125 CG 12/16/2021

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions (English) IIS 125 DR Manual Installation Manual for IIS 125 DR (Dimming Relay) Models 6/17/2021 View
    Installation Instructions (English) IIS 125 Manual Installation Manual for IIS 125 (Standard) Models 6/17/2021 View
    Installation Instructions (Español) IIS 125 Manual Manual de Instalación para Modelos IIS 125 (Estándar) 6/17/2021 View
    Installation Instructions (Français) IIS 125 DR Manual Manuel d'instructions pour les modèles IIS 125 DR 6/17/2021 View
    Installation Instructions (Français) IIS 125 Manual Manuel d'instructions pour les modèles IIS 125 6/17/2021 View
    Material Safety Data Sheet MSDS-HY_Sealed-Lead-Acid-Battery.pdf Safety Data Sheet for Sealed Lead Acid Battery component 5/13/2021 View
    Technical Bulletins IOTA Contractor Insider: Inverters and Inrush.pdf Select the optimal emergency inverter by understanding the causes and impact of inrush on a circuit. 4/12/2021 View
    Technical Bulletins IOTA Contractor Insider_Extending-Runtimes.pdf IOTA offers different ways to achieve extended runtimes for 120-minute emergency applications 7/23/2021 View
    Wiring Diagram (DWG) Typical Installation DWG Format - Typical installation of an IIS 125 with optional switched input 7/9/2020
    Wiring Diagram (PDF) Typical Installation PDF Format - Typical installation of an IIS 125 with optional switched input 7/8/2020 View
