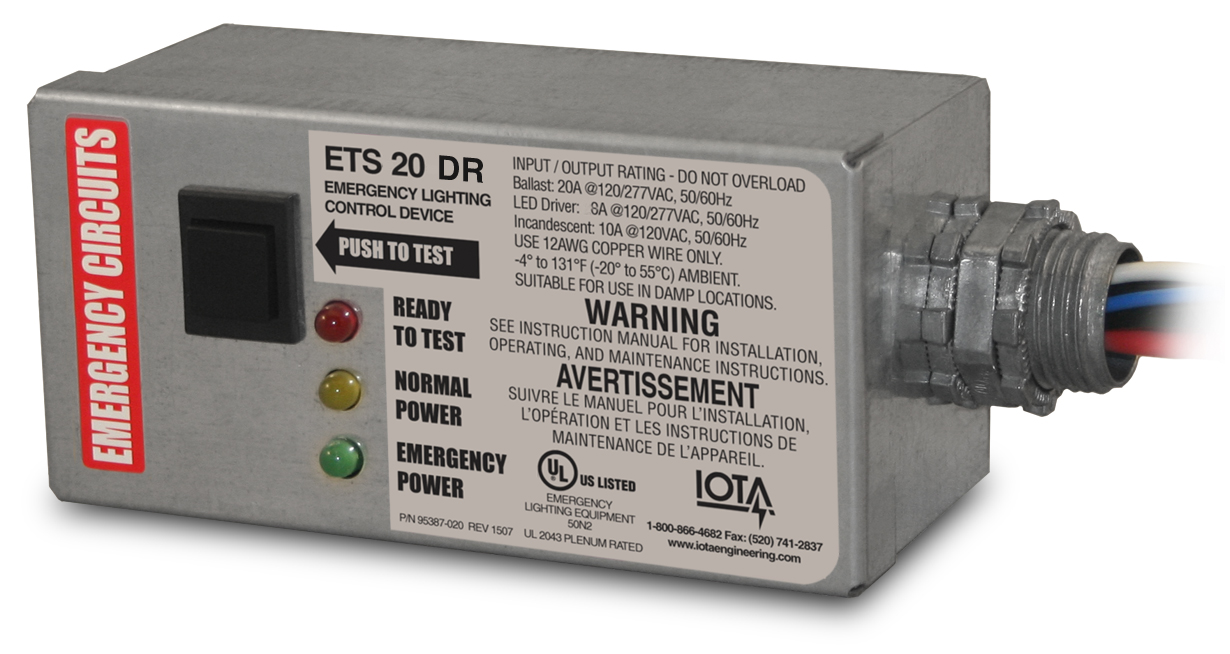

ETS20 DR Emergency Control Device

Emergency Control Device for Multi-Fixture Auxiliary Power Applications with 0-10V Dimming

By IOTA

  • Overview
  • Specifications
The ETS-20 Emergency Lighting Control Device allows the use of auxiliary generator or inverter power on switched fixtures in power failure situations. The ETS-20 senses the loss of normal AC power and bypasses local control devices such as switches, occupancy sensors, or timers, providing emergency power to the fixtures regardless of the control setting. The ETS-20 allows for operation of the load at full light output until normal power is restored or for as long as the generator or inverter supply is available. The ETS-20 will work in conjunction with any fixture on the designated 20 amp circuit per rated specifications. The dimming relay leads accommodate two 0-10 volt dimming zone controls, providing full light output in both zones during emergency mode regardless of dimmer setting.
Product Advantages
  • Allows operation of switched or dimmed fixtures on an auxiliary generator or inverter supply
  • Promotes energy savings by eliminating the need for multiple always-on fixtures
  • Full Light Output
  • Dimming Relay leads allows for dual zone dimming controls
Features
  • UL 924 Listed
  • LED indicators for determining functional readiness and operation modes
  • Galvanized steel housing
  • Simplified junction box installation
  • Meets or exceeds all NEC, IBC, and Life Safety Code Emergency Lighting Requirements
  • Unit temperature can withstand a condition range of -20°C to 55°C
  • Suitable for use in plenum and damp location applications
  • RoHS Compliant
  • Optional jumper loop for connection to alarm, security panel, or other remote trigger device
Read More
Read Less
Product Type Emergency Control Device
Voltage Rating 120/277
Frequency 50/60HZ
Max. Controlled Current 10A, 20A, 8A
Max. Operating Temp. 55
Min. Operating Temp. -20
Life Safety Testing Manual Testing
Regulatory Listing C-UL-US, NFPA 101, UL
Compliance Listing ROHS
Series ETS20
  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET ETS20 DR Specifications Specification Sheet for the IOTA ETS20 DR (Dimming Relay) Model 5/26/2020 View
  • Photometry & Revit (BIM)

  • Spectral Data Sheets

  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    3D Model ETS20 STEP File - 3D Model of ETS20 models 7/15/2020
    Installation Instructions ETS20 DR Manual Instruction Manual for the ETS20 DR 5/26/2020 View
    Technical Bulletins ETS20 Reference Guide Technical Article on the Unique Features of the ETS20 and ETS20 DR 9/19/2019 View
    Wiring Diagram Dual Zone Dimming PDF File - Typical Generator Application with Dual Zone Dimming 9/19/2019 View
    Wiring Diagram Dual Zone Dimming DWG File - Typical Generator Application with Dual Zone Dimming 9/19/2019
    Wiring Diagram Emergency Inverter PDF File - Dual Zone Dimming Application with Emergency Inverter 9/19/2019 View
    Wiring Diagram Emergency Inverter DWG File - Dual Zone Dimming Application with Emergency Inverter 9/19/2019
  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Application Guide IOTA Contractor Insider_ALCR and dimming.pdf Learn how Dimming Relay leads save time and money when using ALCRs in 0-10V dimming applications. 7/13/2021 View
