Your Feature-Packed Solution for Demanding
Environments Since 1977

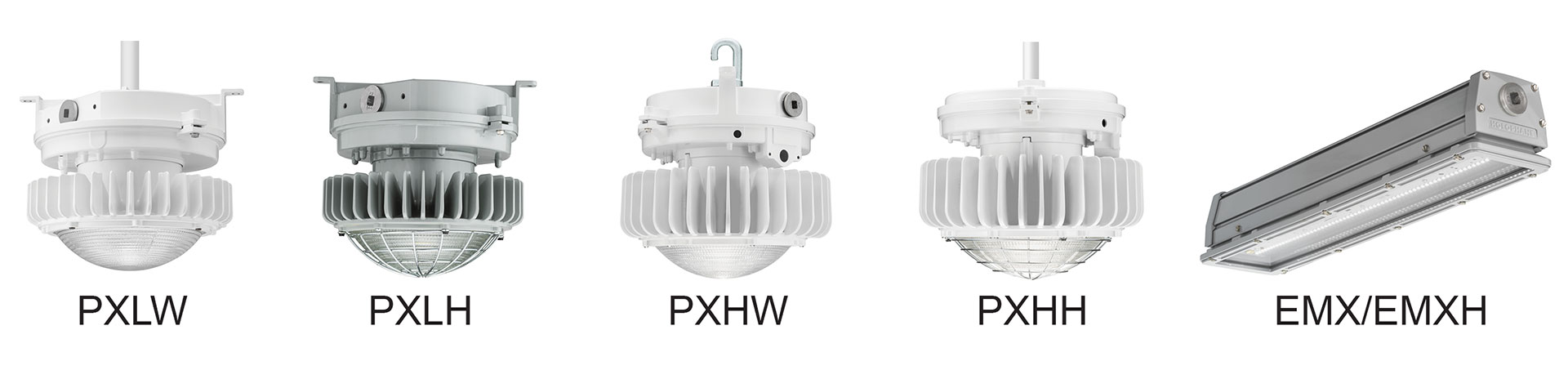

Petrolux Product Family
![HL-Petrolux-fam-product-image-pxlw](/-/media/abl/holophane/images/family-pages/petrolux/hl-petrolux-fam-product-image-pxlw.jpg?h=400&w=800&la=en&hash=4B3E3DDAB9A74E153E80EEA60D74F3BA)
PXLW Low Bay
- Over 175 configurations on the DLC Premium or Standard Qualified Products List
- IP65, IP66, IP67, NSF, Marine and NEMA 4X ratings
- Corrosion-resistant paint
- Title 20 battery pack
- Button or NEMA twist-lock photocell
- Patent-Pending Silicone optic in the medium and long & narrow distributions
- Control options to meet your needs with - Bluetooth® Programmable Sensors (SBG BTP), XPoint™ or nLight® AIR wireless controls
![HL-Petrolux-fam-product-image-pxlw-top-cap](/-/media/abl/holophane/images/family-pages/petrolux/hl-petrolux-fam-product-image-pxlw-top-cap.jpg?h=400&w=800&la=en&hash=A855B70C5A107D52F3DFC90900679143)

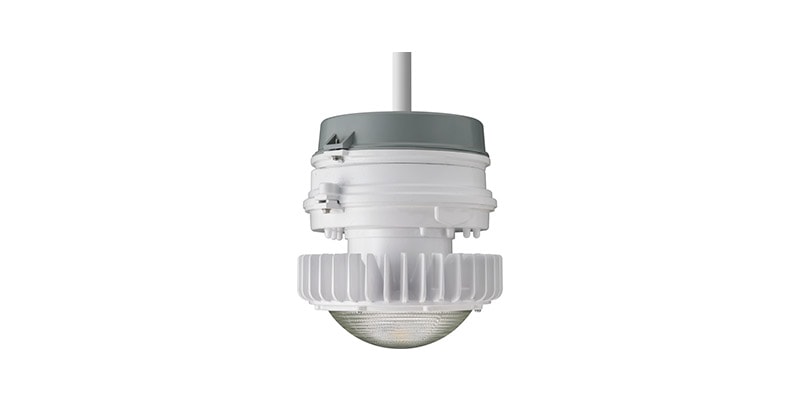

PXLW AR with Top Cap Adaptor
- The ultra-lightweight PXLW Top Cap Adapter is designed to retrofit the most common low bay HID fixtures without the costly and time-consuming drawback of rewiring and replacing the full fixture.
- Compatible with common HID fixtures including Holophane® Petrolux® II and III, PLED 1 and PLED 2
- Single LED replacement up to 250W HID, saves up to 70% energy and practically eliminates maintenance costs
- Reliable, long-lasting illumination throughout its 100,000-hour rated life
- Multiple lumen packages ranging from 3,000 to 10,000 lumens
![HL-Petrolux-fam-product-image-pxlh](/-/media/abl/holophane/images/family-pages/petrolux/hl-petrolux-fam-product-image-pxlh.jpg?h=400&w=800&la=en&hash=D807D3374AABC9B6CF55FDEB1AF9F175)

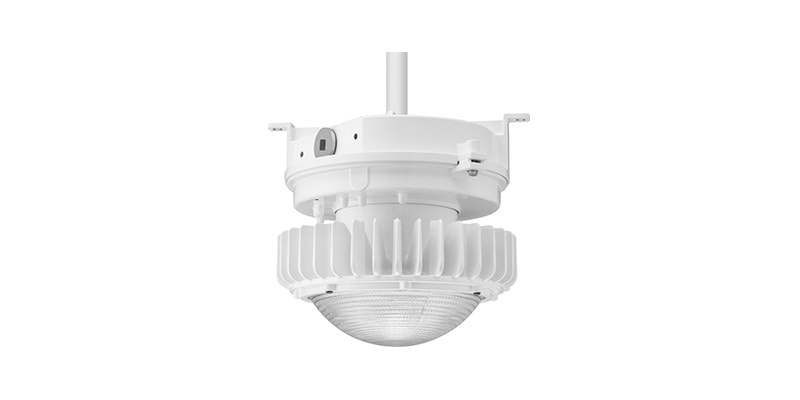

PXLH Low Bay
- UL844 with Class 1, Division 2 Groups A, B, C, D Class 2, Division 2 Groups F and G
- IP65, IP66, IP67, Marine, and 1G vibration rated
- Corrosion-resistant paint
- Button photocell
- Patent-pending silicone and glass optics
- DLC Premium Qualified products
- Battery pack options
- Available with Bluetooth® Programmable Sensors (SBG BTP)
![HL-Petrolux-fam-product-image-pxlh-top-cap](/-/media/abl/holophane/images/family-pages/petrolux/hl-petrolux-fam-product-image-pxlh-top-cap.jpg?h=400&w=800&la=en&hash=95E1CF7685EFF7DB6BCC60FD46CFF584)
PXLH AR with Top Cap Adaptor
- The hazardous rated, ultra-lightweight PXLH Top Cap Adapter is designed to retrofit the most common low bay HID fixtures without the costly and time-consuming drawback of rewiring and replacing the full fixture
- IP65 and IP66 all versions, IP67 on most
- Compatible with common HID fixtures including Holophane® Petrolux® II and III and HPLED
- Single LED replacement up to 250W HID, saves up to 70% energy and practically eliminates maintenance costs
- Reliable, long-lasting illumination throughout its 100,000-hour rated life
- Multiple lumen packages ranging from 3,000 to 10,000 lumens
![HL-Petrolux-fam-product-image-pxhw](/-/media/abl/holophane/images/family-pages/petrolux/hl-petrolux-fam-product-image-pxhw.jpg?h=400&w=800&la=en&hash=BFCD70A7C7D0671C291B518BE73A1BD4)

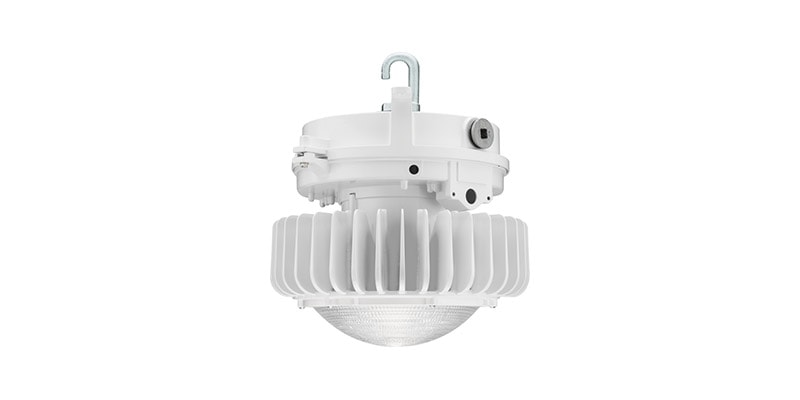

PXHW High Bay
- Single LED replacement up to 400W HID saving energy and maintenance
- IP65, IP66, IP67, NSF, Marine, and NEMA 4X rated
- Rated for high ambient at 65°C
- 12,000 to 28,000 lumens
- Patent-pending silicone optic in multiple distributions
- DLC Premium Qualified products
- Control options to meet your needs with - Bluetooth® Programmable Sensors (SBG BTP), XPoint™ or nLight® AIR wireless controls
![HL-Petrolux-fam-product-image-pxhh1](/-/media/abl/holophane/images/family-pages/petrolux/hl-petrolux-fam-product-image-pxhh1.jpg?h=400&w=800&la=en&hash=867A204F7F47C7CA9B4E606F927FA26A)

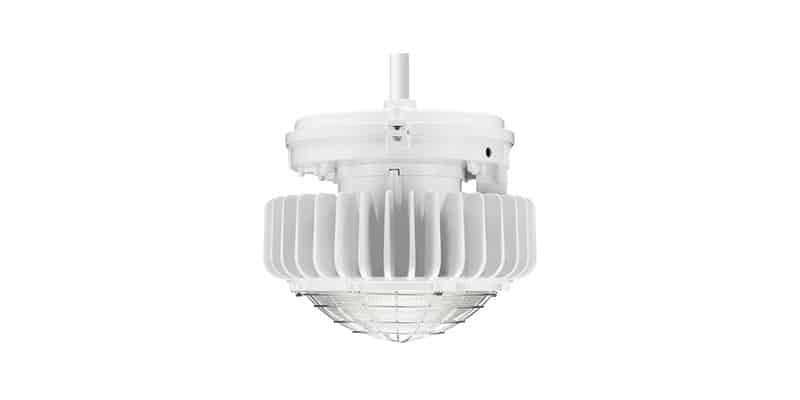

PXHH High Bay
- Single LED replacement up to 400W HID saving energy and maintenance
- Rated to handle hazardous environments
- Rated for high ambient at 65°C
- 12,000 to 28,000 lumens
- Patent-pending silicone optics
- Bluetooth® Programmable Sensors (SBG BTP)
![HL-Petrolux-fam-product-image-emx](/-/media/abl/holophane/images/family-pages/petrolux/hl-petrolux-fam-product-image-emx.jpg?h=400&w=800&la=en&hash=61D7D4FDE937C7796C86F5B4AF5EDBE5)

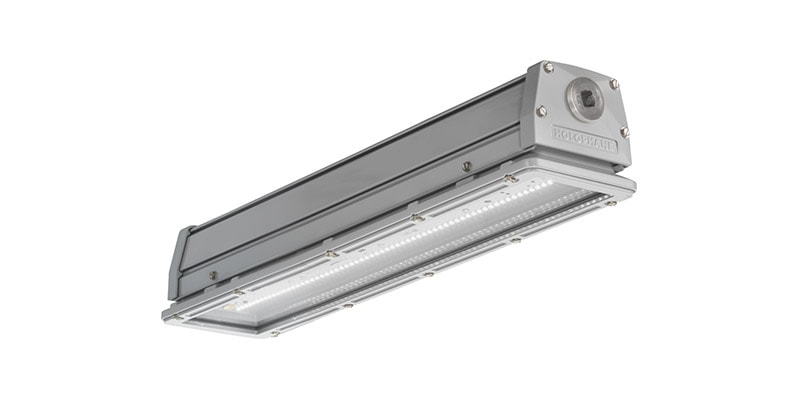

EMX – Heavy Industrial Linear LED Low Bay
- CSA Ambient up to 70°C
- Wet location listed
- IP65, IP66, IP67, IP69K rated
- DLC Parking Garage Certified optics
- 10kV surge suppression standard
![HL-Petrolux-fam-product-image-emxh](/-/media/abl/holophane/images/family-pages/petrolux/hl-petrolux-fam-product-image-emxh.jpg?h=400&w=800&la=en&hash=3541BEE975A50E62078A241E596A341A)

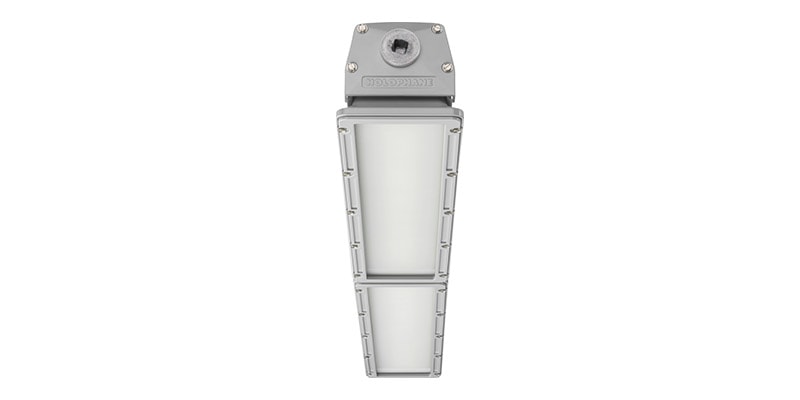

EMXH – Hazardous Industrial Linear LED Low Bay
- CSA Hazardous Location C1D2, C2D2, C3
- rSBG Sensor (pictured right) for nLight® Networked Lighting Controls
- High efficiency LEDs and drivers capable for up to 159 LPWs
Applications Featured
![](/Assets/img/compare-remove.png)
![PXLW-Modal_Image](/-/media/abl/holophane/images/family-pages/petrolux/pxlw-modal_image.jpg?h=800&w=1200&la=en&hash=F3D77BD99D851EFC9D6CC1DFBBD5BD93)

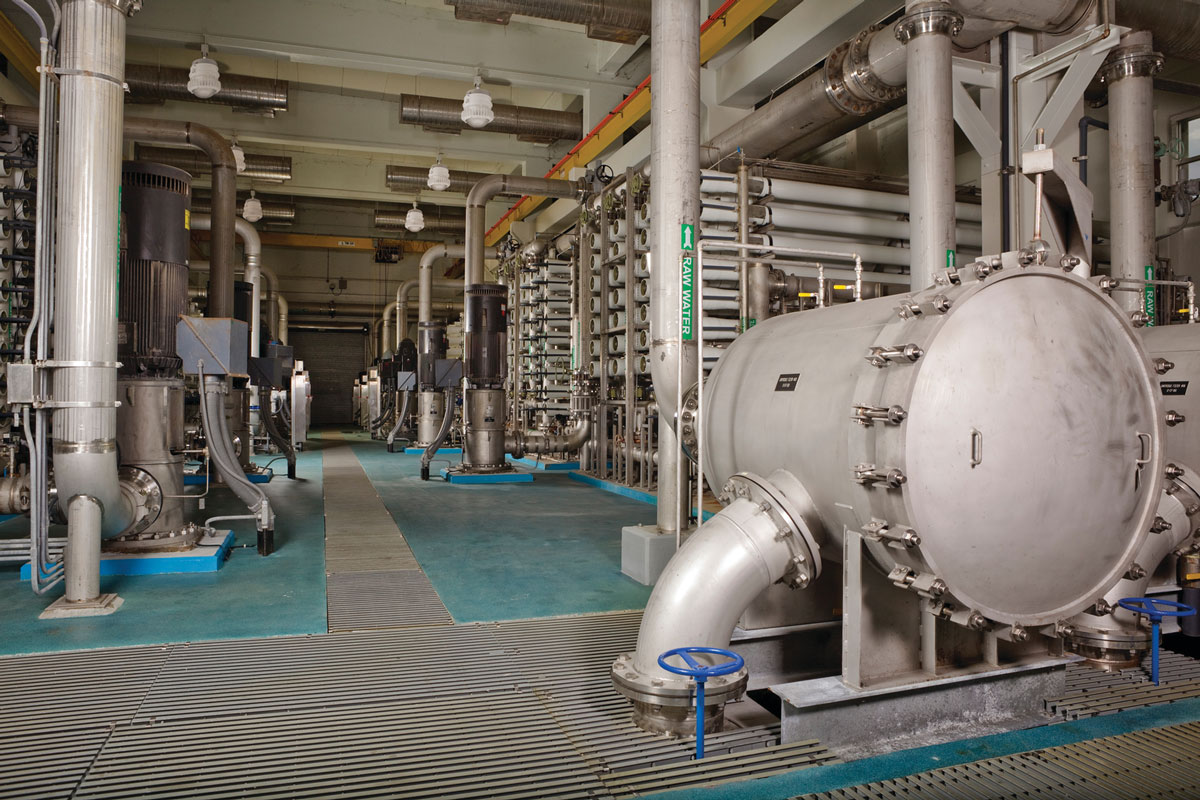

PXLW
Waste Water Treatment
This low bay meets or exceeds the code requirements to be used in harsh industrial applications including textile mills, water treatment and wastewater treatment facilities
![PXLW-Modal_Image](/-/media/abl/holophane/images/family-pages/petrolux/pxlw-modal_image.jpg?h=800&w=1200&la=en&hash=F3D77BD99D851EFC9D6CC1DFBBD5BD93)
![](/Assets/img/compare-remove.png)
![PXLH-Modal_Image](/-/media/abl/holophane/images/family-pages/petrolux/pxlh-modal_image.jpg?h=800&w=1200&la=en&hash=CC0A89484049D6789384B7CCEC622077)
PXLH

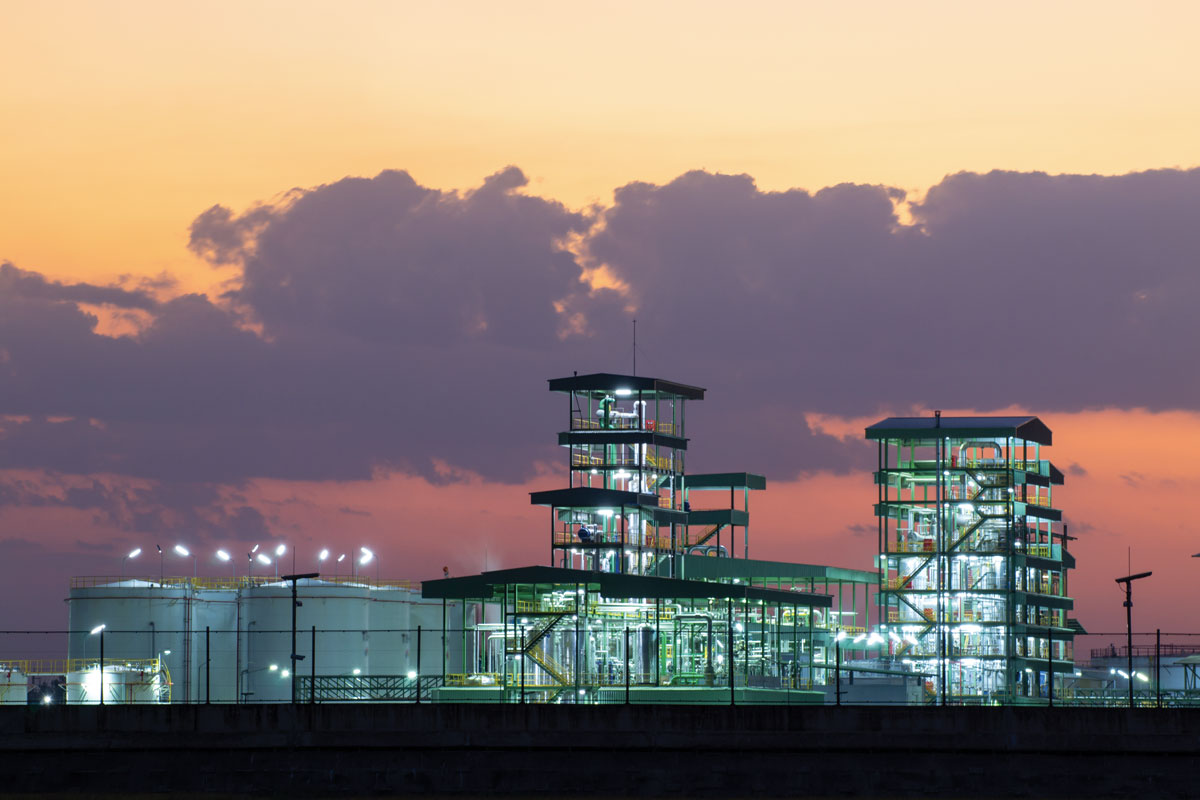

Refinery
This round low bay meets or exceeds the code requirements to be used in hazardous location applications including petroleum refineries, ethanol facilities, chemical plants, power plants
![PXLH-Modal_Image](/-/media/abl/holophane/images/family-pages/petrolux/pxlh-modal_image.jpg?h=800&w=1200&la=en&hash=CC0A89484049D6789384B7CCEC622077)
![](/Assets/img/compare-remove.png)
![PXHW-Modal_Image](/-/media/abl/holophane/images/family-pages/petrolux/pxhw-modal_image.jpg?h=800&w=1200&la=en&hash=1C154434674A350B71C548A94FEEA2C2)

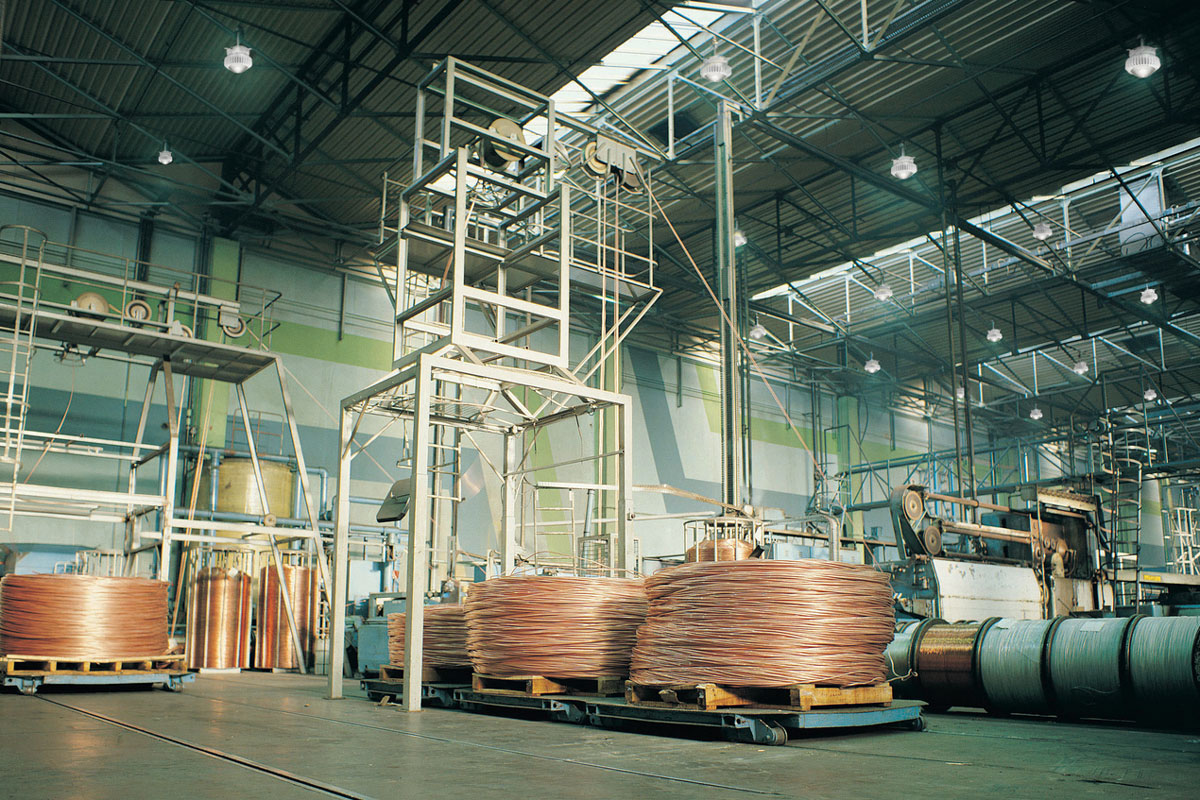

PXHW
Manufacturing Plant
This round high bay is the feature-packed solution for the demanding environments where dust, dirt and moisture are a concern
![PXHW-Modal_Image](/-/media/abl/holophane/images/family-pages/petrolux/pxhw-modal_image.jpg?h=800&w=1200&la=en&hash=1C154434674A350B71C548A94FEEA2C2)
![](/Assets/img/compare-remove.png)
![EMXH-Modal_Image](/-/media/abl/holophane/images/family-pages/petrolux/emxh-modal_image.jpg?h=800&w=1200&la=en&hash=D643849156B25BF9F723DAD922706F89)
EMXH

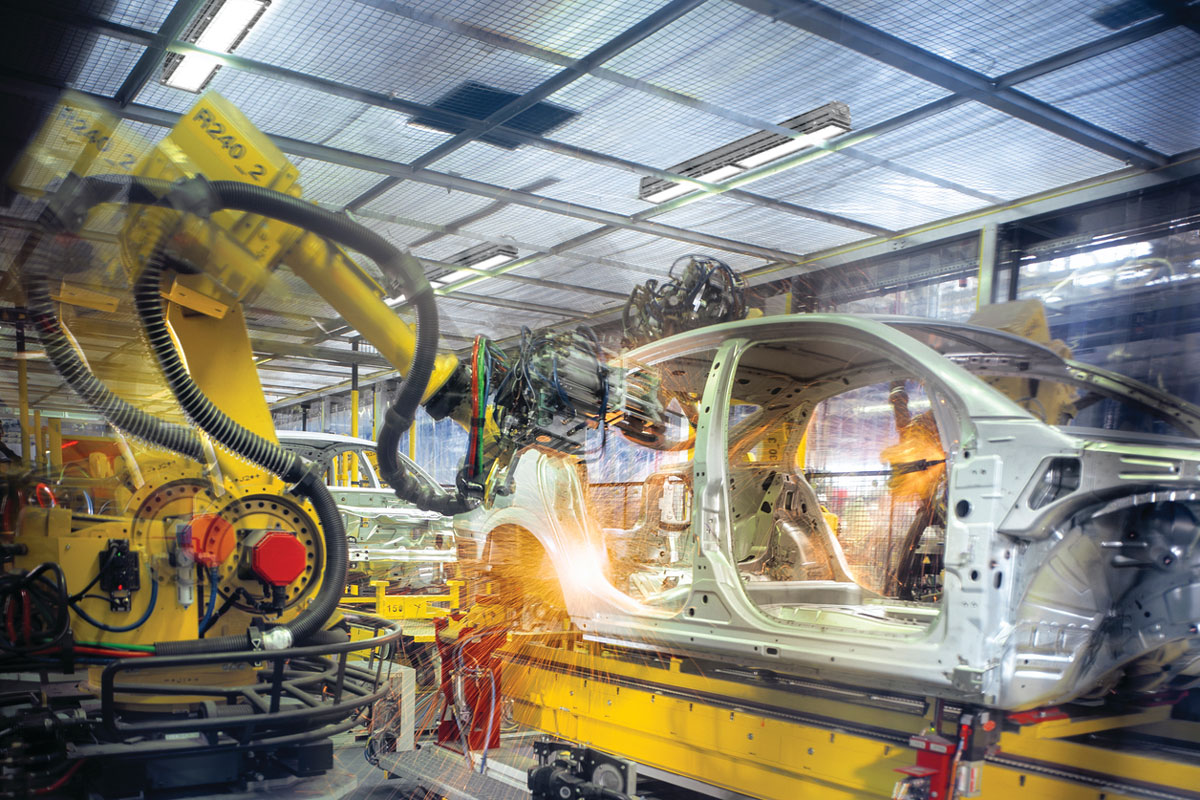

Industrial Plant
This high abuse, high heat, high seal fixture is perfect for your heavy-duty industrial applications where strength and toughness are paramount
![EMXH-Modal_Image](/-/media/abl/holophane/images/family-pages/petrolux/emxh-modal_image.jpg?h=800&w=1200&la=en&hash=D643849156B25BF9F723DAD922706F89)
![](/Assets/img/compare-remove.png)
![EMX-Modal_Image](/-/media/abl/holophane/images/family-pages/petrolux/emx-modal_image.jpg?h=799&w=1200&la=en&hash=DD9379887083D58B5B25FD8B6BB81F12)

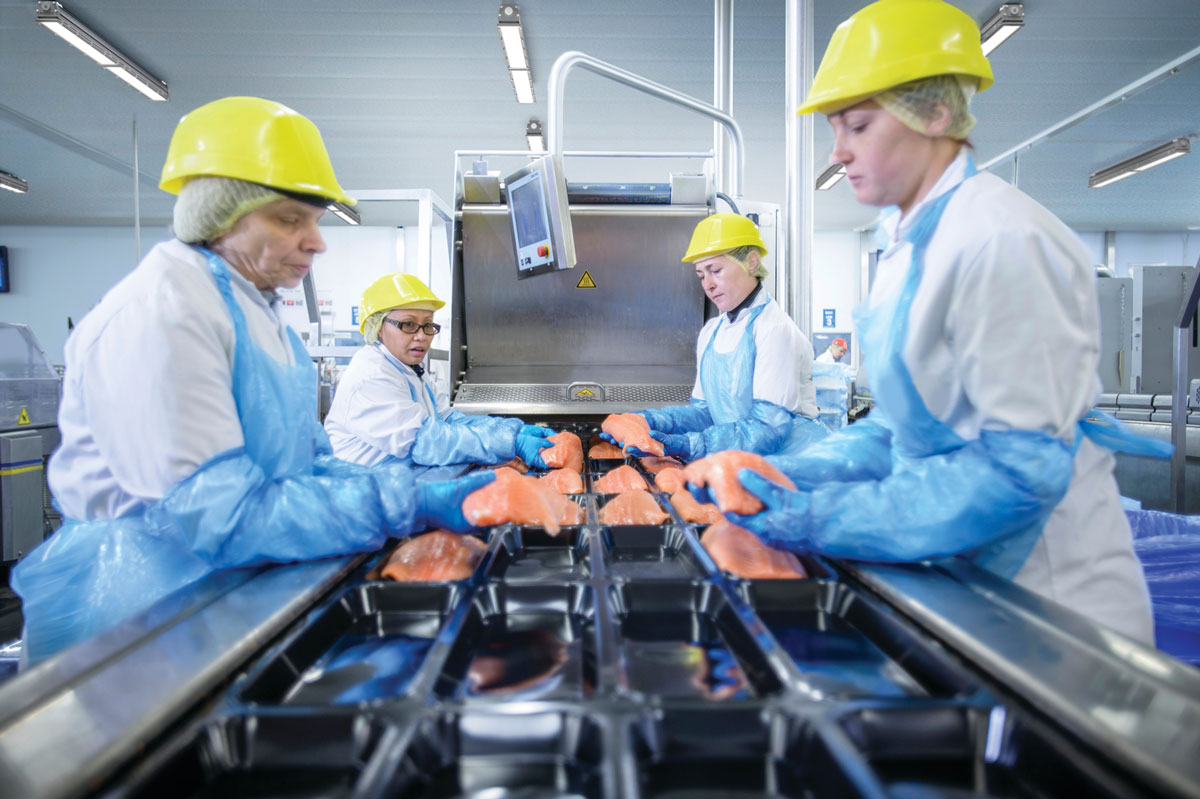

EMX
Food Processing
This heavy duty low bay brings new levels of durability and design to hazardous industrial applications
![EMX-Modal_Image](/-/media/abl/holophane/images/family-pages/petrolux/emx-modal_image.jpg?h=799&w=1200&la=en&hash=DD9379887083D58B5B25FD8B6BB81F12)
![Petrolux-nLight-AIR-Enabled-image1](/-/media/abl/holophane/images/family-pages/petrolux/petrolux-nlight-air-enabled-image1.jpg?h=400&w=800&la=en&hash=3503C7E53C1CCEF73294F11AB55B0DC2)
Controls
nLight® AIR wireless lighting controls are a smart solution for simplifying installation and aiding in energy code compliance.
Benefits:
- Energy and Labor savings
- Easy to use embedded sensor
- Scalability
- Aids in Code Compliance
