rPODL Switch
By nLight
- Overview
- Specifications

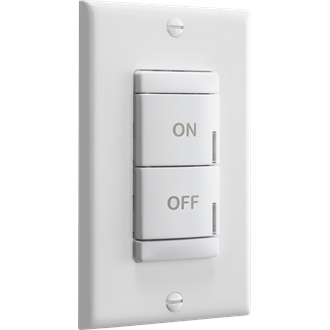

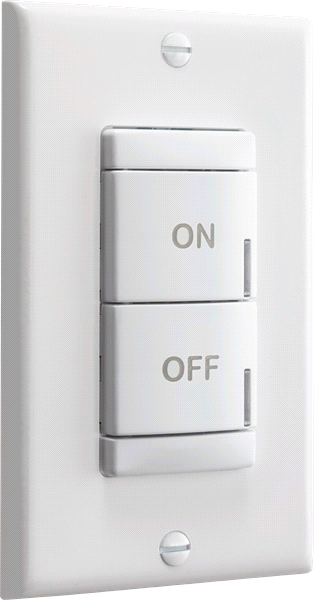

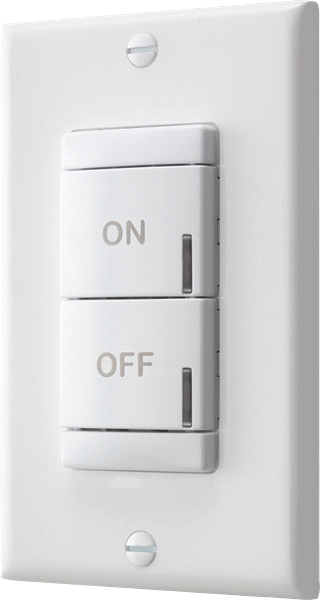

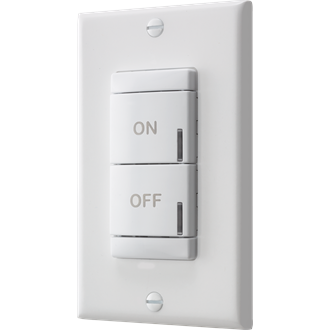

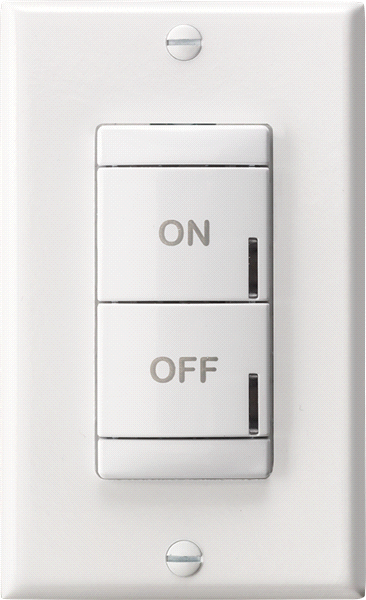

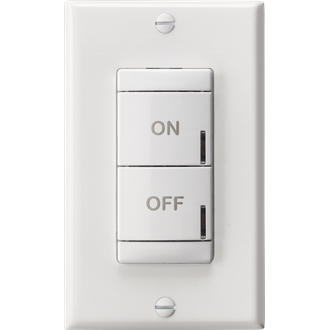

The nLight® AIR rPODL is a wireless, line-powered wall switch providing a user with local control of a lighting zone featuring toggle and/or raise lower with optional multi-pole control in a single gang decorator style with soft-click buttons. Ideal for commercial office, education, healthcare, municipalities, and retail renovation projects, the rPODL helps to save installation time using existing wiring, while offering more wall switch design options for nLight projects.
The rPODL wall switch communicates wirelessly with other nLight AIR devices. The rPODL wall switch can work with any nLight AIR enabled fixture or power pack to provide toggle switch operation. Wall switches with the DX option have a raise/lower ability to adjust the level of any nLight AIR controlled dimmable light fixture. With optional 2 or 4 scene switches, a customized scene can be created for groups of fixtures to quickly and easily control the lights to desired levels in the space.
As part of the nLight AIR wireless controls family, the rPODL switch uses a 900MHz communication frequency that easily penetrates obstructions, and its five-tier security architecture helps building owners and occupants rest easy.
To learn more about nLight AIR wireless controls please contact your local lighting representative or visit the nLight AIR systems page.
Features:
•120-277V and 347V options
• Custom button engraving at no charge (WH, IV, AL GY units only)
• 1 or 2 on/off, 1 or 2 raise/lower, and 2 or 4 scene buttons
• Custom button engraving at no charge (WH, IV, AL GY units only)
• Easy integration with the nLight ECLYPSE® via nLight AIR adapter for more advanced control strategies like time-based scheduling, demand response and to connect with BACnet™, cloud-based applications, and remote-control capabilities
• CLAIRITY™+ mobile application configuration makes configuration easy - no specialized tools or software to learn
| Control Device Type | Dimming Switch, Scene Switch |
| Mounting Type | Surface |
| Product Type | Switch |
| Color | Black, Gray, Ivory, Light Almond, Red, White |
| Finish | Gloss |
| Voltage | 120-277, 347 |
| Compliance Listing | CA Title 24, DLC Standard, ROHS |
| Regulatory Listing | C-UL-US, UL |
| Series | RPODL |
-
Suggested Replacement Products
PRODUCT INFORMATION
-
Spec Sheets
-
Photometry & Revit (BIM)
-
Spectral Data Sheets
-
Guideline Specifications
-
Revit Component Files (Non-Illuminated)
-
Technical Documents (e.g. Instruction Sheets, MSDS, CAD)
Document Type Document Title Description Updated View 2D Model rpodl2p347G2.dwg 8/28/2019 View 2D Model rpodl2pdx347G2.dwg 8/28/2019 View 2D Model rpodl2pdxmvoltG2.dwg 8/28/2019 View 2D Model rpodl2pmvoltG2.dwg 8/28/2019 View 2D Model rpodl347G2.dwg 8/28/2019 View 2D Model rpodldx347G2.dwg 8/28/2019 View 2D Model rpodldxmvoltG2.dwg 8/28/2019 View 2D Model rpodlmvoltG2.dwg 8/28/2019 View Installation Instructions rPODL_912-00078-002.pdf nLight AIR rPODL Wall Switch Installation Instructions 5/18/2021 View Riser Model rpodl2p347G2 riser.dwg 8/28/2019 View Riser Model rpodl2pdx347G2 riser.dwg 8/28/2019 View Riser Model rpodl2pdxmvoltG2 riser.dwg 8/28/2019 View Riser Model rpodl2pmvoltG2 riser.dwg 8/28/2019 View Riser Model rpodl347G2 riser.dwg 8/28/2019 View Riser Model rpodldx347G2 riser.dwg 8/28/2019 View Riser Model rpodldxmvoltG2 riser.dwg 8/28/2019 View Riser Model rpodlmvoltG2 riser.dwg 8/28/2019 View User Manual CLAIRITY PRO Quick Start Guide.pdf (Archived) CLAIRITY PRO Quick Start Guide 1/21/2020 View -
