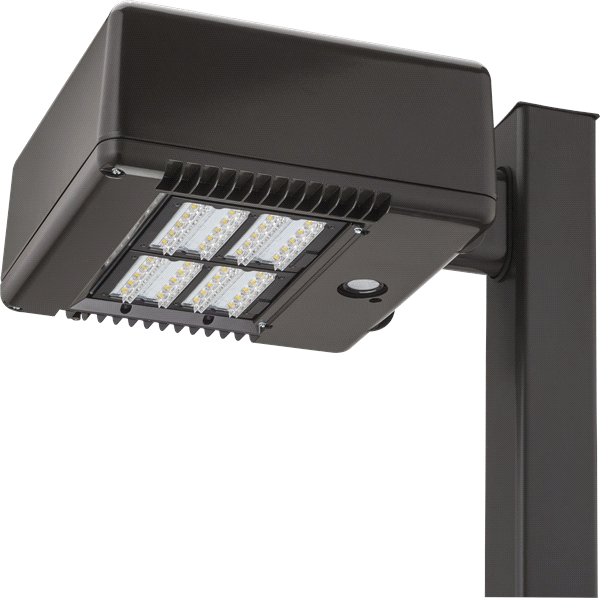

KAD-LED

LED Contour® Soft Square Discontinued
    DLC StandardBuy America(n) Option AvailableBuy America(n) Option Available
  • Specifications
Read More
Read Less
Light Source LED - Static
Lumens 4000 LM, 5000 LM, 6000 LM, 7000 LM, 8000 LM, 9000 LM, 10,000 LM, 11,000 LM, 12,000 LM, 13,000 LM, 14,000 LM, 15,000 LM, 16,000 LM, 17,000 LM, 18,000 LM, 19,000 LM, 20,000 LM, 21,000 LM, 22,000 LM
CCT / LED Color 3000 K, 4000 K, 5000 K
CRI 70
Product Type Area Light
Regulatory Listing CSA
Control Platform Sensor Switch Standalone
Fixture Wattage 103, 108, 137, 141, 216, 35, 45, 53, 59, 71, 73, 94
Voltage Rating 120, 120-277, 208, 240, 277, 347, 480
Color Black, Bronze, Silver, White
Mounting Type Pole Mount
Series KAD

Read More Read Less

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet Contour® Soft Square, LED Contour® Soft Square, LED 8/29/2023 View

  • Photometry & Revit (BIM)

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions INST SHT KMA RJ5210162 REV B PSL07 Mast Arm Adapter (for 2-3/8 inch OD mast arm) 1/25/2018 View
    Installation Instructions INST SHT WBA 2018 RJ521505 REV D.pdf Installation Instructions for wall bracket (WBA) 8/8/2022 View
    Installation Instructions Installation Instructions Degree Arm Pole Mounting Degree Arm Pole Mounting 6/11/2014 View
    Installation Instructions Installation Instructions Degree Arm Wall Mounting Degree Arm Wall Mounting 6/11/2014 View
    Installation Instructions Installation Instructions Mounting Area Arm Mounting for use with Drill Template 5, 6, or 7 8/28/2018 View
    Installation Instructions KAD WBA INST SHEET RJ521306 REVB PSL07 Square arm wall bracket 5/2/2017 View
    Installation Instructions KAD-LED Installation Instructions KAD-LED Installation Instructions 3/30/2015 View
    Installation Instructions KAD-LED PUMBAK Instruction Sheet KAD-LED PUMBAK Instruction Sheet 12/17/2014 View
    Templates TD-drill5 Pole drill template 8/28/2018 View
    Templates TD-drill6 Wall mount drill template 8/28/2018 View
