EC-BOS-8

by Distech Controls

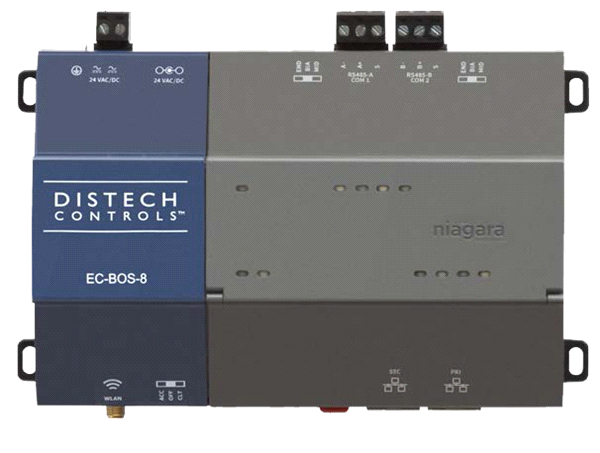

The EC-BOS-8 is a compact, embedded controller and server platform for connecting multiple and diverse devices and sub-systems. With Internet connectivity and Webserving capability, the EC‑BOS‑8 provides integrated control, supervision, data logging, alarming, scheduling and network management. It streams data and graphical displays to a standard Web browser via an Ethernet or wireless LAN, or remotely over the Internet. The EC-BOS-8 operates with EC-NetTM 4 web-based building management platform powered by the Niagara Framework®. The ECBOS-8 can also run EC-Net Access for managing access control systems.

Features and Benefits

  • Scalable licensing model and modular hardware make the ECBOS-8 suitable for installation in small buildings, as well as large multi-unit campuses when combined with EC-Net Supervisor
  • Integrates many communication protocols and automation systems including HVAC, lighting, energy, fire & smoke, physical access, video and industrial/processing
  • Two on-board isolated RS-485 ports for connecting to various common networks, e.g. BACnet MS/TP, Modbus RTU, Wiegand access control devices
  • Option modules for additional physical network connections, e.g. LonWorks® FTT-10A, RS-232, RS-485, and Wiegand access readers
  • USB type A port for station backup and restore functions
  • Backward compatibility allows the EC-BOS-8 to run an EC-NetAX station (minimum requirement is 3.8.111)
  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Photometry & BIM

    • Request BIM or IES Files

      Please be specific with your request and suggest adding a “need by date” if urgent request Note: Your request will be routed to either the BIM or IES team. Thank you.
  • Specifications

    Brand Distech Controls
    Product Family Building Automation System
    Subcategory EC-BOS
    Sales Regions US, OC, ME, EU, CSA, CA, AS
