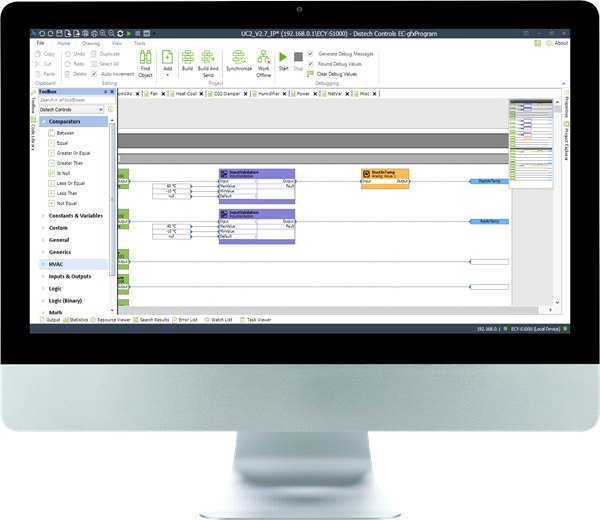

EC-gfxProgram Graphical Programming Interface

By Distech Controls

  • Overview
  • Specifications

Common graphical programming tool for BACnet ECB and LONWORKS ECL Series Programmable Controllers and ECLYPSE series controllers

  • For use with EC-NetAX, or standalone (LNS, BACnet, ECLYPSE BACnet/IP)
  • Provides an intuitive and customizable block-oriented programming environment
  • Complete with gfxApplications, an extensive library of pre-engineered, energy-efficient HVAC applications
  • Supplied toolbox includes more than 100 pre-defined functions including HVAC, Comparators, Logic, Math, Time, Input/Output, among others, to simplify programming and reduce programming time
  • Create your own standard code libraries and toolboxes from previously used code or code sections to save programming time
  • Features a step-by-step Configuration Assistant to facilitate custom programming, simplifying onsite installation and commissioning
  • Supports large deployments with multiple device code download
  • Easily troubleshoot your application in real-time through live-debugging and a Watch List to monitor specific process variables and detect errors as they occur
  • Codes and projects created for ECL LONWORKS, ECB BACnet or ECLYPSE Series controllers can be “ported” or “converted” to be re-used on all your projects, regardless of protocol or product series.
Read More
Read Less
Brand Distech Controls
Product Type Software and Apps
Subcategory Software
Sales Regions US, OC, ME, EU, CSA, CA, AS
