vandal resistant

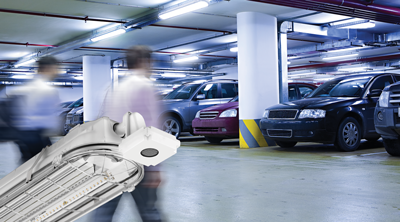

Added energy savings & customer comfort with controls
VAP LED is IP66 rated for wet location and durability

VAP LED

Architectural Vandal-Resistant LED Linear Luminaire

By Lithonia Lighting

    DLC StandardCA Title 20Buy America(n) Option Available
  • Overview
  • Specifications
The VAP LED, sometimes referred to as the Archway™ Passage™, is the only polycarbonate (strong and lightweight), vandal-resistant linear fixture in the marketplace with a refined appearance, wet location listed and up to 129 LPW.

Vandal and impact resistant, the VAP LED is ideal for use in applications where smart, energy-efficient fixtures are desired. Typical industrial lighting applications include parking garages, mass transit, under-canopy, schools and exterior retail environments where moisture or dust is a concern. The polycarbonate enclosure protects the fixture while remaining easy to service and clean.

Read More
Read Less
Shape Rectangular
Light Source LED - Static
Lumens 4000 LM, 6000 LM, 8000 LM, 12,000 LM, 15,000 LM
CCT / LED Color 3000 K, 3500 K, 4000 K, 5000 K
CRI 80, 90
Product Type Linear
Compliance Listing BAA, CA Title 20, DLC Standard
Environmental Listing NSF
Regulatory Listing CSA
Dimming Protocol 0-10V
Fixture Wattage 48
Voltage Rating 120, 120-277, 208, 220, 230, 240, 277, 347, 347-480, 480
Color Clear
Mounting Type Surface, Suspended
Series VAP

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET Polycarbonate housing and lens – LED Polycarbonate housing and lens – LED 11/17/2022 View
    Design Select

    Need to Create a Submittal Spec Sheet? Take Me There

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions U2131602-VAP-LED Installation Instructions View

  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1: Enter the Zip Code or Select the State and Utility

    Step 2: Ensure that the correct Product Category is selected if there is more than one option


  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Part Spec Sheet VAP Replacement Parts_12.17.19.pdf VAP LED replacements parts 6/24/2021 View

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures LL_807550_Industrial Portfolio Refresh_0621_Interactive.pdf Lithonia Lighting Industrial Portfolio 8/30/2021 View
    Sell Sheet VAP-LED-SellSheet.pdf VAP LED Vandal-Resistant, Vapor-Tight, Linear Fixture View
