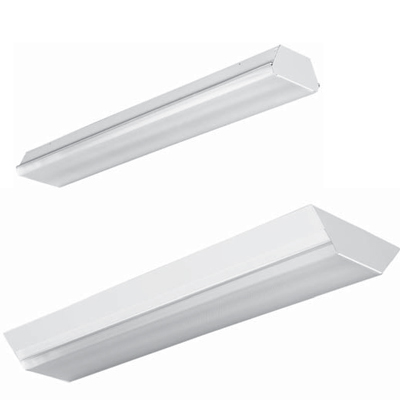

MVS

wraparound

By Lithonia Lighting

  • Overview
  • Specifications

The MVS wraparounds are designed to produce maximum efficiency general lighting for institutional, industrial and retail environments. The MVS can be used wherever an economical, high-performance wraparound is beneficial. Certain airborne contaminants can diminish integrity of acrylic. Refer to Acrylic Environmental Compatibility table for suitable uses.


Construction

Available in 4' and 8' nominal lengths.

Housing is manufactured from code-gauge, cold-rolled steel, painted before fabrication with a gloss white baked enamel finish that utilizes a five-stage pretreatment system, providing a total reflectance of 88%. Optional white polyester powder coat finish with a total reflectance greater than 93% utilizing our seven-stage pretreatment system to provide maximum reflectance, adhesion and corrosion resistance may be specified by adding "PAF" to the catalog nomenclature. Natural galvanized steel or custom color powder coat finishes also are available.

Optics

Reflectors are precision-formed, high-performance, specular segmented optics utilizing Miro® 4 aluminum with 95% total reflectance, and a 25-year Alanod or precision-formed white polyester powder coat finish with a total reflectance greater than 93% utilizing our seven-stage pretreatment system.

Clear extruded prismatic 50% DR acrylic lens.

Electrical

Lamps are secured with twist-lock lamp sockets, with rotating covers to provide positive lamp seating and support.

All standard ballasts are electronic, UL 935 listed, Class-P, type-1 outdoor, CSA certified where applicable, high power factor, non-PCB, sound rated A+ and <20% THD. Optional <10% THD and various ballast factors from 0.75 to 1.20 are available.

Installation

Luminaire can be surface- or pendant-mounted.

Read More
Read Less
Size 4FT, 8FT
Shape Rectangular
Light Source Fluorescent
Product Type Wraparound
Regulatory Listing UL
Dimming Protocol 0-10V, DALI, Electronic Low Voltage, Forward Phase 2W, Forward Phase 3W, Not Applicable
Fixture Wattage 28, 32, 54
Voltage Rating 120, 120-277, 277, 347, Not Applicable
Color White
Mounting Type Surface
Series MVSN4, MVSN8
