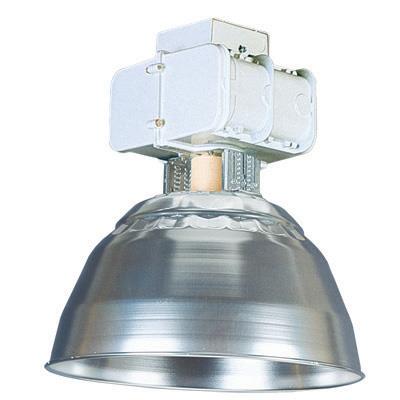

TH A16

Open Aluminum Optical

by Lithonia Lighting

Use in high mounting heights that require high efficiencies and horizontal illumination. Ideal for general manufacturing areas, storage areas and warehouse aisles where color is critical.


Construction

Housing: Heavy-duty, die-cast aluminum halves. Ballast and electrical components are heat-sinked and horizontally opposed for cooler operation. Integral splice box mounting flange ensures structural integrity. Electrostatically applied white polyester powder paint.

Optics

High-efficiency, anodized, spun aluminum reflector with exclusive fluted design that minimizes arc-tube voltage rise for optimal lamp life. Open A16 opticals are self cleaning with a ventilated design that carries contaminants out through top of reflector. Optical system is adjustable and accommodates the full range of light distributions.

Electrical

Ballast: All ballasts are 100% factory tested. HPS: Constant wattage autotransformer. MH: 250-450W fixtures shipped within the U.S. require super CWA pulse start ballasts which are 88% efficient and EISA-legislation compliant (must specify SCWA option). CSA, NOM or INTL options required for probe start shipments outside the U.S.

Socket: Vertically oriented mogul base protected exclusionary "PINK" socket with copper alloy, nickel-plated screw shell and center contact. For use with O-rated, protected metal halide lamps only.

Installation

Pendant splice box threaded for 3/4" conduit (standard). Pendant splice box, removable cast-aluminum box slides on integral die-cast aluminum housing mounting flange and mounts to 3/4" pendant conduit prior to ballast housing installation. Matching wire access cover accepts RELOC® modular wiring. Complete assembly meets or exceeds UL 50-pound pull test. Other mounting options available.

Optical mounting: Adjustable reflector mounting brackets are progressively die-formed of 18-gauge galvanized steel.

  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View Download
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View Download
  • Photometry & BIM

    Use %(percent) to separate search terms.<br >

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    • Request BIM Files

      Please be specific with your request and suggest adding a “need by date” if urgent request Note: your request will be routed to the BIM Design team. If escalation/questions is needed please email BIM@acuitybrands.com.
  • Specifications

    Brand Lithonia Lighting
    Color Silver
    Control Occupancy Sensor
    Correlated Color Temperature Not Applicable
    Environment Indoor
    Finish Unfinished
    Light Source HID - High Pressure Sodium, HID - Metal Halide, Not Applicable
    Listings CSA, Not Applicable, UL Damp Location
    Lumen Output Not Applicable
    Mounting Type Not Applicable
    Product Type Reflector, Reflector
    Series A16, TH
    Voltage Rating 120, 208, 240, 277, 347, 480, Not Applicable
