CB

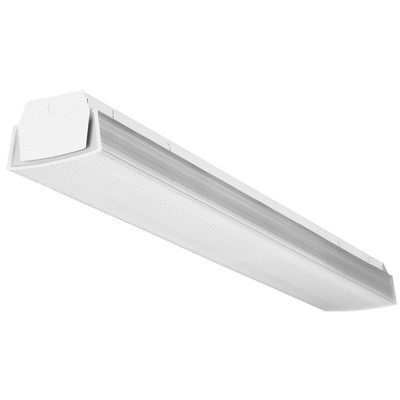

Corridor Curved-Basket Wraparounds

by Lithonia Lighting

For surface ceiling-mount applications requiring a narrow profile and decorative appearance. Ideal for corridors or spaces where medium light levels in a compact design are preferred.


Construction

Acrylic prismatic diffuser with sonic-welded, injection-molded, luminous ends. Matches LB Series in appearance.

White enamel end plates.

Linear side prisms control brightness; pyramidal bottom prisms minimize lamp image.

Continuous, interlocking-diffuser support prevents accidental opening and simplifies cleaning and service.

For surface or stem mounting, unit or row installation. Snap-in couplers permit row mounting without tools.

For unit mounting, two stems are required. For row installation, one stem accessory per fixture plus one per row required.

Electrical

Ballast disconnect provided standard where required to comply with U.S. and Canadian electrical codes.

  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Photometry & BIM

    Use %(percent) to separate search terms.<br >

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    • Request BIM Files

      Please be specific with your request and suggest adding a “need by date” if urgent request Note: your request will be routed to the BIM Design team. If escalation/questions is needed please email BIM@acuitybrands.com.
  • Specifications

    Brand Lithonia Lighting
    Color White
    Correlated Color Temperature Not Applicable
    Environment Indoor
    Finish Gloss
    Light Source Fluorescent
    Listings CSA, NOM
    Mounting Type Surface
    Product Type Wraparound
    Series CB, TCB
    Shape Rectangular
    Voltage Rating 347, MVOLT
