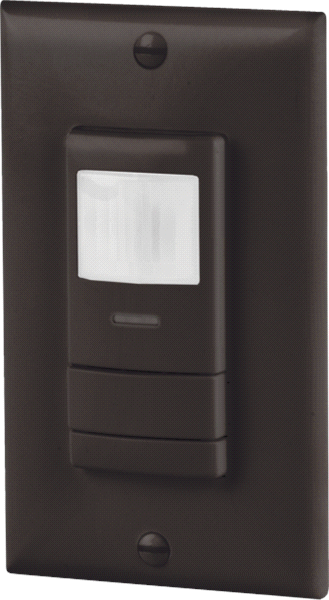

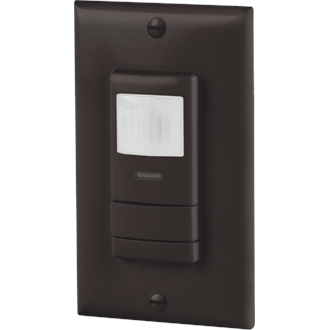

WSX
WSX

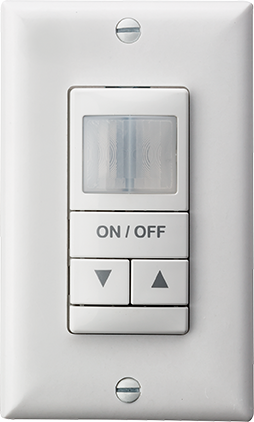

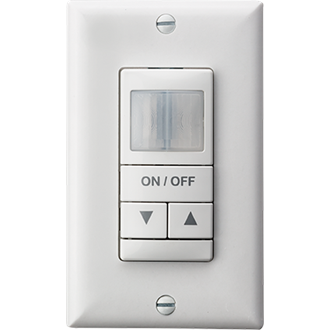

WSX D.png

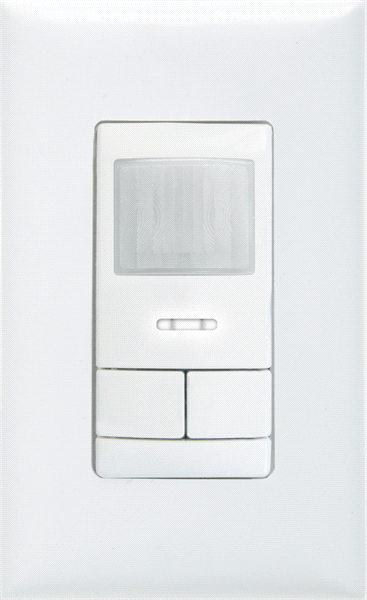

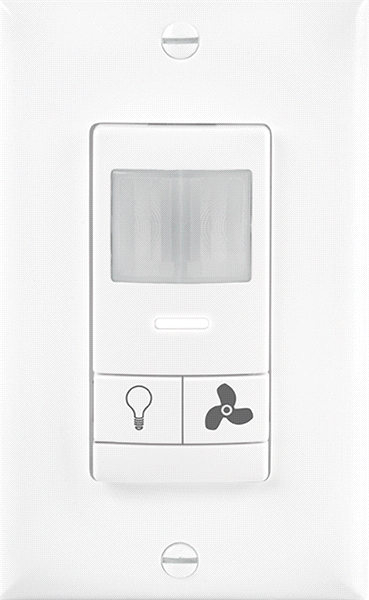

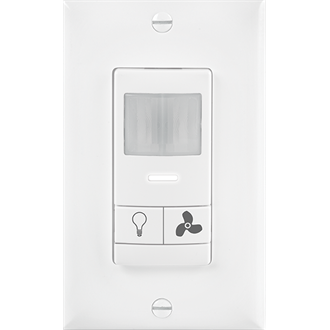

WSX 2P Light and Fan Buttons.png

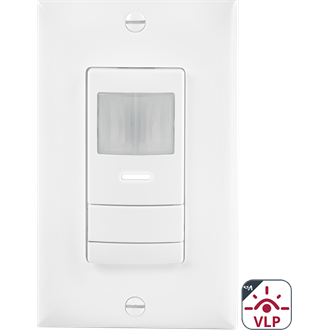

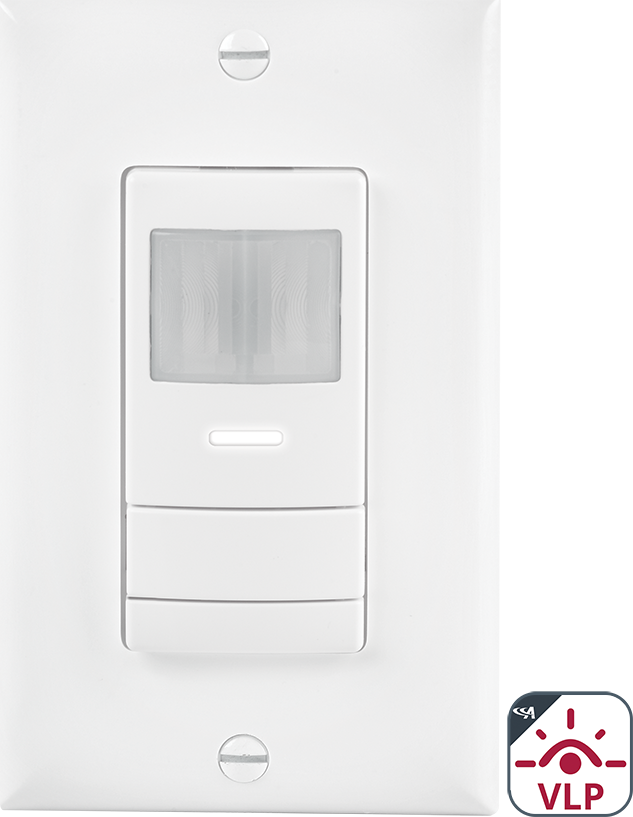

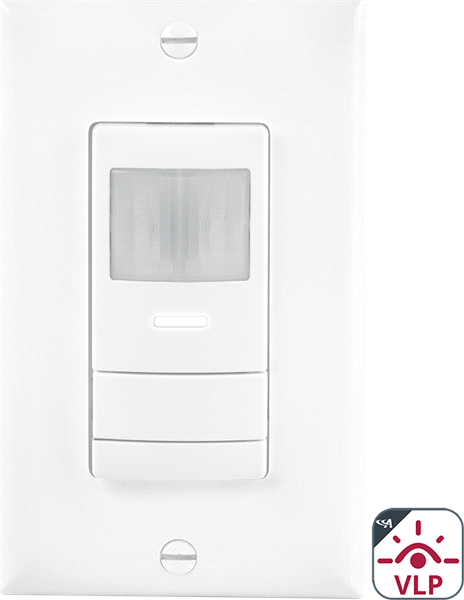

SensorSwitch VLP
WSX, 360 Image

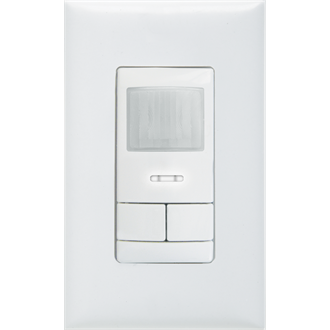

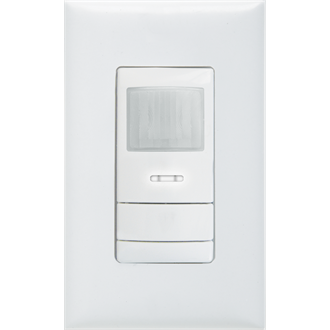

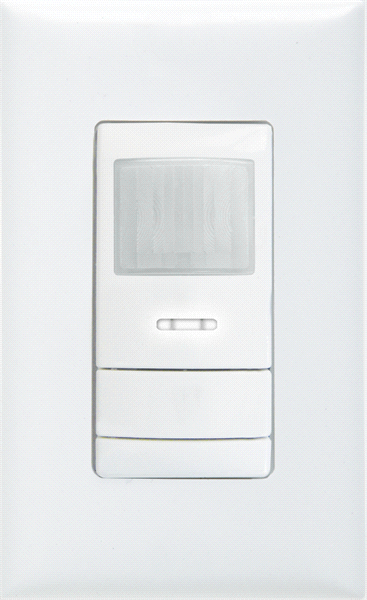

WSX Series

Wall Switch Sensor

By SensorSwitch

  • Overview
  • Specifications
The WSX family of wall switch occupancy sensors provide simple and cost-effective solutions for commercial and residential lighting control applications. With your choice of passive infrared (PIR) or dual technology (PDT) with PIR plus patented Microphonics™ detection, the WSX family provides reliable sensing and dimming performance optimized for your space.

All WSX family sensors have a modern low-profile appearance, soft-click buttons and small motion detection up to 20 feet (6.10 m), making them ideal for private offices, private restrooms, closets, copy rooms or any other small enclosed space.

Easy to install while helping to aid in energy code compliance, the WSX family has a patented wiring method that enables them to function with or without a neutral connection. WSX units come pre-configured for wiring without a neutral; however, if a connection to neutral is required by code, contractors can convert the unit in seconds.

WSX sensors are easy to program using the traditional push-button programming or the optional SensorSwitch VLP mobile app. Watch this video to learn how to configure your wall switch sensors using the VLP mobile app.
Read More
Read Less
Control Device Type Daylight Sensor, Occupancy Sensor, On/Off Switch
Mounting Type Semi-recessed, Surface
Control Protocol 0-10V
Product Type Sensor

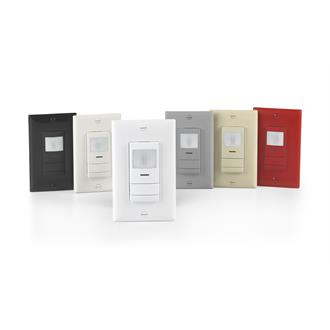

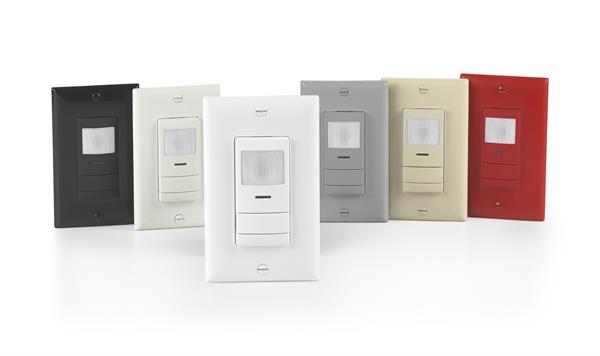

Color Black, Gray, Ivory, Light Almond, Red, White
Finish Gloss
Voltage Rating 347
Environmental Listing High Humidity
Regulatory Listing cUL, UL
Series WSX
Application Type Education, Government, Healthcare, Hospitality, House of Worship, Manufacturing, Offices & Banks, Retail, Sports and Recreation, Warehouses

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET WSX 2P FAN.pdf WSX 2P FAN Wall Switch Occupancy Sensor with Fan Control Spec Sheet 1/2/2020 View
    SPEC SHEET WSX D.pdf WSX D Wall Switch Occupancy Sensor with Dimming Spec Sheet 4/18/2022 View
    SPEC SHEET WSX Family WSX Family Wall Switch Occupancy Sensor with On/Off and daylighting Spec Sheet 3/8/2022 View
    Design Select

    Need to Create a Submittal Spec Sheet? Take Me There

  • Photometry & Revit (BIM)

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions WSX 2P WSX 2 Pole, Wall Switch Occupancy Sensor Installation Instructions 7/12/2022 View
    Installation Instructions WSX 2P Fan WSX 2P FAN Wall Switch Sensor with Occupancy Detection and Daylighting Installation Instructions 7/12/2022 View
    Installation Instructions WSX D Installation Instructions WSX D Wall Switch Sensor with Occupancy Detection and Daylighting Instruction Sheet 7/12/2022 View
    Installation Instructions WSX Family Wall Switch Sensor with Occupancy Detection and Daylighting Instruction Sheet 7/12/2022 View
    Technical Bulletins SensorSwitch VLP Mobile App Quick Start Guide SensorSwitch VLP Mobile App Quick Start Guide 10/13/2021 View
    Wiring Diagram Wall Switch Wiring Diagrams.pdf Wall Mount Wiring Diagrams View

  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    FAQ SensorSwitch VLP Mobile App FAQ SensorSwitch VLP Mobile App FAQ 10/13/2021 View
    FAQ WSX D_FAQ.pdf WSX D FAQ View
    Product Presentation Sensor Switch VLP Wall Switch Sensor Customer Presentation.pdf Sensor Switch VLP Wall Switch Sensor Customer Presentation View
    Sell Sheet Sensor Switch Quick Recommendation Guide Sensor Switch Quick Recommendation Guide 3/13/2023 View
    Sell Sheet WSX D Sell Sheet.pdf WSX D Sell Sheet 5/12/2021 View
