TL381L Trac Head

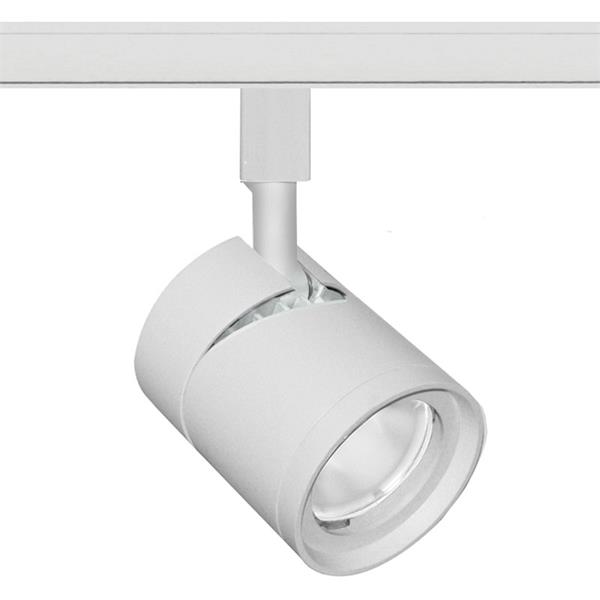

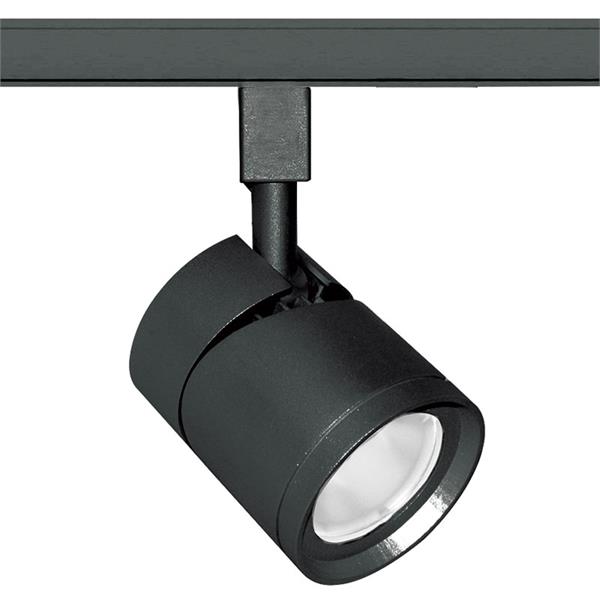

Trac 12™ Integral Driver LED Cylinder Spotlight Trac Head

By Juno

    Buy America(n) Option Available
  • Overview
  • Specifications
The classic appearance of the TL381L, Trac 12™ LED Cylinder fixture offers a fresh take on the traditional aesthetic. This 13W LED Cylinder spotlight approximates the light output and distribution of 75W MR16 halogen lamps, using less than one-fifth the energy and has a rated life of 50,000-hours. Available in 4 color temperatures and 80 or 90 CRI versions, the white-light LED Cylinder is compatible with standard Trac 12 trac, operating with 12-volt AC power.  The TL381L can be placed anywhere along the trac, and the trac can be cut to length during installation.
High performance LED array provides outstanding reliability, performance and color quality/consistency, chromaticity range within a 2-step MacAdam Ellipse 2700K, 3000K, 3500K and 4000K CCT's offer 80 CRI standard and 90 CRI versions (2700K & 3000K All metal housing provides outstanding thermal management of LED, yielding 70 percent minimum lumen maintenance at 50,000-hours of operation Driver concealed in rear of fixture housing to minimize overall fixture footprint Precision designed custom TIR optical system available in either spot, narrow flood or flood beam distributions An integral, bayonet-mount accessory holder enables quick conversion between beam spreads. Accommodates one accessory if desired Multiple transformers/drivers offer compatibility with various Juno trac systems and monopoints; dimmable with factory-approved dimmers 360-degree horizontal coverage, greater than 90-degree vertical aiming capability Available in white, black or silver finishes UL, cUL Listed
Read More
Read Less
Light Source LED - Static
Lumens 850 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K
CRI 80, 90
Product Type Track Head
Compliance Listing BAA
Color Black, Silver, White
Mounting Type Track/Monopoint
Voltage Rating 012
Fixture Wattage 13
Track Mounting Adapter Trac 12
Series TL381L

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET D3_2_18.pdf TL381L Juno Trac 12 Integral Driver LED Cylinder Spotlight 12_Volt AC 3/29/2022 View
