TCLFM11 End Feed

Trac-Master® Current Limiting Mini End Feed, 1-Circuit

By Juno

    CA Title 24/JA8Buy America(n) Option Available
  • Overview
  • Specifications

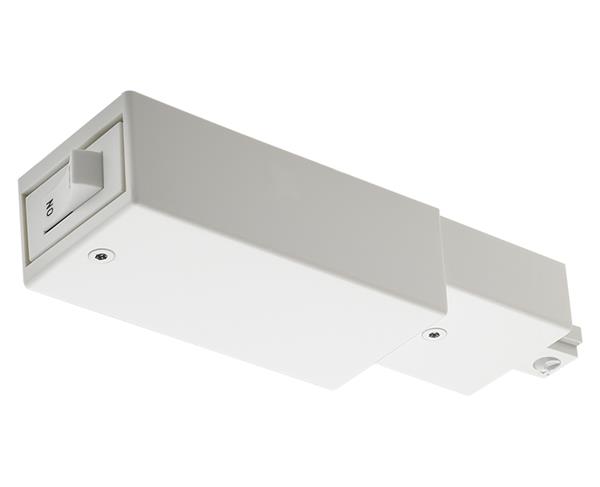

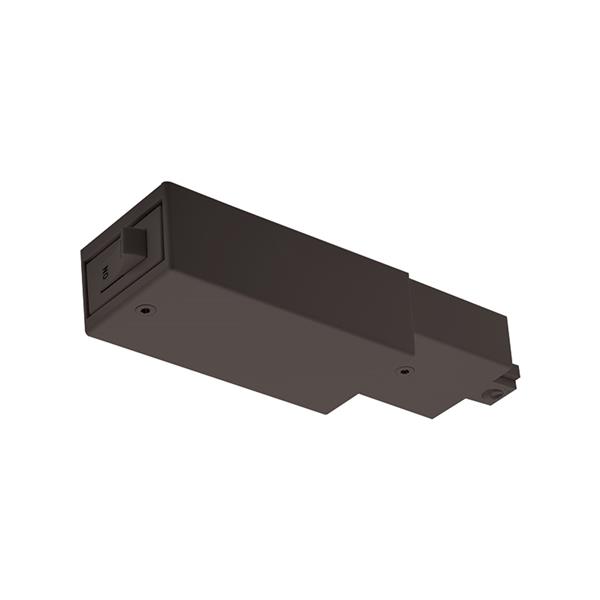

Juno® Trac-Master® TCLFM11 current limiting mini end feeds provide a simple solution for complying with today’s stringent energy codes. Installed at every trac feed location, they utilize supplementary current limiting circuit breakers (ordered separately) that limit the available wattage to only that required by the actual lighting design criteria. Trac lighting density and performance can be optimized with energy-efficient fixtures, and configuration flexibility can be retained, without exceeding code-mandated power utilization limits and incurring watts-per-linear-foot penalties.  Reverse polarity TCLFMR11 current limiting end feed is designed for use in opposite orientation compared to standard feed connectors.
Current limiting mini end feeds are used in conjunction with supplementary current limiting circuit breakers, which are specified and ordered separately Not intended to be used as a primary circuit protector; single-circuit trac compatibility only Heavy-duty, 16 gauge, die-formed galvanized steel mounting plate; slides into trac channel to prevent sagging in suspended applications Surface mounting only – not intended to be installed over a j-box; T-bar compatible only when installed off-grid and fed directly One 7/8-inch knockout for direct electrical feed connections; includes ground terminal attachment screw Injection-molded polycarbonate cover attaches to mounting plate using tamper-resistant screws; mini end feed connector attached to trac with one-way screw Available in white, black, or silver finishes UL/cUL Listed
Read More
Read Less
Product Type Feed
Compliance Listing BAA, JA8
Color Black, Silver, White
Voltage Rating 120, 120-277
Series TCLFM11
  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET T_TU_CL Feeds_D1.15.1.pdf Trac-Master Current Limiting Feeds for T Series and TU Series Trac Systems 3/1/2022 View
