JCLR8S Downlight Retrofit Kit

LED 7.8125 - 8.3125in Commercial Retrofit Kit

By Juno

    Energy Star®
  • Overview
  • Specifications

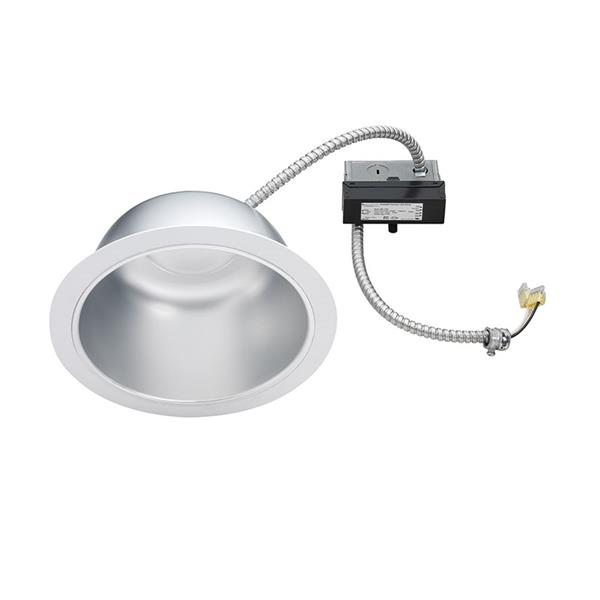

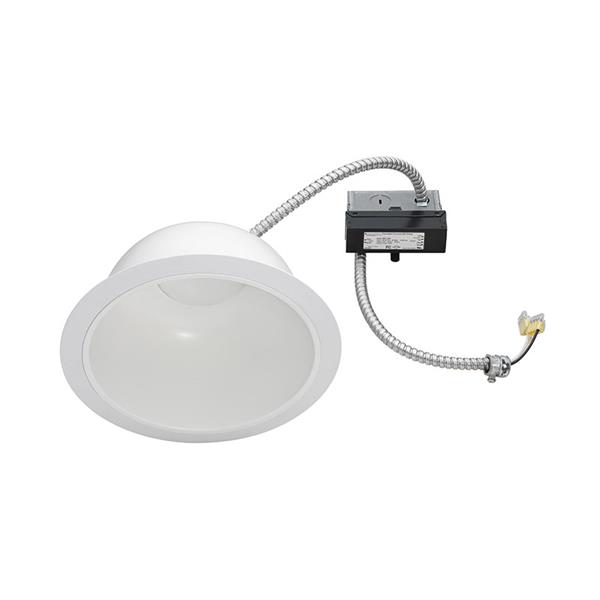

Juno® Commercial LED Retrofit Trim assemblies are the ideal way to upgrade existing incandescent, CFL and HID commercial housings to high-performance LED. The all-in-one design features an advanced LED light engine mounted directly to the spun aluminum trim with regressed diffusing lens in white or haze finish. Installation is fast and simple with the unique quick disconnect feature from the junction box. They deliver up to 2400 lumens from just 27.5 watts, offering light output comparable to 42-watt CFL.
Read More
Read Less
Size 8 IN
Shape Round
Light Source LED - Static
Lumens 1500 LM, 1800 LM, 2000 LM, 2400 LM
CRI 80, 90
Product Type Retrofit Kit
Compliance Listing ENERGY STAR®
Environmental Listing Damp Location
Regulatory Listing cUL, UL
Dimming Protocol 0-10V, Forward Phase, Reverse Phase
Trim Style Cone, Open
Color White
Mounting Type Recessed
Voltage Rating 120, 120-277, 347
Fixture Wattage 27.9
Series JCLR8S

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET JCLR8L & JCLR8S G1_8_39.pdf 8" Commercial LED Retrofit 10/21/2021 View
    SPEC SHEET JUNOJCLR-DIM.pdf Juno JCLR6 and JCLR8 Retrofit Trim Series Dimmer Compatibility View
