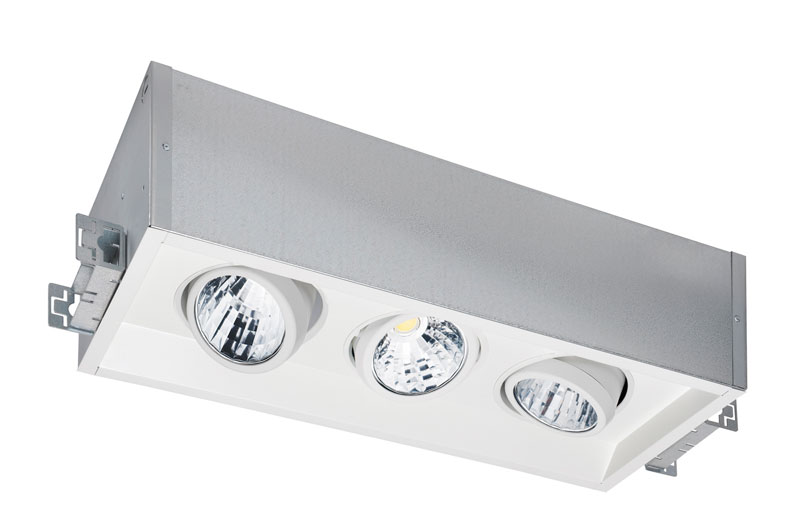

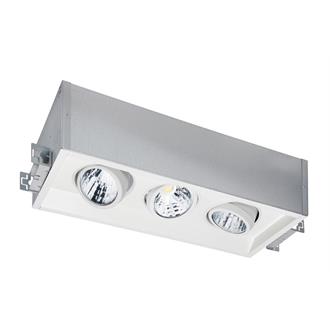

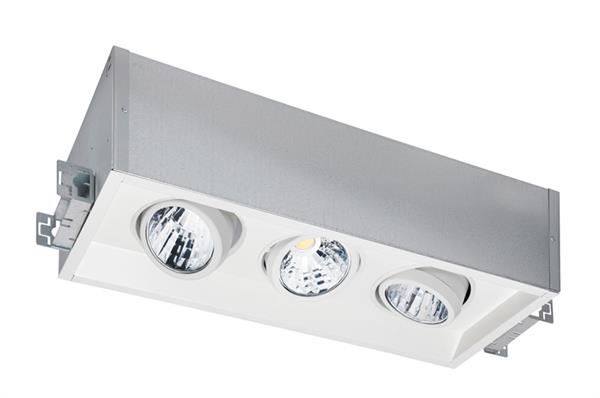

MSS30 Recessed Multiple

LED Recessed Adjustable 1000-3000LM Single or Multi-Lamp Multi-Spot®

By Indy

    Energy Star®Buy America(n) Option AvailableLow UGR
  • Overview
  • Specifications

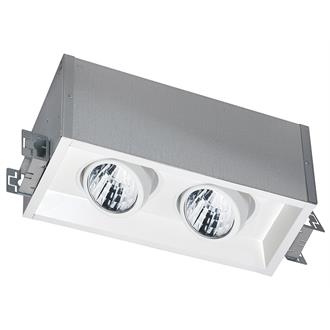

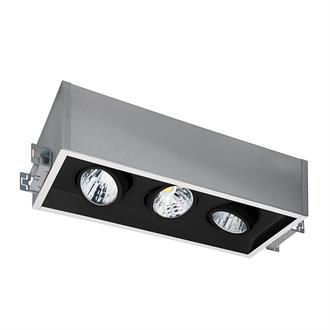

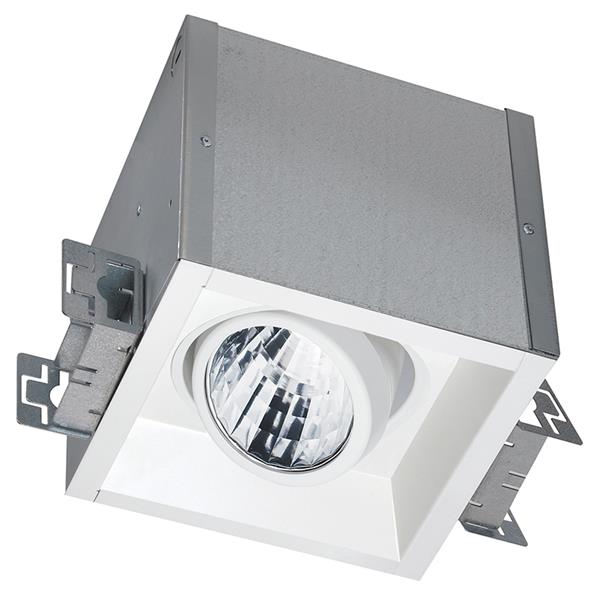

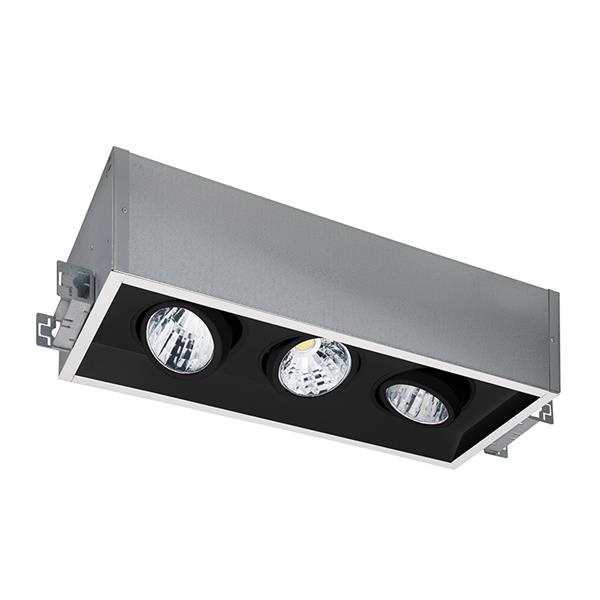

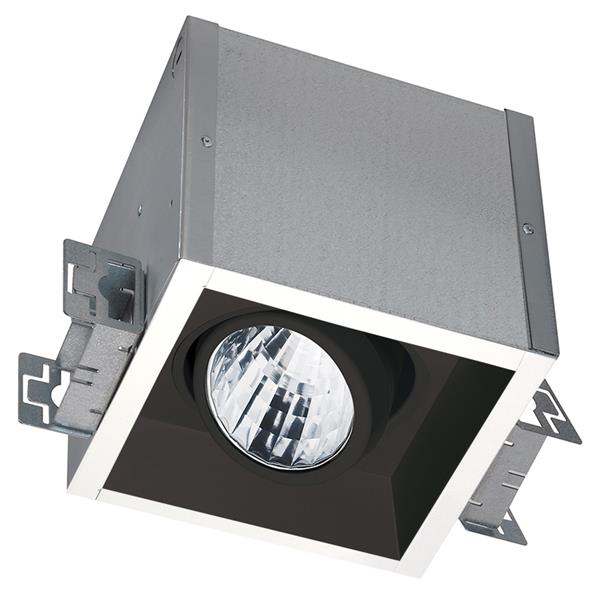

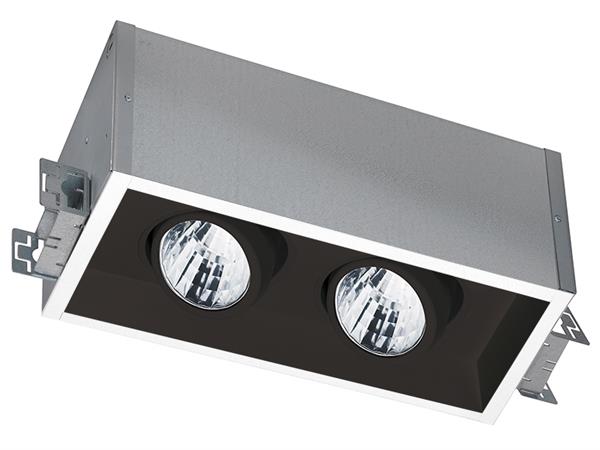

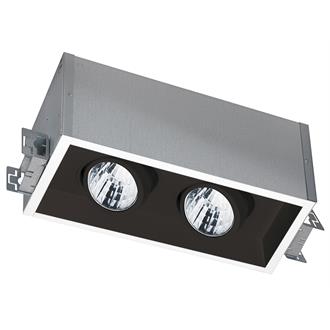

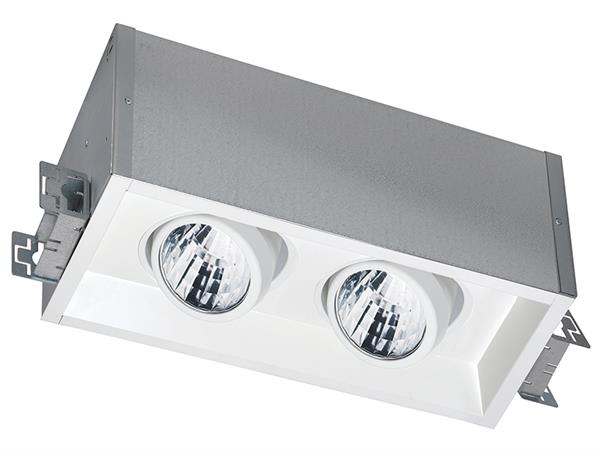

Indy™ Multi-Spot® multi-lamp adjustable LED fixtures offer exceptional energy & operational efficiencies. They feature 1, 2, or 3 LED luminaires, each producing 1000 lumens, approximating the output of 75W PAR30 halogen while using about 80-percent less energy. The 2000 & 3000 lumen version approximates 39W PAR30 and 70WT4 metal halide but uses significantly less energy. With a service life of 50,000 hours, LEDs can provide 10 or more years of maintenance-free operation in typical installations. Multi-Spot fixtures feature an attractive closed-pan trim & integral luminaire snoots for improved shielding.
Read More
Read Less
Shape Rectangular
Light Source LED - Static
Lumens 1000 LM, 2000 LM, 3000 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K
CRI 80, 90, 97
Product Type Housing
Compliance Listing BAA, Chicago Plenum, ENERGY STAR®, Low UGR, ROHS
Environmental Listing Damp Location, Dry Location, Non-IC
Regulatory Listing cUL, UL
Dimming Protocol 0-10V, DALI
Fixture Wattage 100, 101, 103, 107, 12.6, 12.8, 12.9, 13.6, 13.9, 14.9, 15, 23.3, 23.6, 23.7, 24, 24.1, 24.2, 24.6, 25, 25.1, 25.3, 25.7, 25.8, 26.2, 27.7, 27.9, 33.7, 33.9, 34.4, 34.6, 34.8, 35.2, 35.8, 36.5, 36.7, 37, 37.8, 40.6, 40.9, 46, 46.2, 46.4, 47.5, 48, 48.1, 48.3, 48.6, 50, 65, 67, 68, 69, 70, 71, 72, 75, 97, 99
Voltage Rating 120, 277, 347
Color Black, White
Mounting Type Recessed
Series MSS30

Read More Read Less

  • Suggested Replacement Products


  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET MSS30_1000_2000_3000 LM_J6_1_26G3.pdf Specification Sheet - MSS30 Series 9/14/2023 View

    Design Select

    Need to Create a Submittal Spec Sheet? Take Me There

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Dimming Compatibility LED-DIM.pdf LED Dimmer Compatibility Sheet 9/5/2019 View
    Installation Instructions 065-1022.pdf MSS16/MSS30/DCS30 Recessed Fixtures in Grid Ceilings 12/5/2019 View
    Installation Instructions 065-988.pdf MS30/MS38/MSS30/MSS16 - Multi-Spot Install from Below 12/5/2019 View
  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1Enter the Zip Code or Select the State and Utility

    Step 2Ensure that the correct Product Category is selected if there is more than one option
  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures Indy Multi-Head LED Brochure Designer Cove and Multi-Spot Brochure 4/29/2022 View
