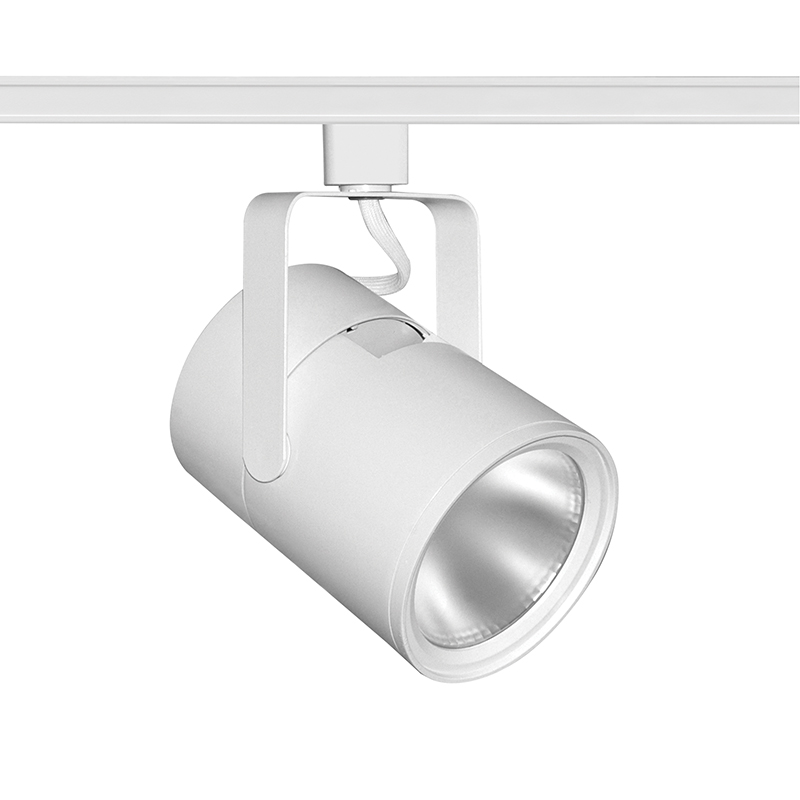

T283L Trac Head

Trac-Master® Flat Back Cylinder LED Trac Head

By Juno

    Energy Star®  DLC Standard / Premium  Buy America(n)
  • Overview
  • Specifications
The T283L Series is designed with a unique, patented, precision optical system which produces uniform spot, narrow flood or flood distributions. The 26W T283L Series can deliver up to 2664 lumens, utilizing less than 1/3 of the energy of halogen equivalents and having a rated life of 50,000-hours. It is available in 2700K, 3000K, 3500K and 4000K color temperatures and 80 or 90 CRI versions. Optional SpectralWhite color/white enhancing versions offer CRI and Color Quality Scale (CQS) scores of 90+, rendering colors richly and making whites appear naturally brilliant.
Read More
Read Less
Light Source LED - Static
Lumens 2400 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K
CRI 80, 90, 90 SpectralWhite
Product Type Track Head
Compliance Listing BAA, DLC Standard, ENERGY STAR®
Dimming Protocol Forward Phase, Reverse Phase

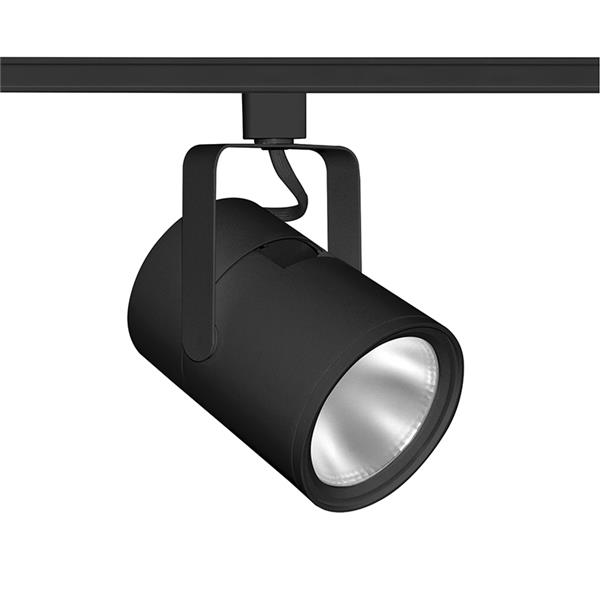

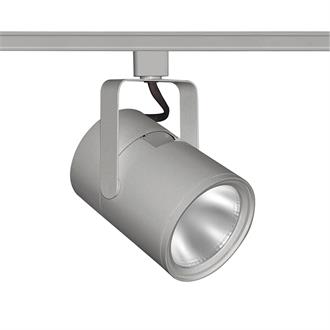

Color Black, Silver, White
Mounting Type Track/Monopoint
Voltage Rating 120
Fixture Wattage 26
Track Mounting Adapter GTYPE, HTYPE, JTYPE, LTYPE
Series T283L

Read More Read Less
