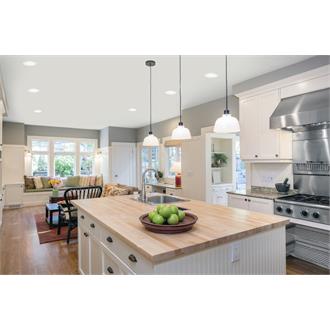

6RLD G4 WWH_Kitchen
6RLD G4 WWH_Living Room_002.jpeg
Retrofit Installation Video

5RLD Trim

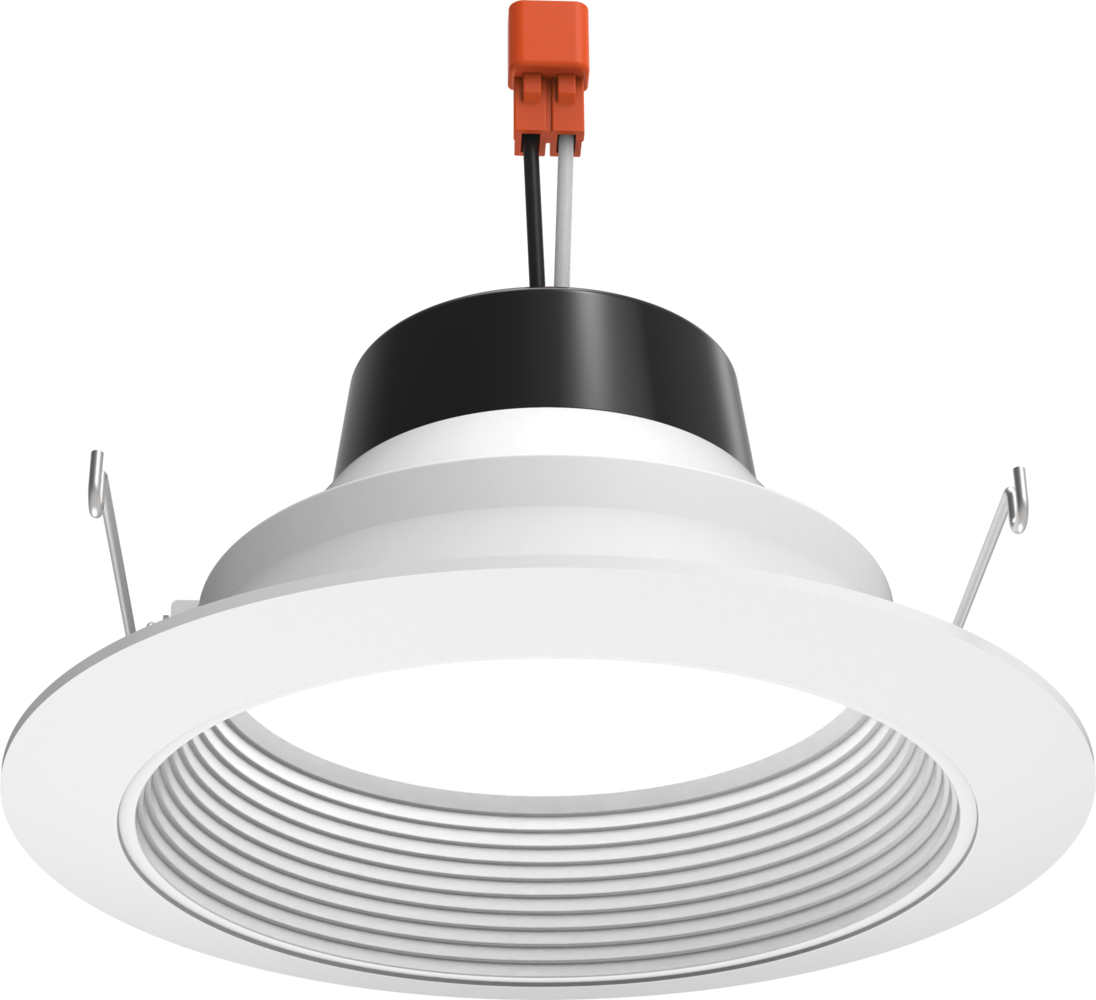

LED Wet Location 5in Round Baffle Retrofit Downlight

By Juno

    Energy Star®CA Title 24/JA8CA Title 20
  • Overview
  • Specifications
With the Juno RLD Series 5RLD 5-inch LED retrofit trim modules, upgrading your existing 5-inch medium base recessed lighting fixture is economical and is as simple as replacing an incandescent lamp and can provide energy savings as much as 85%. Pair the 5RLD with the Juno IC20 LEDT24 for a low cost LED new construction downlight solution.
The 5RLD retrofit trim module offers a more refined look from ordinary LED retrofits by offering dedicated trims sizes for true aperture aesthetics. The dedicated 5” trim provides the best balance of fixture illumination and the overall size of the trim flange. Combine that with the durable die-cast aluminum all-in-one design with knife edge trim detail, deep source regression and crisp baffle grooves that minimizes glare and you get the best overall trim aesthetic when installed in the ceiling.
Offered in a 700 (8W) lumen package and available in either 2700K or 3000K color temperatures with 90+ CRI for superior light quality and consistency. Dimmable to 5% with many incandescent, magnetic low voltage or electronic low voltage box dimmers. Wet location listed, ENERGY STAR® certified and be used to comply with Title 24, JA8 high efficacy light source requirements and California T20. 5 Year limited warranty.
Read More
Read Less
Size 5 IN
Shape Round
Light Source LED - Static
Lumens 700 LM
CCT / LED Color 2700 K, 3000 K
CRI 90
Product Type Trim
Compliance Listing CA Title 20, CA Title 24, ENERGY STAR®, JA8
Environmental Listing Air Loc, Wet Location
Regulatory Listing cULus Classified
Dimming Protocol Forward Phase, Reverse Phase
Trim Style Baffle
Color White
Mounting Type Recessed
Voltage Rating 120
Fixture Wattage 8
Series 5RLD

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET 5RLD G4.pdf 5" Juno Retrofit Downlight, G4 700 Lumens 10/25/2022 View
    SPEC SHEET JUNORETROBASICS-DIM.pdf Juno Retrofit Series Dimmer Compatibility View
    SPEC SHEET JUNORLDSERIES-DIM.pdf Juno RLD Series Dimmer Compatibility 7/21/2021 View
    SPEC SHEET DISCONTINUED 5RLD G3 07LM G1_8_68.pdf (Discontinued) DISCONTINUED Juno 5"Retrofit Downlight, 700L 12/29/2021 View
    SPEC SHEET DISCONTINUED 5RLD G3 09LM G1_8_69.pdf (Discontinued) DISCONTINUED Juno 5" Retrofit Downlight, G3 900L 12/29/2021 View
