4" Internally Adjustable New Construction Housing
4" Internally Adjustable LED Fixture - Product Pro

IC4RAL 700LM Remodel Housing

LED 4in Round Internally Adjustable Remodel Housing

By Juno

    Energy Star®  CA Title 24/JA8
  • Overview
  • Specifications

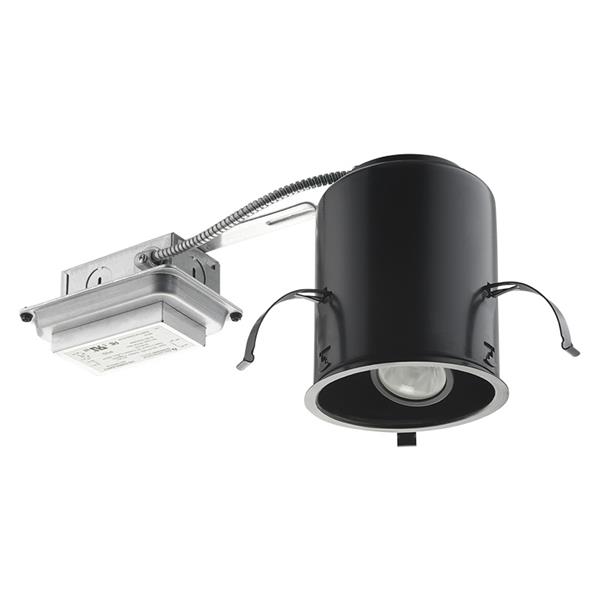

Juno® 4-inch internally adjustable, 700 lumen LED, IC-rated remodel housings cater to a wide range of application possibilities with just a change out of trims. Offering internal adjustability of up to 35° vertical and 360° rotation using the patent pending adjustable light engine modules, light can be directed where needed for downlighting or accent lighting applications. A stunning collection of round and square trims, including downlights, adjustables and lensed along with industry exclusive sloped ceiling trims are easily changed out in the field to adapt to future design needs.
Read More
Read Less
Size 4 IN
Shape Round
Light Source LED - Static
Lumens 700 LM, 800 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K
CRI 90
Product Type Housing
Compliance Listing CA Title 24, ENERGY STAR®, JA8
Environmental Listing Damp Location, IC
Regulatory Listing cUL, UL
Dimming Protocol 0-10V, Forward Phase, Reverse Phase
Mounting Type Recessed
Voltage Rating 120, 120-277
Series IC4RAL

Read More Read Less

  • Suggested Replacement Products

Product Information

  • Spec Sheets

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.<br >

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1Enter the Zip Code or Select the State and Utility

    Step 2Ensure that the correct Product Category is selected if there is more than one option

  • Replacement Parts

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Confidential Documents

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Product Specific SKUs

  • Need Product Assistance? (e.g. How to Buy, Technical Support, Warranty)

    How to Buy

    Acuity Brands lighting and controls products are primarily sold through a network of agents and distributors across North America,
    as well as at more than 100 showroom or international locations and several online retailers.

    •  Find a Showroom or Agent


    Technical Support

    Acuity Brands is dedicated to providing outstanding technical support. Please click on the appropriate link below, or feel free to
    call us at 1.800.705.SERV (7378).

    •  FAQs

    •  Troubleshooting Information

    •  Contact Us (Lighting)

    •  Contact Us (Controls Services & Support)


    Warranty

    Please click on the appropriate link below to learn more about Acuity Brands terms & conditions and product warranty options.

    •  Review Terms & Conditions or Product Warranties

    •  Register a Recently Purchased Product

    •  File a Warranty Claim


Videos

4" Internally Adjustable New Construction Housing  video thumbnail

4" Internally Adjustable New Construction Housing

4" Internally Adjustable LED Fixture - Product Pro video thumbnail

4" Internally Adjustable LED Fixture - Product Pro

Compatible Products

  • Accessories
  • Lighting
LSPREAD Filter Accessory

Beam Control Linear Spread Lens

DGF Filter Accessory

Dichroic Glass Filter Accessory

CGF Filter Accessory

Colored Glass Filter Accessory

HCLBL Louver

Black Hexagonal Cell Louver

PRISM Filter Accessory

Prismatic Spread Lens

DCCF Filter Accessory

Dichroic Color Correction Filter Accessory

TIR2 Optic Accessory

Trac-Master® LED TIR Optic

UVF Filter Accessory

UV Optivex Filter

DIFF Filter Accessory

Diffusion Lens Filter Accessory

39 Trim

4in Round Wall Wash Lens Reflector Trim

41LSQ Trim

Wet Location 4in Square Adjustable Shower Trim

42LSQ Trim

4in Square Trim

45L Trim

4in Round Adjustable Slot Trim

47LSQ Trim

4in Square Adjustable Trim

41L Trim

Wet Location 4in Round Adjustable Shower Trim

47L Trim

4in Adjustable Angle Cut Cone Trim

46L Trim

4in Round Slope Ceiling Trim

48L Trim

4in Round Super Slope Ceiling Trim

42L Trim

4in Round Cone Trim
