Hyperbolic Silent Ceiling Reflector Trim - Install

IC22RLED 900LM Remodel Housing

LED 6in Round Remodel Housing

by Juno

  • ENERGY STAR®

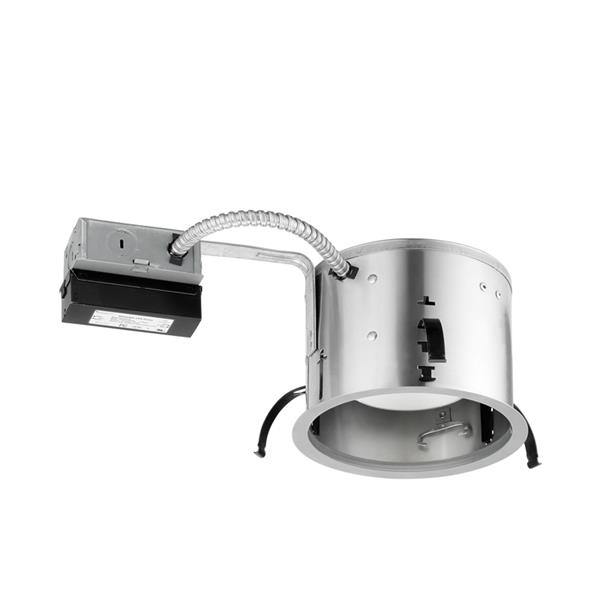

The Juno® IC22RLED 900LM 6-inch downlight features a dedicated LED, remodel housing with integral light engine for applications where the backside of the ceiling is not accessible. The LED housing is designed to provide 50,000 hours of life and is compatible with many standard Juno trims. Its shallow design allows for a fit in 2 x 6 construction. The fixture is secured in place by factory-installed remodel springs and can be completely covered with insulation. When used with supplied Air-Loc® Gasket (ALG) kit, the downlight stops infiltration and exfiltration of air, reducing heating and cooling costs.
  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Photometry & BIM

    Use %(percent) to separate search terms.<br >

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    • Request BIM Files

      Please be specific with your request and suggest adding a “need by date” if urgent request Note: your request will be routed to the BIM Design team. If escalation/questions is needed please email BIM@acuitybrands.com.
  • Specifications

    Size 6 IN
    Brand Juno
    Color Rendering Index 90
    Correlated Color Temperature 2700 K|3000 K|3500 K|4000 K
    Environment Indoor
    Light Source LED - Static
    Listings Air-Loc|CA Title 24|cUL|ENERGY STAR®|IC|JA8|UL|UL Damp Location
    Lumen Output 900 LM
    Product Type Housing
    Series IC22RLED
    Shape Round
    Voltage Rating 120|120-277
