Hyperbolic Silent Ceiling Reflector Trim - Install

IC20RLED 900LM Remodel Housing

LED 5in Round Remodel Housing

By Juno

    Energy Star®  CA Title 24/JA8
  • Overview
  • Specifications

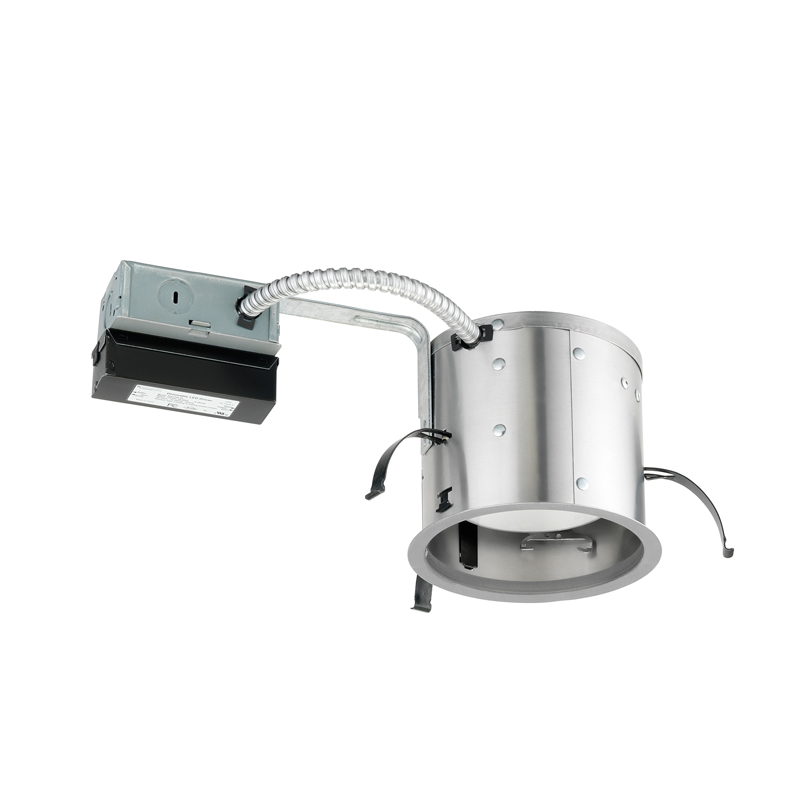

The Juno® IC20RLED 900LM 5-inch downlight features a dedicated LED, remodel housing with integral light engine for applications where the backside of the ceiling is not accessible. The LED housing is designed to provide 50,000-hours of life and is compatible with many standard Juno trims. Its shallow design allows for a fit in 2 x 6 construction. The fixture is secured in place by factory-installed remodel springs and can be completely covered with insulation. When used with supplied Air-Loc® Gasket (ALG) kit, the downlight stops infiltration and exfiltration of air, reducing heating and cooling costs.
Read More
Read Less
Size 5 IN
Shape Round
Light Source LED - Static
Lumens 800 LM, 900 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K
CRI 90
Product Type Housing
Compliance Listing CA Title 24, ENERGY STAR®, JA8
Environmental Listing Damp Location, IC
Regulatory Listing cUL, UL
Dimming Protocol 0-10V, Forward Phase, Reverse Phase
Mounting Type Recessed
Voltage Rating 120, 120-277
Fixture Wattage 11.5
Series IC20RLED

Read More Read Less

  • Suggested Replacement Products

Product Information

  • Spec Sheets

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.<br >

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1Enter the Zip Code or Select the State and Utility

    Step 2Ensure that the correct Product Category is selected if there is more than one option

  • Replacement Parts

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Confidential Documents

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Product Specific SKUs

  • Need Product Assistance? (e.g. How to Buy, Technical Support, Warranty)

    How to Buy

    Acuity Brands lighting and controls products are primarily sold through a network of agents and distributors across North America,
    as well as at more than 100 showroom or international locations and several online retailers.

    •  Find a Showroom or Agent


    Technical Support

    Acuity Brands is dedicated to providing outstanding technical support. Please click on the appropriate link below, or feel free to
    call us at 1.800.705.SERV (7378).

    •  FAQs

    •  Troubleshooting Information

    •  Contact Us (Lighting)

    •  Contact Us (Controls Services & Support)


    Warranty

    Please click on the appropriate link below to learn more about Acuity Brands terms & conditions and product warranty options.

    •  Review Terms & Conditions or Product Warranties

    •  Register a Recently Purchased Product

    •  File a Warranty Claim


Videos

Compatible Products

  • Fixtures
  • Accessories
204HYP3 Trim

LED 5in Round Cone Hyperbolic Reflector Trim

2130 Trim

Wet Location 5in Round Regressed Dome Baffle Trim

213G3 Trim

5in Round Scoop Baffle Wall Wash Trim

TR5 Trim Ring

5in Trim Ring

204 Trim

5in Round Cone Reflector Trim

205 Trim

5in Round Baffle Trim

212N Trim

Wet Location 5in Round Frosted Lens Clear Center Trim

210N Trim

Wet Location 5in Round Flat Glass Lensed Shower Trim

5101 Trim

Wet Location 5in Round Bevel Dome Reflector Trim

LEDOPTICG3 Optical Assembly

LED Optic Reflector Accessory
