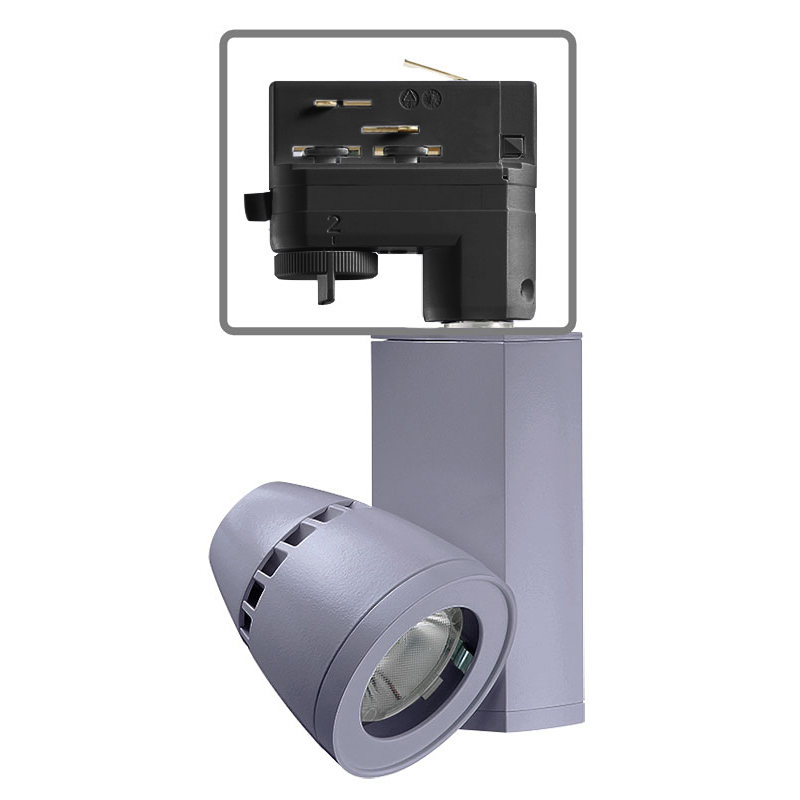

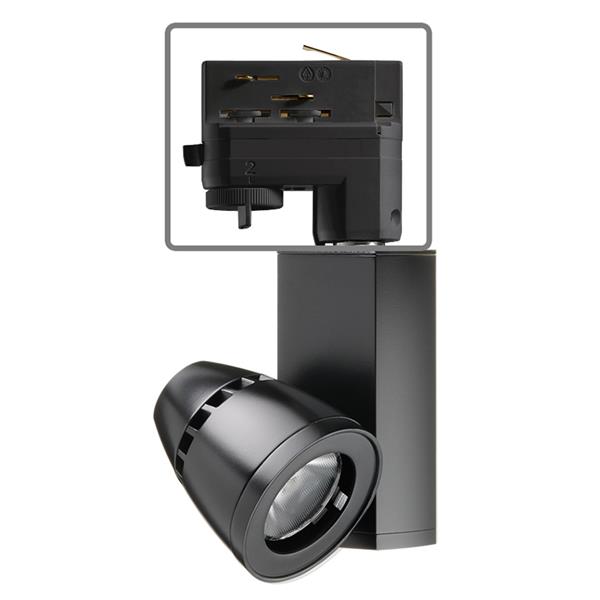

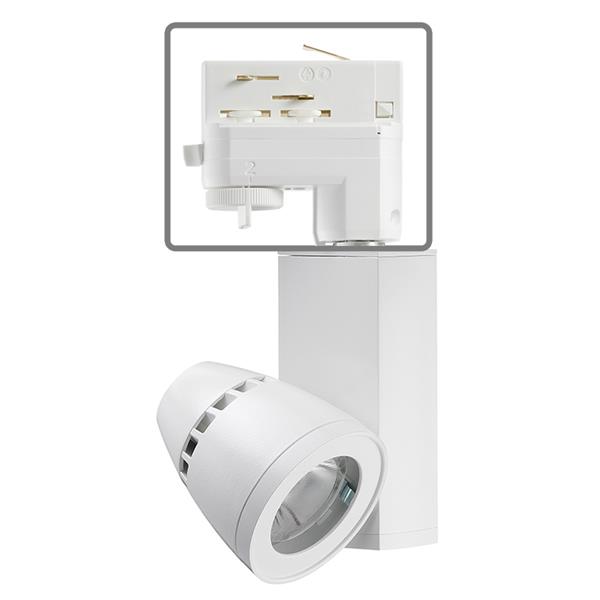

T261L HTEK Trac Head

Trac-Master® Conix® II LED Trac Head with HTEK Adapter

By Juno

    Buy America(n)
  • Overview
  • Specifications
The sleek, sculpted aesthetic of the Juno® T261L HTEK Conix® II LED fixture is unrivalled in the industry and offers a fresh, contemporary appeal. These Conix II LED fixtures feature integral TIR optics that offer uniform spot, narrow-flood, and flood distributions. Up to 1,132 lumens while consuming less than 1/3 of the energy of halogen equivalents. The passively cooled design has no moving parts to wear-out, ensuring that the 50,000-hour rated service life can be readily achieved. Installs on 277V Juno HD Commercial Trac system. Compatible with Juno standard adapter accessories.
Read More
Read Less
Light Source LED - Static
Lumens 1000 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K
CRI 80, 90, 90 SpectralWhite
Product Type Track Head
Compliance Listing BAA
Regulatory Listing C-UL-US, UL
Dimming Protocol Forward Phase, Reverse Phase
Color Black, Silver, White
Mounting Type Track/Monopoint
Voltage Rating 277
Fixture Wattage 11
Track Mounting Adapter HTEK
Series T261L

Read More Read Less
