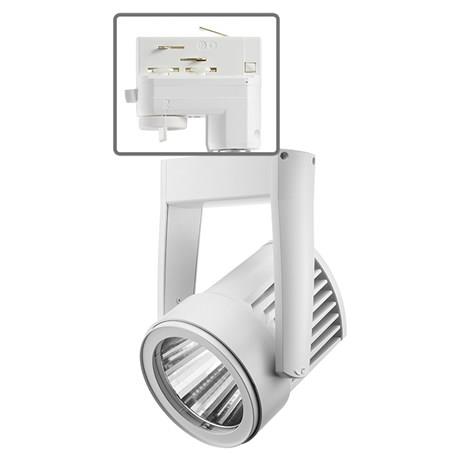

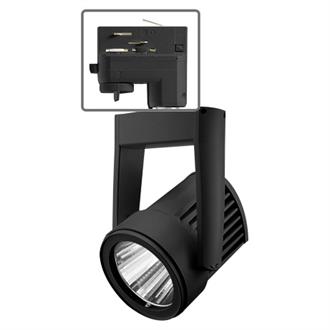

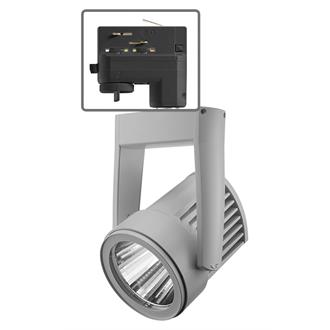

T255L HTEK Trac Head

Trac-Master® Cylindra™ LED Trac Head with HTEK Adapter

By Juno

    DLC Standard / PremiumBuy America(n)
  • Overview
  • Specifications
The T255L-Series, Cylindra™ LED trac fixture produces over 3,400 lumens from just 36W input. It approximates the light output and distribution of 70W PAR30L CMH lamps, but consumes a little over half the energy, and with a 50,000-hour rating, it lasts far longer and offers significantly better lumen maintenance over its life. Available in 4 color temperatures, T255L-Series Cylindra LED is compatible with the 277V Juno® HD Commercial Trac system.
Fashionable, elegant design complements any décor; delivers up to 3,400 lumens of brilliant white light 2700K, 3000K, 3500K, and 4000K white-phosphor, high-performance LEDs; 80 CRI minimum on standard product, optional high CRI offers 90 CRI minimum Die-cast aluminum housing provides outstanding thermal management, yielding 70-percent average lumen maintenance at 50,000-hours of operation LED driver assembled into heat dissipating aluminum housing that’s positioned above fixture housing to minimize overall footprint; Class 2 compliant Dimmable using high quality reverse phase dimmers approved by Juno Precision designed integral reflector provides either spot, narrow flood, or flood distributions 360-degree horizontal coverage, greater than 120-degree vertical aiming; integral, bayonet-mount accessory holder accommodates up to 2 accessories UL/cUL Listed
Read More
Read Less
Light Source LED - Static
Lumens 3500 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K
CRI 80, 90, 90 SpectralWhite
Product Type Track Head
Compliance Listing BAA, DLC Standard
Dimming Protocol Forward Phase, Reverse Phase
Color Black, Silver, White
Mounting Type Track/Monopoint
Voltage Rating 277
Fixture Wattage 46
Track Mounting Adapter HTEK
Series T255L

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET T255L_D1_3_46.pdf T255L G2 Trac-Master Cylindra 35W LED 6/9/2022 View
